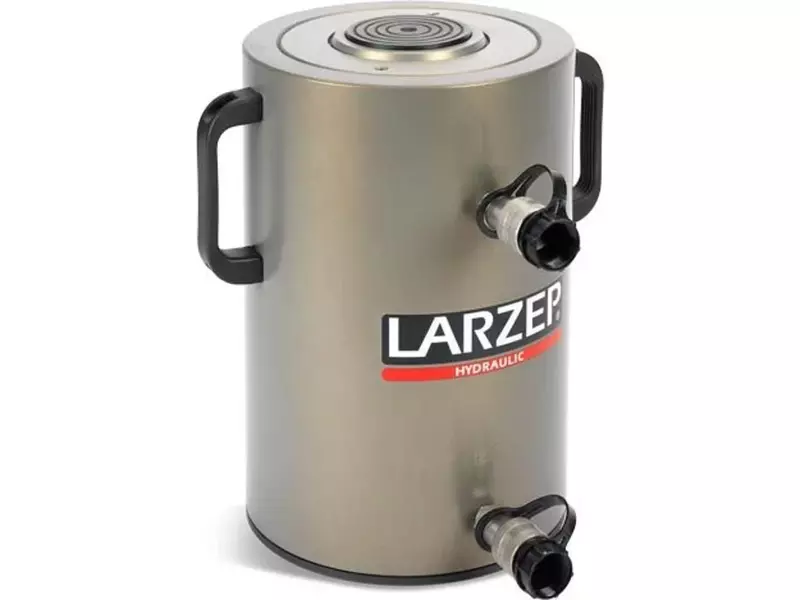

DDA-Series Double Acting Aluminium Hydraulic Cylinders are the lighter alternative to steel cylinders and deliver precision and control when retracting the plunger.
Capacity (metric tons)
Stroke (mm)
Product Details
Specifications
Product Details
Product Details
Made out of high strength aluminium alloy.
All aluminium parts are treated to improve resistance and extend working life.
Lightweight. Over 40% weight reduction when compared with steel equivalent.
Fitted with steel base plate and saddle for wear resistance.
Internal safety valve to prevent accidental over-pressure.
Not suitable for high cycle applications.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)50 - 100
- Stroke (mm)50 - 300
- Maximum Operating Pressure (bar)700
- Return TypeDouble Acting Hydraulic Return
- MaterialAluminium
- Weight (kg)8 - 31
