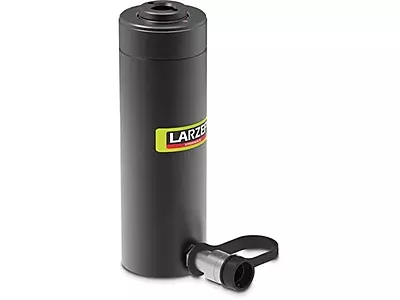

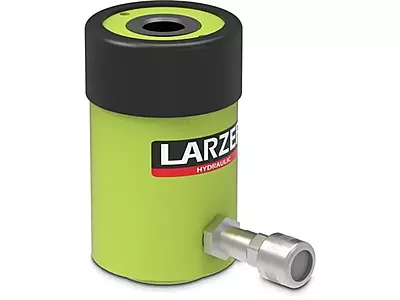

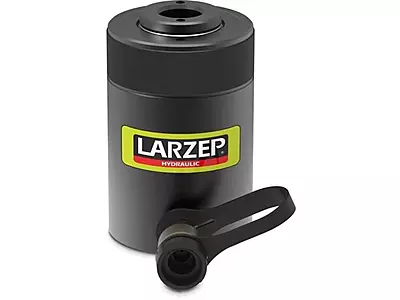

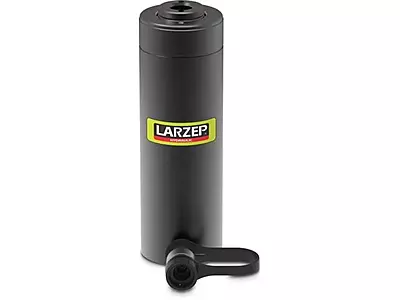

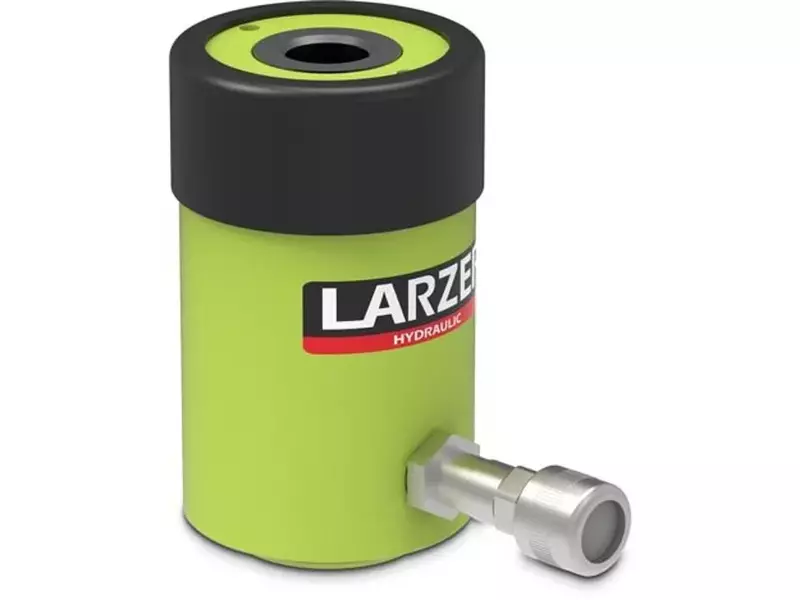

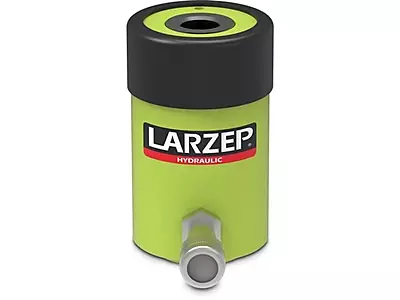

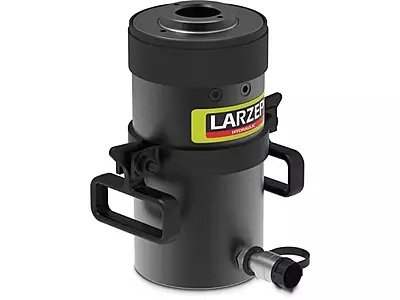

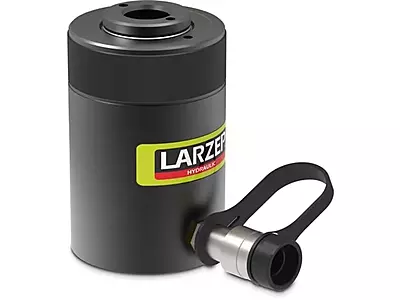

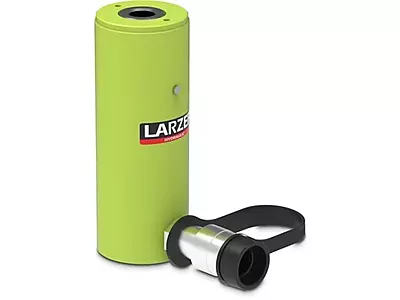

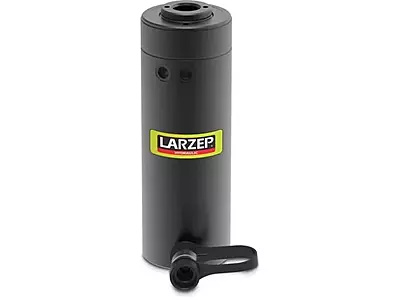

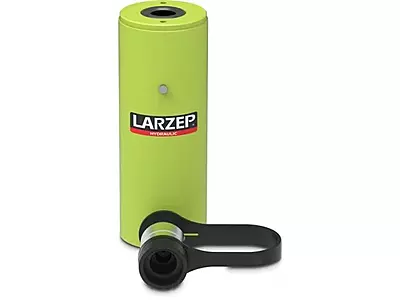

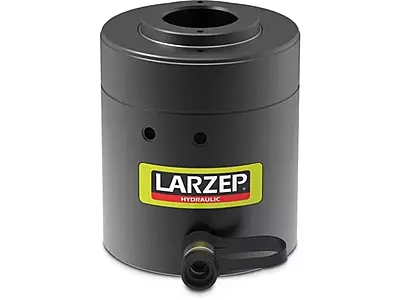

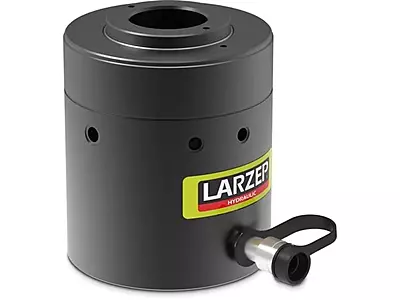

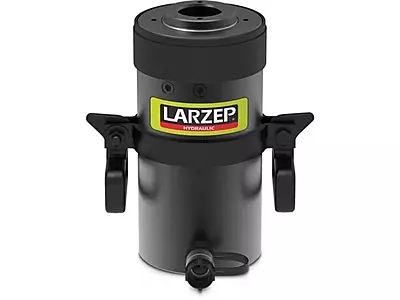

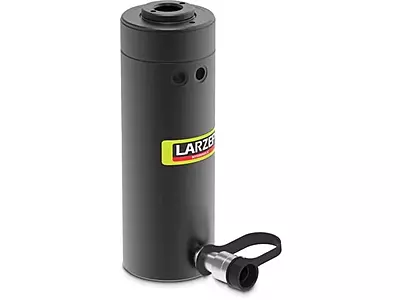

SH Single-Acting, Hollow Plunger Hydraulic Cylinders feature a hollow plunger for applying both pull and push forces. A threaded steel rod can be run through the hollow bore for tensioning cables and bolts, pulling sleeves and bearings.
Capacity (metric tons)
Stroke (mm)
Product Details
Specifications
Product Details
Product Details
Spring return, hollow piston.
For push and pull applications: Tensioning cables and bolts, pulling sleeves and bearings.
Hollow hard chrome-plated piston.
Collar threads, piston end thread and base holes for easy fixing.
Compatible with our complete puller range.
Hollow plain saddle as standard.
Optional solid or threaded saddles available.
Hollow cylinders also available in double acting DH and aluminium single and double acting SAH and DAH.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)12 - 100
- Stroke (mm)40 - 150
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Spring Return
- MaterialSteel
- Weight (kg)4 - 58
