Efficient and safe solution to dismount all kinds of transmission parts.
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details
- Double acting cylinder for holding, opening and closing the jaws for safe and secure grip on job.
- The easy jaw operating system prevent puller jaws from sliding and/or springing off the work object always.
- Self-centering design keeps the arms slide inwards or outwards simultaneously.
- Electric Pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
- 50 Ton Cylinder is single-acting, spring return type with a maximum working pressure of 10,000 psi.

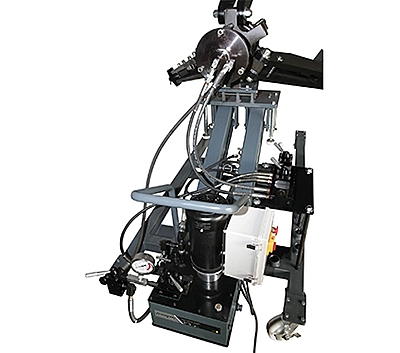

- Electric Hydraulic pump is two stage version ; the low pressure stage provides the fast stroking to save time ; the high pressure stage is controlled by remote hand switch.
- Puller can be adjusted 5 degree vertically.

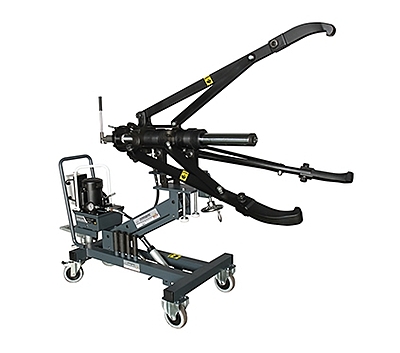

- The cart has two swivel castors which can provide the movement of cart easily.
- Four extensions are included for the needs on extra stroke.
- PRE50T is designed as the competitive version for costwise option.
Specifications
Specifications
Hydraulic Pullers
- Capacity ( Ton )50 - 150
- Max. Spread ( mm )300 - 1650
- Max. Reach ( mm )970 - 1175
- Weight ( kg )140 - 1223
