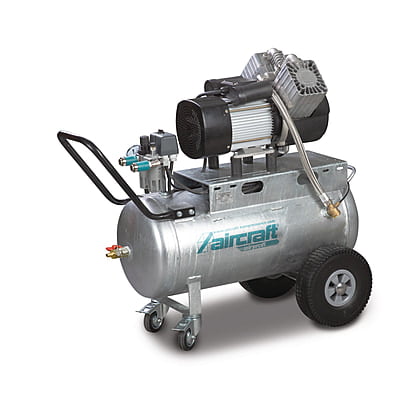

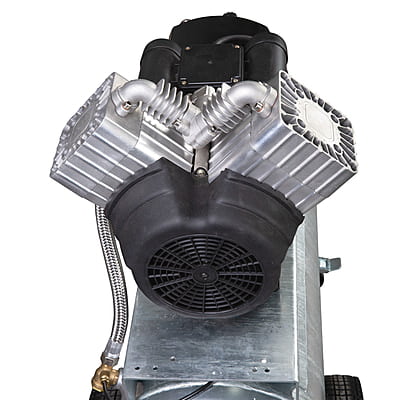

The AIRPROFI 220/50 OF PRO is a premium oil-free coaxial-unit piston compressor built for continuous, clean-air duty, delivering 140 l/min at 6 bar up to 10 bar from a 50 L tank, direct-driven by a 1.1 kW / 230 V motor. A large, movably mounted piston and fan-cooled cylinder give strong output and a long service life. Made in Europe.
ضاغط هواء مكبسي (كمبروسر) خالٍ من الزيت بمجموعة محورية (coaxial) من الفئة الاحترافية، مصمّم للعمل المتواصل بهواء نظيف، يوفّر 140 لتر/دقيقة عند 6 بار وحتى 10 بار من خزان سعة 50 لتر، بنقل مباشر ومحرك 1.1 كيلووات / 230 فولت. مكبس كبير مثبّت بحركة وأسطوانة مبرّدة بمروحة يمنحان أداءً قوياً وعمراً تشغيلياً أطول. صناعة أوروبية.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Air Treatment & Station Setup | معالجة الهواء والمحطة المتكاملة |
|
|
Safety, Build Quality & Certification | السلامة وجودة التصنيع والاعتماد |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Length (product) approx.1080 mm
- Width/depth (product) approx.450 mm
- Height (product) approx.860 mm
- Net weight approx.62 kg
Equipment
- Drive transmissionDirect-coupled

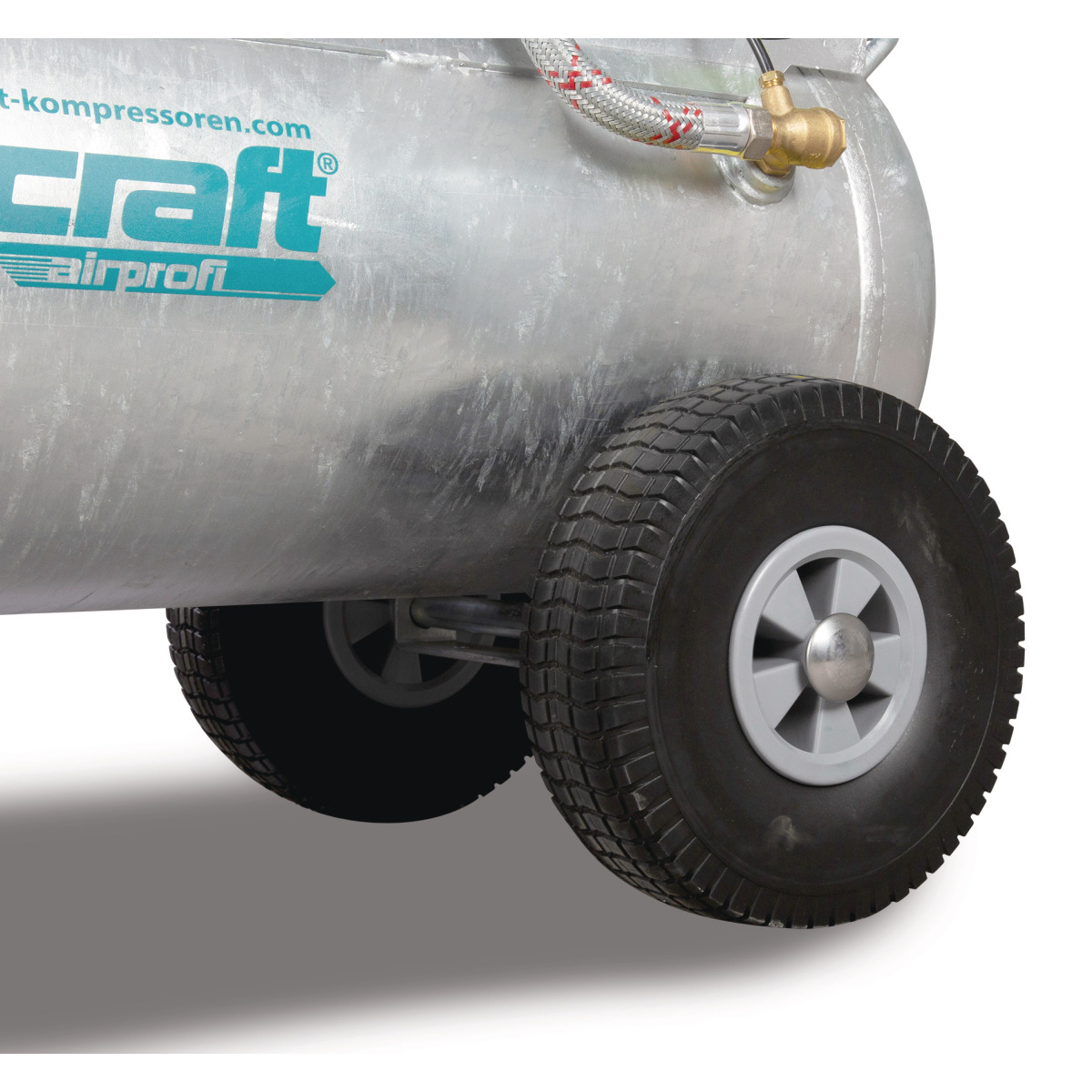

- Compressor baseTwo wheels with PU foam tires. two swivel castors with locking brake
- Compressed air outletTwo comfort safety couplings. one ball valve
- Automatic pressure switchCONDOR
- Pressure vesselHot-dip galvanized inside and out with fifteen-year warranty against rust-through
- Material compressed air lineFlexible armored conduit with heat protection

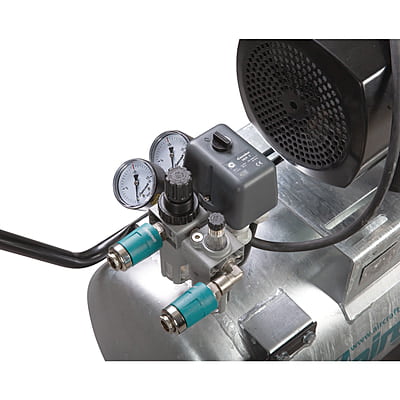

- Pressure regulationFilter pressure regulator
- Compressed air treatmentFilter pressure regulator. mist lubricator
- Connection cable1.8 m
- ZÜS testedTesting before commissioning can also be carried out by a qualified person
- Operating hours counter✔
Electrical Data
- Supply voltage230 V
- Mains frequency50 Hz
- Motor power1.1 kW
- Motor power (input power)1.5 kW
- Duty cylce drive motor70 %
Noise emission
- Sound pressure level Lp70 dB(A)
- Explanation sound pressure level LpSound pressure level at a distance of 1 m according to DIN 45635 T 13
- Whisper quietNo
Compressor
- Suction capacity approx.220 l/min
- Number of cylinders2
- Number of compressor stages1
- Compressor speed1400 rpm
- Filling capacity approx.140 l/min
- Explanation filling capacityat 6 bar working pressure
- Oil-free / oil-lubricatedOil-free
Compressed air tank
- Pressure vessel capacity50 L
- Maximum pressure10 bar
- Tank surfaceGalvanised
General
- Effective delivery volume (CFM)4.9 CFM
