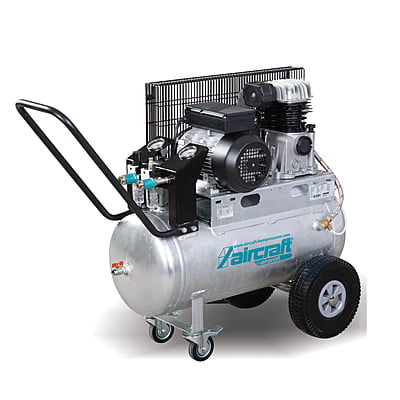

AIRCRAFT AIRPROFI 401/50 P – Mobile Piston Compressor With Belt Drive

Dimensions and weights

• Length (product) approx.
  810 mm
• Width/depth (product) approx.
  430 mm
• Height (product) approx.
  790 mm
• Net weight approx.
  56 kg

Equipment

• Drive transmission
  V-belt
• Compressor base
  Two wheels with PU foam tires. two swivel castors with locking brake

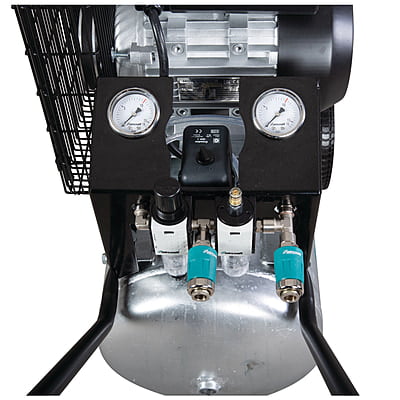

• Compressed air outlet
  Two comfort safety couplings. one ball valve
• Automatic pressure switch
  CONDOR
• Pressure vessel
  Hot-dip galvanized inside and out with fifteen-year warranty against rust-through
• Material compressed air line
  Flexible armored conduit with heat protection
• Pressure regulation
  Filter pressure regulator
• Compressed air treatment
  Filter pressure regulator. mist lubricator
• ZÜS tested
  Testing before commissioning can also be carried out by a qualified person

Electrical Data

• Supply voltage
  230 V
• Mains frequency
  50 Hz
• Motor power
  2.2 kW
• Motor power (input power)
  2.8 kW

Noise emission

• Whisper quiet
  No
• Sound power level Lw
  96 dB(A)
• Explanation sound power level Lw
  Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

Compressor

• Suction capacity approx.
  365 l/min
• Number of cylinders
  2
• Number of compressor stages
  1
• Compressor speed
  1360 rpm
• Filling capacity approx.
  266 l/min
• Explanation filling capacity
  at 6 bar working pressure
• Compressor system
  HOS
• Oil-free / oil-lubricated
  Oil lubricated

Compressed air tank

• Pressure vessel capacity
  50 L
• Maximum pressure
  10 bar
• Tank surface
  Galvanised

General

• Effective delivery volume (CFM)
  9.4 CFM
