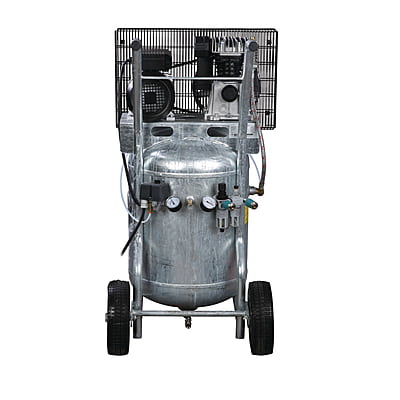

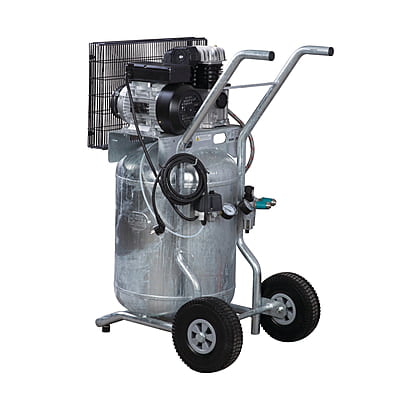

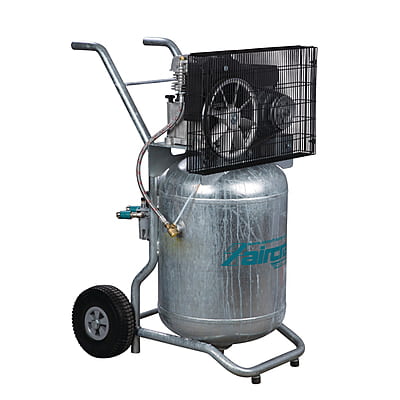

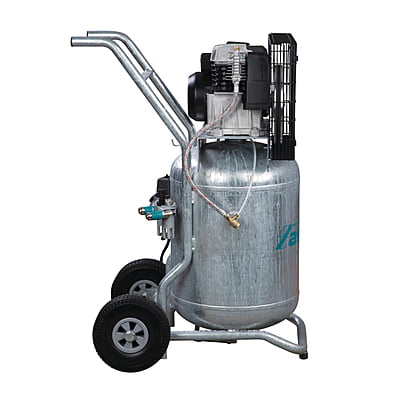

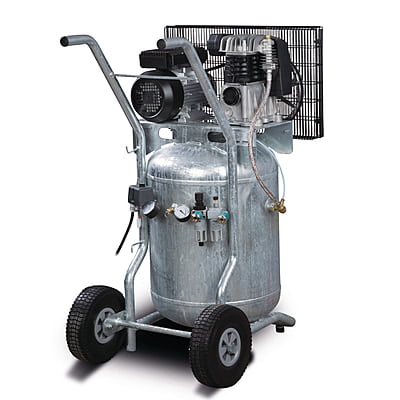

The AIRPROFI 401/90 V is a robust oil-lubricated, belt-driven two-cylinder piston compressor delivering 266 l/min at 6 bar up to 10 bar from a large 90 L vertical tank, driven by a 2.2 kW / 230 V motor. The upright tank saves floor space while giving a big air reserve. Made in Europe.
ضاغط هواء مكبسي (كمبروسر) يعمل بالزيت ثنائي الأسطوانة بنقل بالحزام ومتين، يوفّر 266 لتر/دقيقة عند 6 بار وحتى 10 بار من خزان عمودي كبير سعة 90 لتر، بمحرك 2.2 كيلووات / 230 فولت. الخزان العمودي يوفّر مساحة الأرض مع احتياطي هواء كبير. صناعة أوروبية.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Safety, Build Quality & Certification | السلامة وجودة التصنيع والاعتماد |
|
|
Installation & Handling | التركيب والتشغيل |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Length (product) approx.600 mm
- Width/depth (product) approx.600 mm
- Height (product) approx.1030 mm
- Net weight approx.77 kg
Equipment
- Drive transmissionV-belt
- Compressor baseTwo wheels with PU foam tyres. two rubber buffers
- Compressed air outletTwo one-hand quick couplings
- Automatic pressure switchCONDOR
- Pressure vesselHot-dip galvanized inside and out with fifteen-year warranty against rust-through
- Material compressed air lineFlexible armored conduit with heat protection

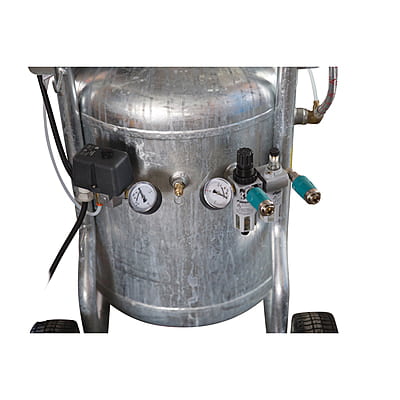

- Pressure regulationFilter pressure regulator
- Compressed air treatmentFilter pressure regulator. mist lubricator
- ConnectorCEE 7/4
- ZÜS testedTesting before commissioning can also be carried out by a qualified person
Electrical Data
- Supply voltage230 V
- Mains frequency50 Hz
- Motor power2.2 kW
- Motor power (input power)2.8 kW
Noise emission
- Whisper quietNo
- Sound power level Lw96 dB(A)
- Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
Compressor
- Suction capacity approx.365 l/min
- Number of cylinders2
- Number of compressor stages1
- Compressor speed1360 rpm
- Filling capacity approx.266 l/min
- Explanation filling capacityat 6 bar working pressure
- Compressor systemHOS
- Oil-free / oil-lubricatedOil lubricated
Compressed air tank
- Pressure vessel capacity90 L
- Maximum pressure10 bar
- Tank surfaceGalvanised
General
- Effective delivery volume (CFM)9.4 CFM
