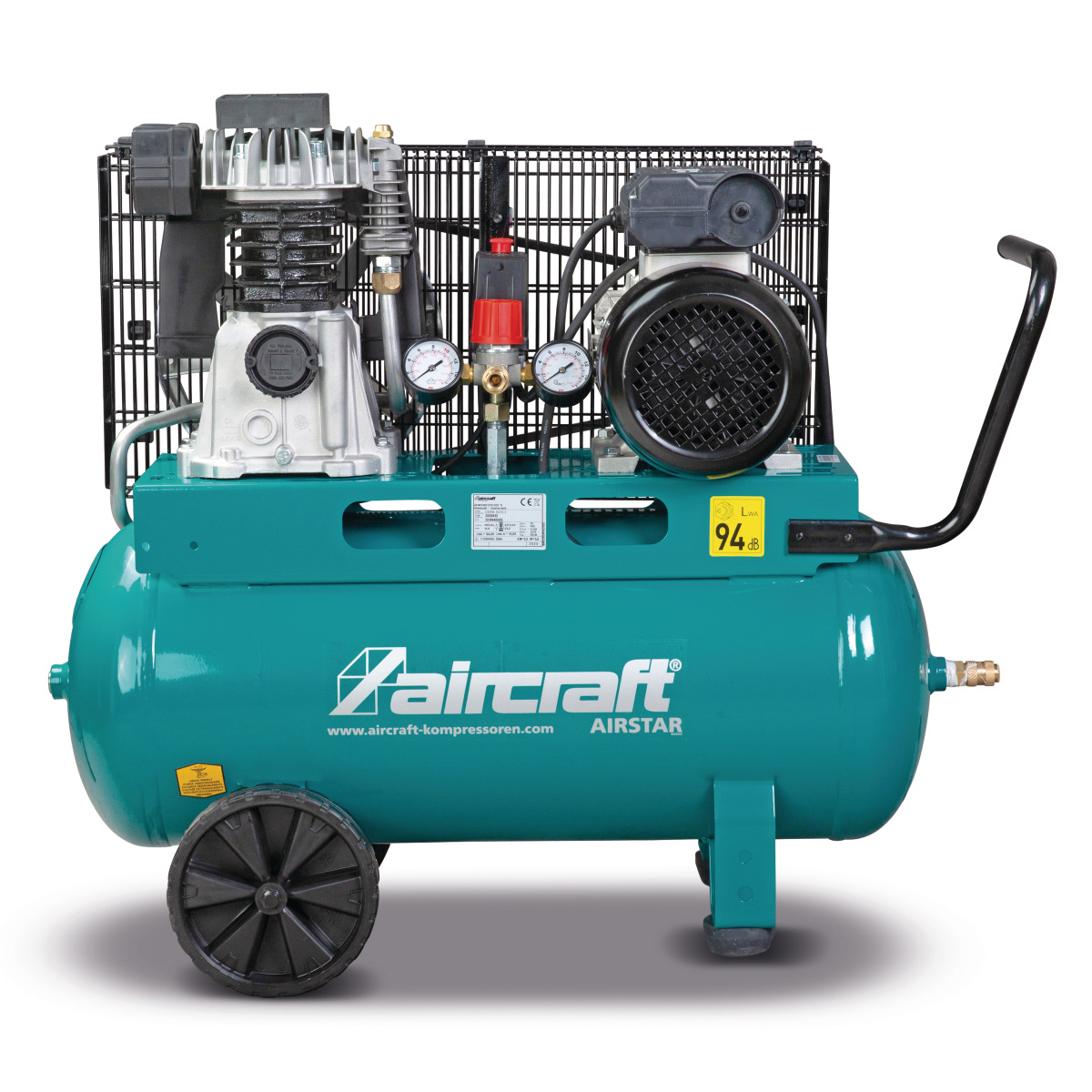

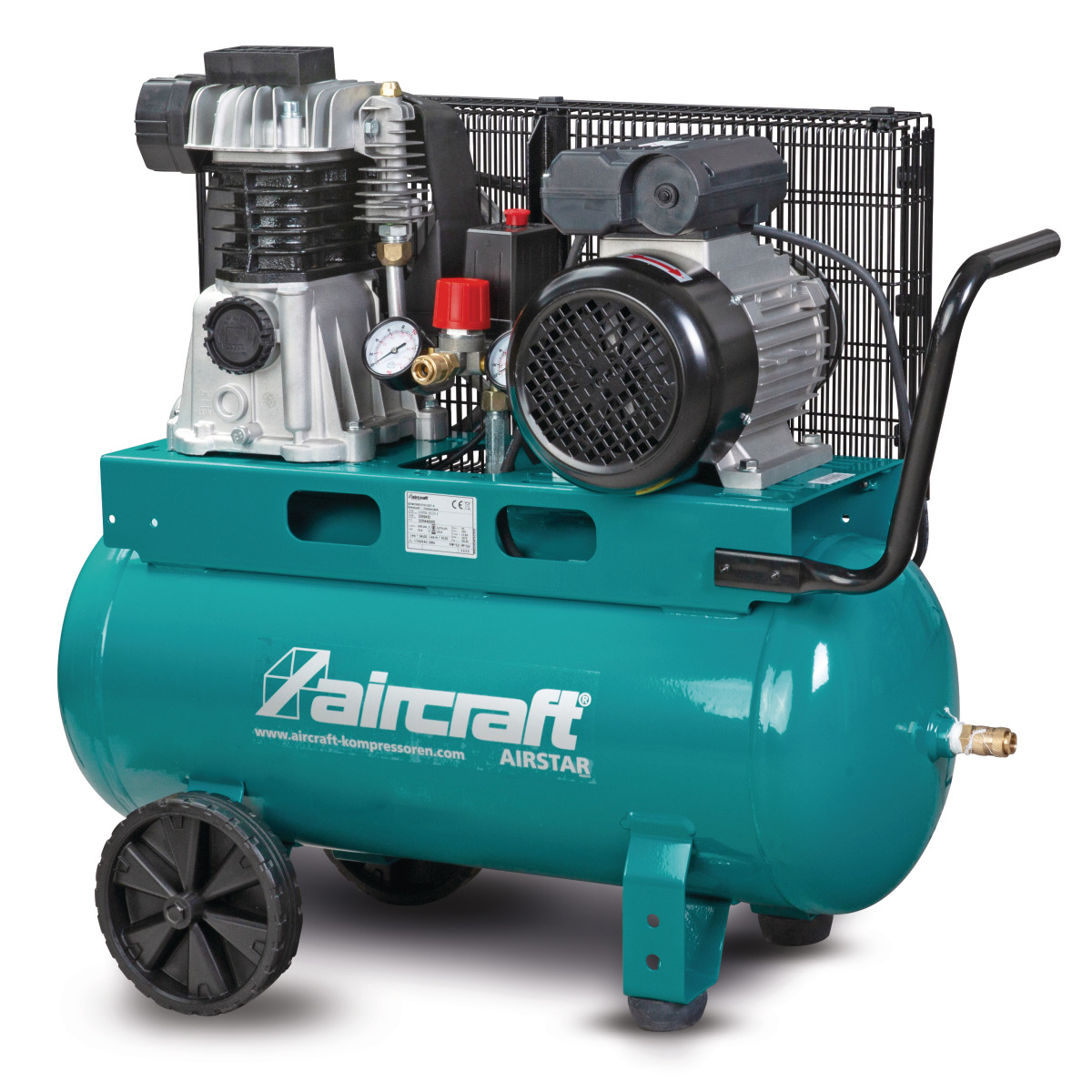

AIRCRAFT AIRSTAR 401/50 E 230V – Mobile Piston Compressor With Belt Drive

Dimensions and weights

• Length (product) approx.
  810 mm
• Width/depth (product) approx.
  365 mm
• Height (product) approx.
  710 mm
• Net weight approx.
  50,1 kg

Equipment

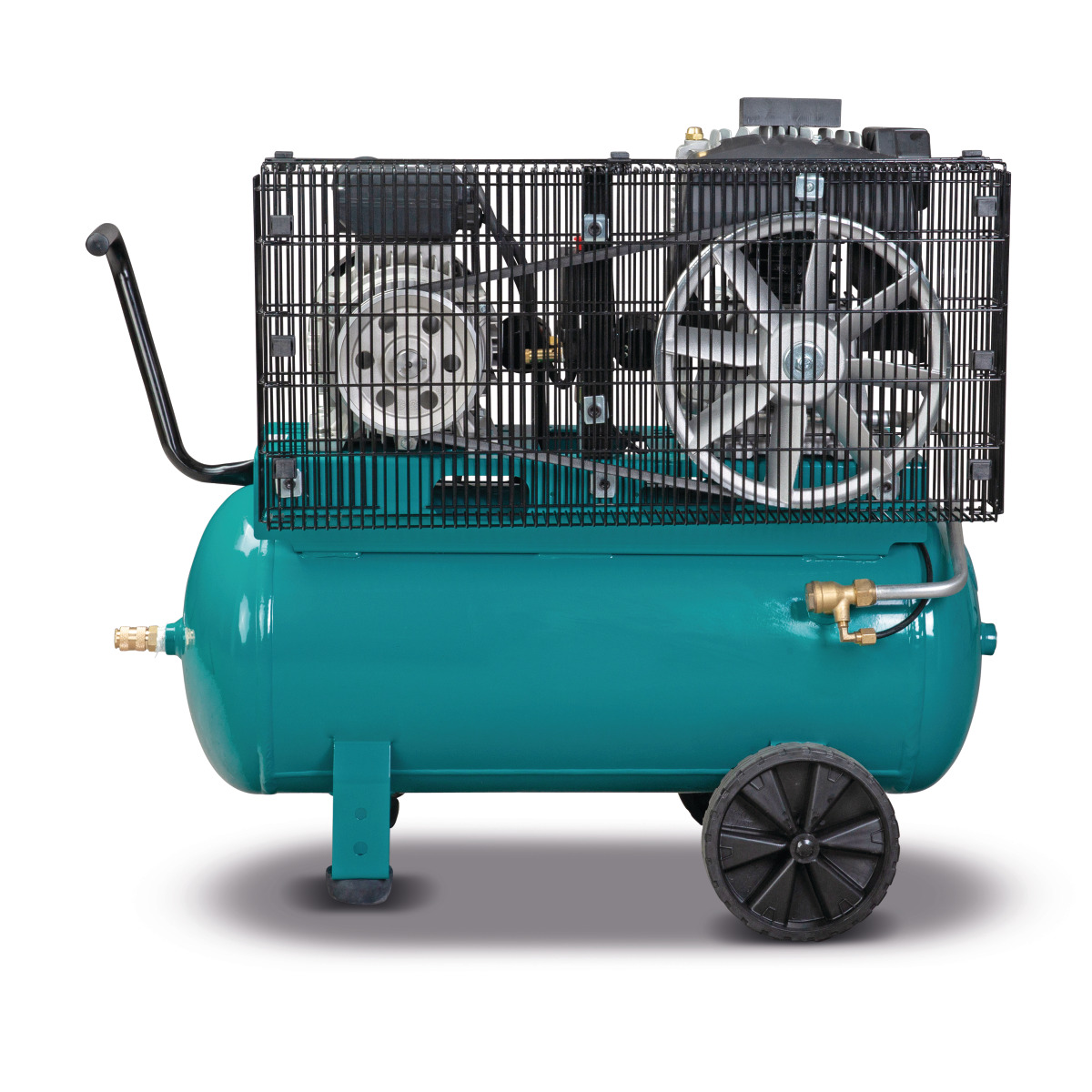

• Drive transmission
  V-belt
• Compressor base

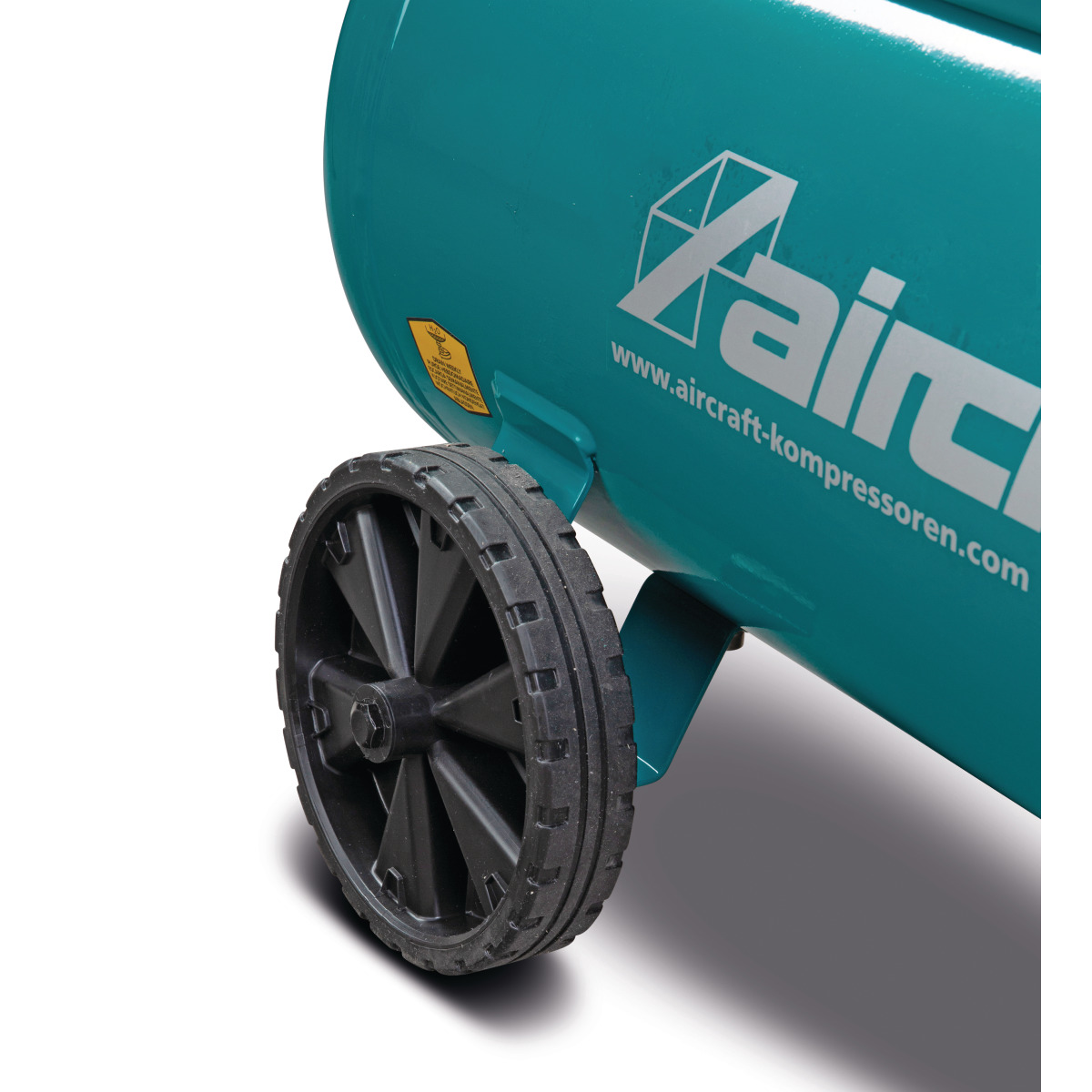

  Two wheels. two rubber buffers
• Compressed air outlet
  A one-hand quick coupling
• Automatic pressure switch
  ✔
• Pressure vessel
  Powder-coated
• Material compressed air line
  Aluminum

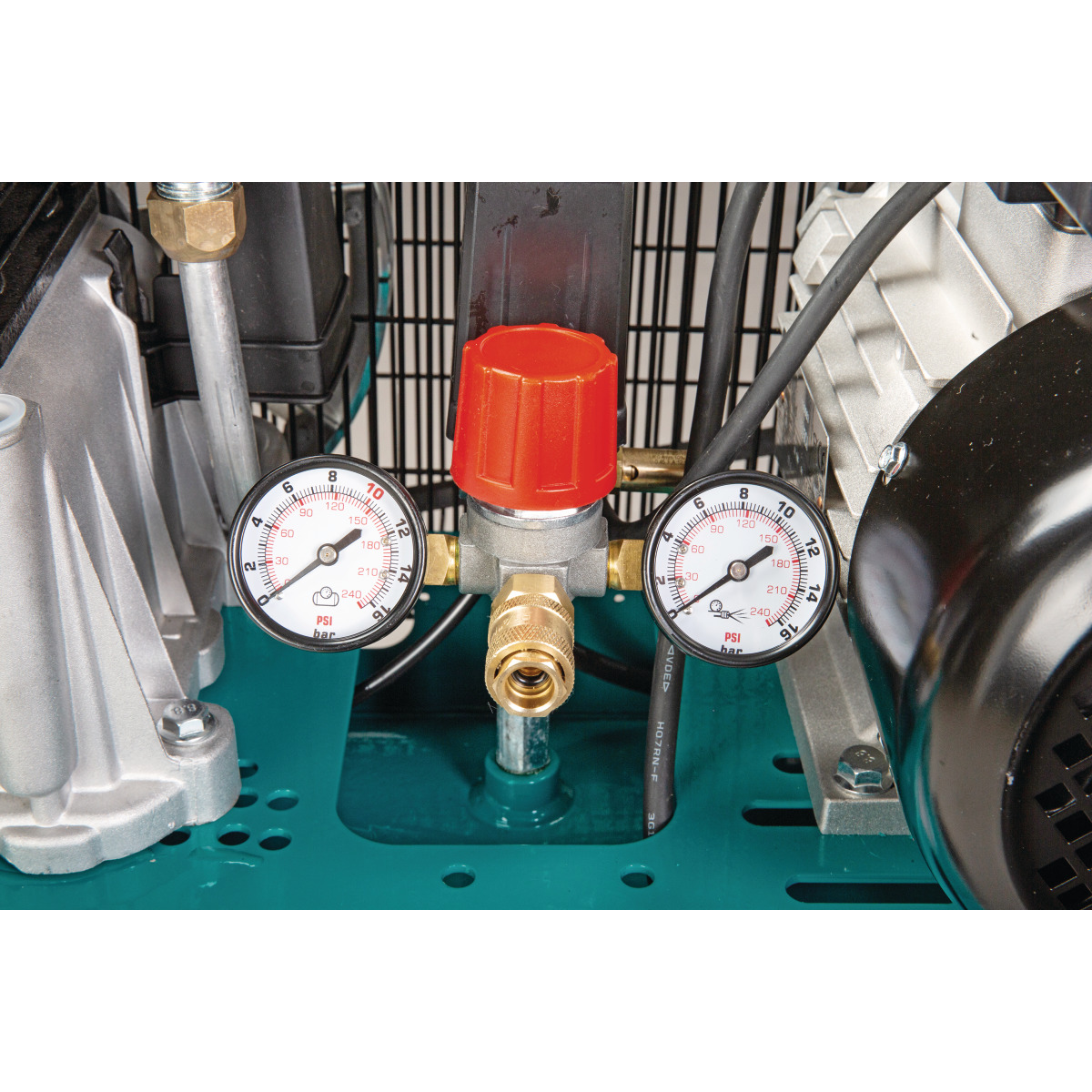

• Pressure regulation
  Pressure regulator
• Condensate drain
  Condensate drain valve
• ZÜS tested
  Testing before commissioning can also be carried out by a qualified person

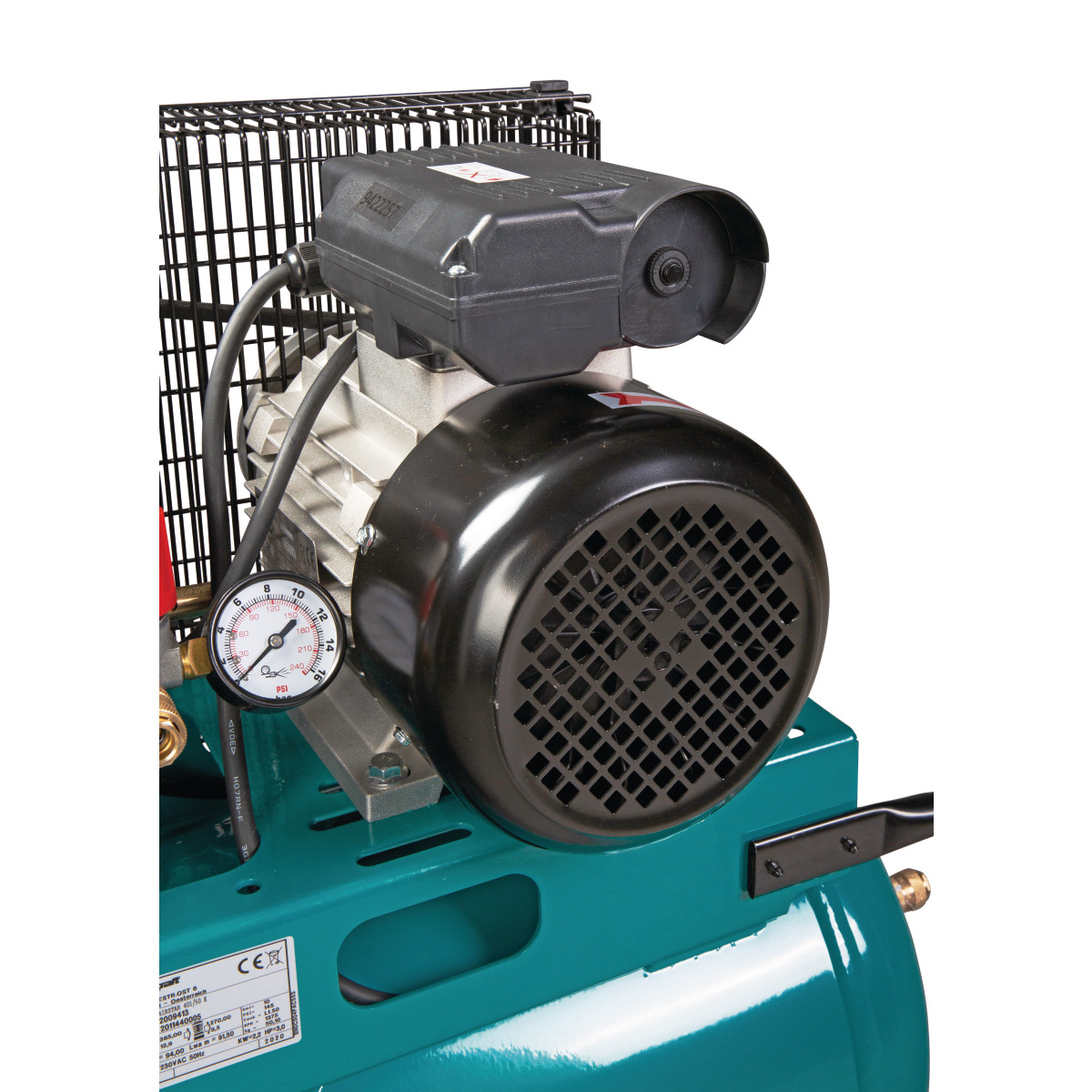

Electrical Data

• Supply voltage
  230 V
• Mains frequency
  50 Hz
• Motor power
  2.2 kW
• Motor power (input power)
  2.8 kW

Noise emission

• Whisper quiet
  No
• Sound power level Lw
  94 dB(A)
• Explanation sound power level Lw
  Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

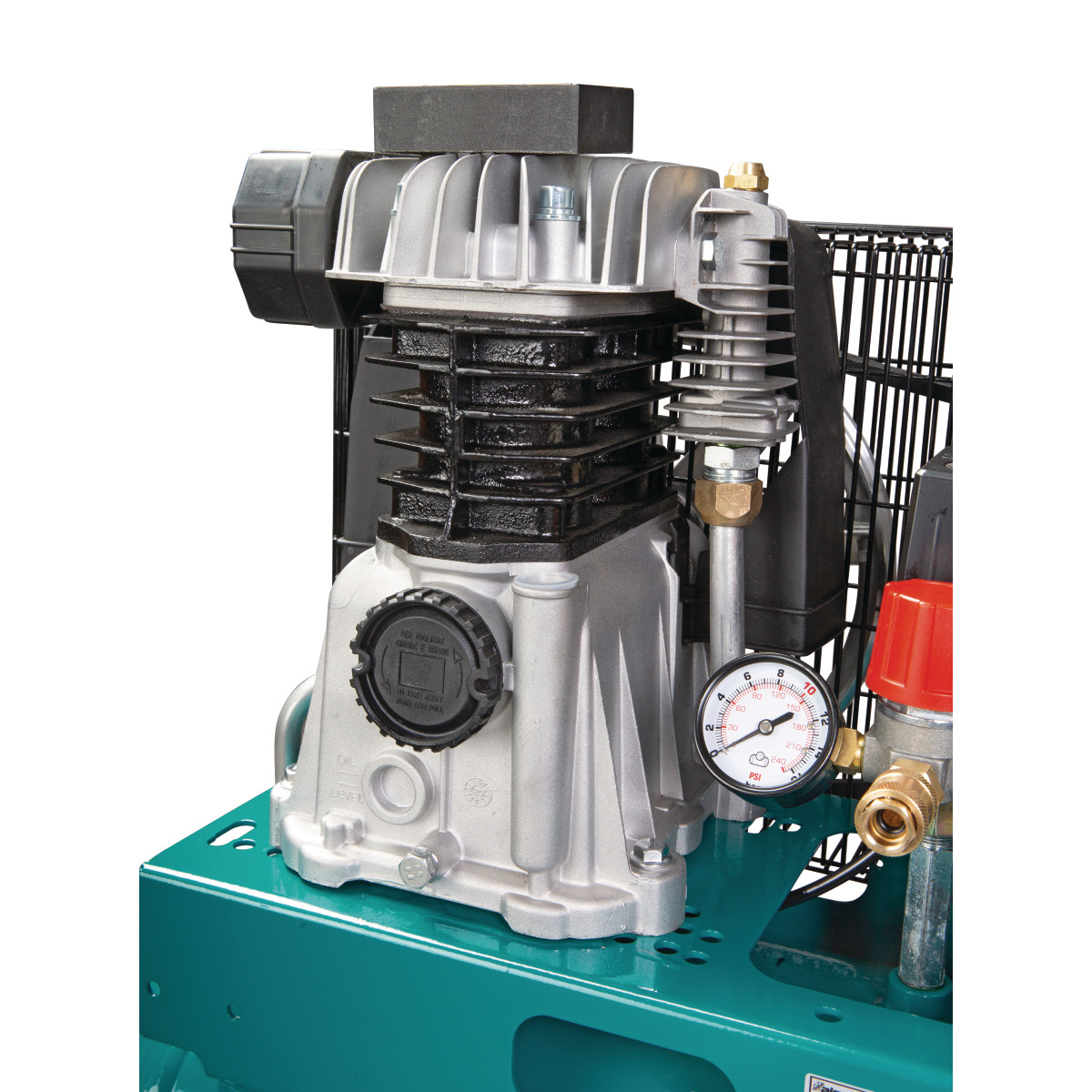

Compressor

• Suction capacity approx.
  365 l/min
• Number of cylinders
  2
• Number of compressor stages
  1
• Compressor speed
  1375 rpm
• Filling capacity approx.
  270 l/min
• Explanation filling capacity
  at 6 bar working pressure
• Compressor system
  HOS
• Oil-free / oil-lubricated
  Oil lubricated

Compressed air tank

• Pressure vessel capacity
  50 L
• Maximum pressure
  10 bar
• Tank surface
  Powder-coated

General

• Effective delivery volume (CFM)
  9.5 CFM
