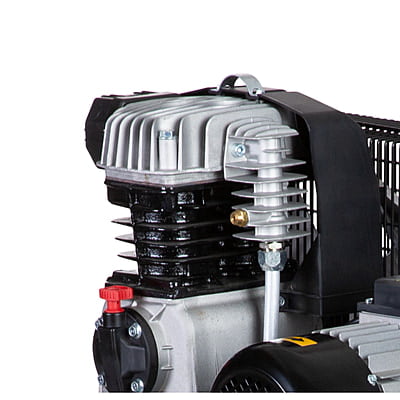

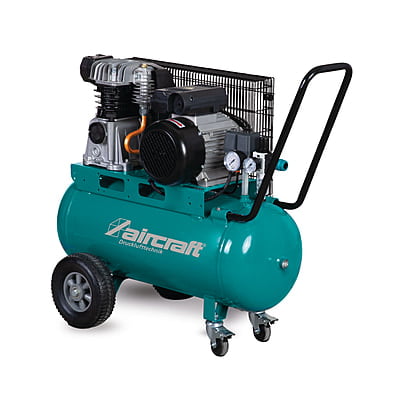

The AIRSTAR 421/50 is an oil-lubricated, belt-driven two-cylinder piston compressor with a cast-iron pump for long service life, delivering 270 l/min at 6 bar up to 10 bar from a 50 L tank at 74 dB(A), driven by a 2.2 kW / 230 V motor. A large fan wheel and cooling baffle keep it running cool. Made in Italy.
ضاغط هواء مكبسي (كمبروسر) يعمل بالزيت ثنائي الأسطوانة بنقل بالحزام، بمجموعة ضغط من حديد صلب لعمر تشغيلي أطول، يوفّر 270 لتر/دقيقة عند 6 بار وحتى 10 بار من خزان سعة 50 لتر عند 74 ديسيبل، بمحرك 2.2 كيلووات / 230 فولت. مروحة كبيرة وحاجز تبريد يبقيانه بارداً أثناء التشغيل. صناعة إيطالية.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Safety, Build Quality & Certification | السلامة وجودة التصنيع والاعتماد |
|
|
Installation & Handling | التركيب والتشغيل |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Length (product) approx.840 mm
- Width/depth (product) approx.380 mm
- Height (product) approx.780 mm
- Net weight approx.58 kg
Equipment
- Drive transmissionV-belt

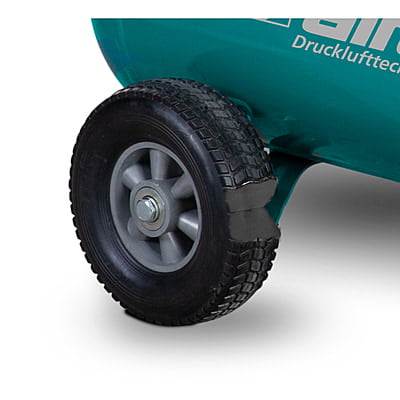

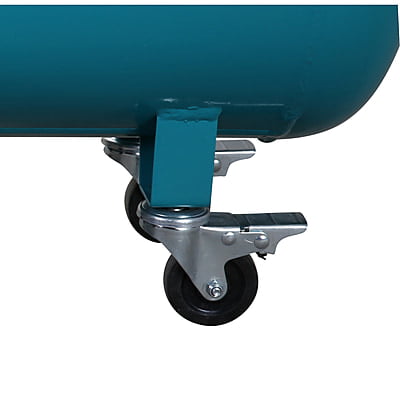

- Compressor baseTwo wheels with PU foam tires. two swivel castors with locking brake
- Compressed air outletA safety clutch
- Automatic pressure switchCONDOR
- Pressure vesselPowder-coated with a ten-year guarantee against rusting through
- Material compressed air lineCopper

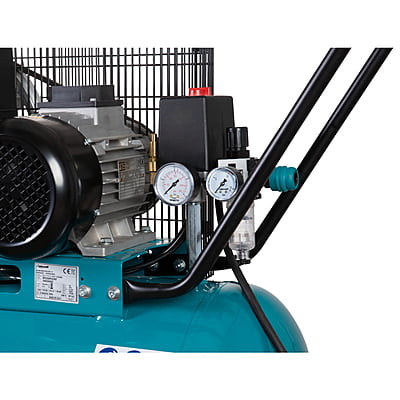

- Pressure regulationFilter pressure regulator
- Compressed air treatmentFilter pressure regulator
- Condensate drainBall valve
- ConnectorCEE 7/4
- Connection cable2 m
Electrical Data
- Supply voltage230 V
- Mains frequency50 Hz
- Motor power2.2 kW
- Motor power (input power)2.8 kW
- Duty cylce drive motor75 %
- Drive motorElectric motor
Noise emission
- Sound pressure level Lp74 dB(A)
- Explanation sound pressure level LpSound pressure level at a distance of 1 m according to DIN 45635 T 13
- Whisper quietNo
- Sound power level Lw96 dB(A)
- Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
Compressor
- Suction capacity approx.365 l/min
- Number of cylinders2
- Number of compressor stages1
- Compressor speed1360 rpm
- Filling capacity approx.270 l/min
- Explanation filling capacityat 6 bar working pressure
- Compressor systemHOS
- Oil-free / oil-lubricatedOil lubricated
- Piston stroke40 mm
- Diameter of piston65 mm
Compressed air tank
- Pressure vessel capacity50 L
- Maximum pressure10 bar
- Tank surfacePowder-coated
- Tank vertical / horizontalProne
General
- Effective delivery volume (CFM)9.5 CFM
