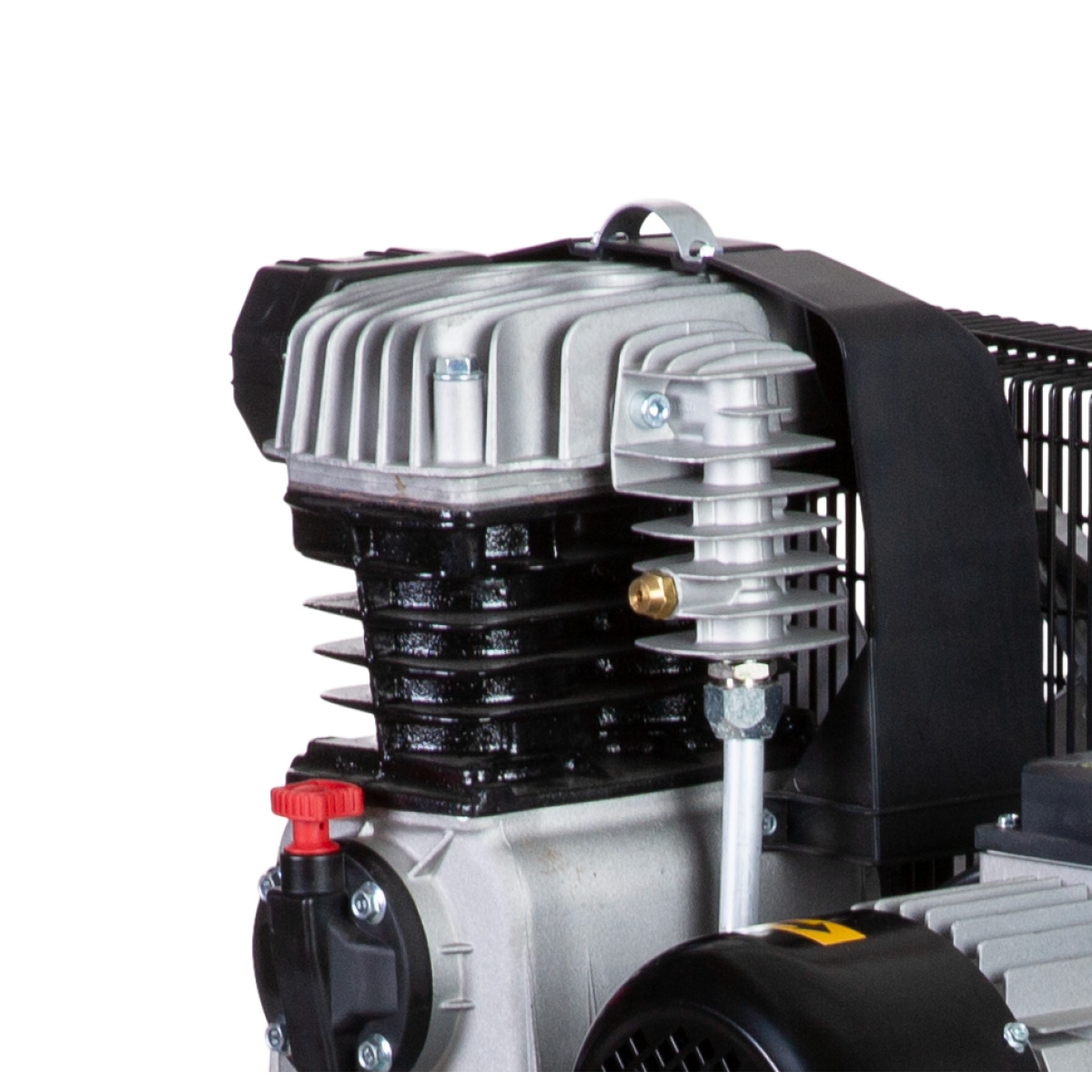

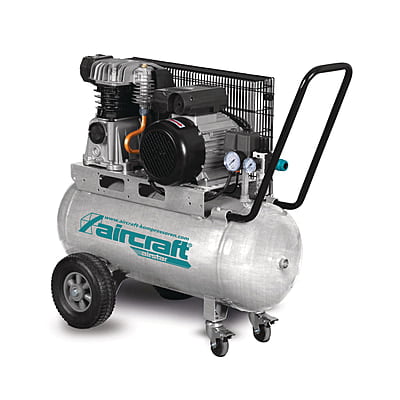

The AIRSTAR 421/50 VZ is an oil-lubricated, belt-driven two-cylinder piston compressor with a cast-iron pump and a galvanised tank, delivering 270 l/min at 6 bar up to 10 bar from a 50 L tank at 74 dB(A), driven by a 2.2 kW / 230 V motor. The galvanised tank adds strong corrosion protection. Made in Italy.
ضاغط هواء مكبسي (كمبروسر) يعمل بالزيت ثنائي الأسطوانة بنقل بالحزام، بمجموعة ضغط من حديد صلب وخزان مجلفن، يوفّر 270 لتر/دقيقة عند 6 بار وحتى 10 بار من خزان سعة 50 لتر عند 74 ديسيبل، بمحرك 2.2 كيلووات / 230 فولت. الخزان المجلفن يضيف حماية قوية ضد الصدأ. صناعة إيطالية.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Safety, Build Quality & Certification | السلامة وجودة التصنيع والاعتماد |
|
|
Installation & Handling | التركيب والتشغيل |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Length (product) approx.840 mm
- Width/depth (product) approx.380 mm
- Height (product) approx.780 mm
- Net weight approx.60 kg
Equipment
- Drive transmissionV-belt

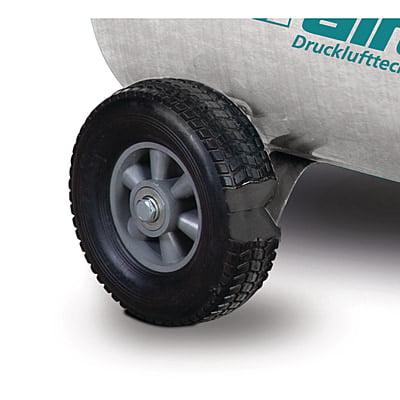

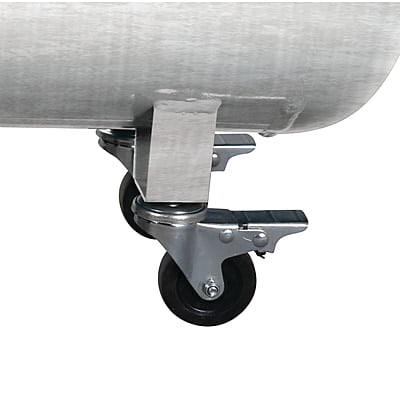

- Compressor baseTwo wheels with PU foam tires. two swivel castors with locking brake
- Compressed air outletA safety clutch
- Automatic pressure switchCONDOR
- Pressure vesselHot-dip galvanized inside and out with fifteen-year warranty against rust-through
- Material compressed air lineCopper

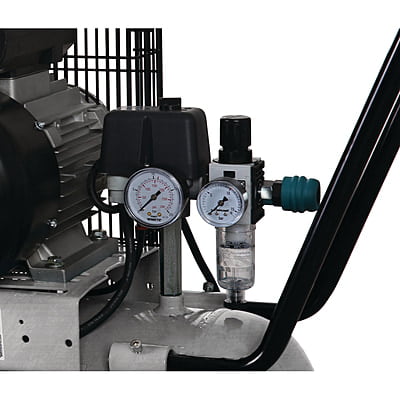

- Pressure regulationFilter pressure regulator
- Compressed air treatmentFilter pressure regulator
- Condensate drainBall valve
- ConnectorCEE 7/4
- Connection cable2 m
Electrical Data
- Supply voltage230 V
- Mains frequency50 Hz
- Motor power2.2 kW
- Motor power (input power)2.8 kW
- Duty cylce drive motor75 %
- Drive motorElectric motor
Noise emission
- Sound pressure level Lp74 dB(A)
- Explanation sound pressure level LpSound pressure level at a distance of 1 m according to DIN 45635 T 13
- Whisper quietNo
- Sound power level Lw96 dB(A)
- Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
Compressor
- Suction capacity approx.365 l/min
- Number of cylinders2
- Number of compressor stages1
- Compressor speed1360 rpm
- Filling capacity approx.270 l/min
- Explanation filling capacityat 6 bar working pressure
- Compressor systemHOS
- Oil-free / oil-lubricatedOil lubricated
- Piston stroke40 mm
- Diameter of piston65 mm
Compressed air tank
- Pressure vessel capacity50 L
- Maximum pressure10 bar
- Tank surfaceGalvanised
- Tank vertical / horizontalProne
General
- Effective delivery volume (CFM)9.5 CFM
