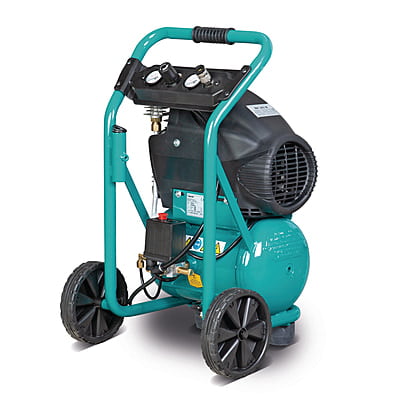

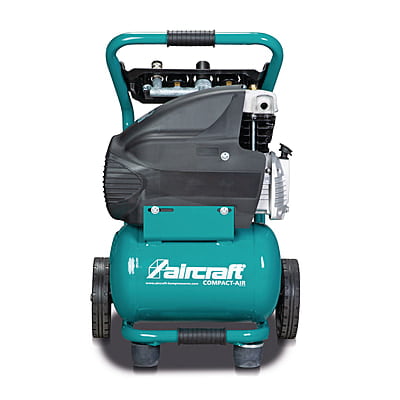

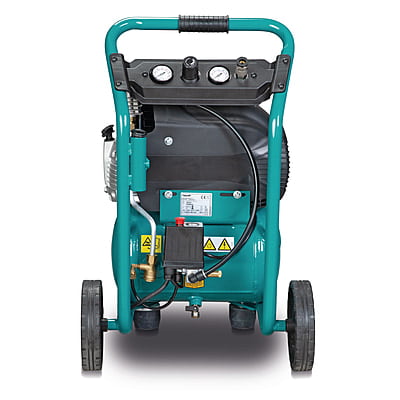

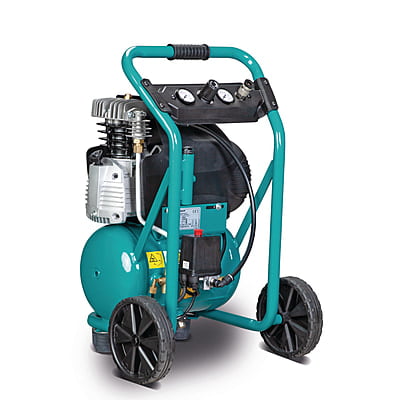

The COMPACT-AIR 265/10 E is a compact oil-lubricated mobile piston compressor delivering 155 l/min at 6 bar up to 10 bar from a 10 L tank, direct-driven by a 1.5 kW / 230 V motor. A high-torque motor with start unloading gives trouble-free starting, with all fittings protected for transport.
ضاغط هواء مكبسي (كمبروسر) متنقل مدمج يعمل بالزيت، يوفّر 155 لتر/دقيقة عند 6 بار وحتى 10 بار من خزان سعة 10 لتر، بنقل مباشر ومحرك 1.5 كيلووات / 230 فولت. محرك عالي العزم مع تفريغ إقلاع لبدء دون مشاكل، مع حماية جميع التجهيزات للنقل.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Safety, Build Quality & Certification | السلامة وجودة التصنيع والاعتماد |
|
|
Installation & Handling | التركيب والتشغيل |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Length (product) approx.420 mm
- Width/depth (product) approx.350 mm
- Height (product) approx.730 mm
- Net weight approx.24,1 kg
Equipment
- Drive transmissionDirect-coupled

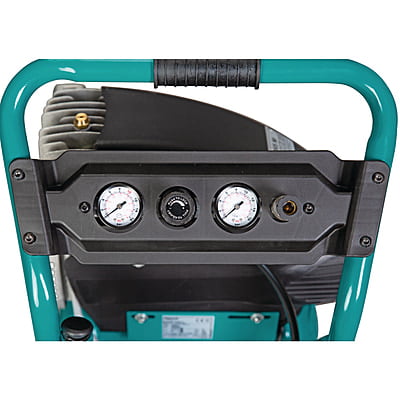

- Compressed air outletA one-hand quick coupling
- Automatic pressure switch✔
- Material compressed air lineCopper
- Pressure regulationPressure regulator
- Condensate drain3/8 "
- Connector1/4 "
- Connection cable1.85 m
- ZÜS testedTesting before commissioning can also be carried out by a qualified person
Electrical Data
- Supply voltage230 V
- Mains frequency50 Hz
- Motor power1.5 kW
- Motor power (input power)1.7 kW
Noise emission
- Sound pressure level Lp75 dB(A)
- Whisper quietNo
- Sound power level Lw97 dB(A)
- Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
Compressor
- Suction capacity approx.250 l/min
- Number of cylinders1
- Number of compressor stages1
- Compressor speed2850 rpm
- Filling capacity approx.155 l/min
- Explanation filling capacityat 6 bar working pressure
- Compressor systemHOS
- Oil-free / oil-lubricatedOil lubricated
Compressed air tank
- Pressure vessel capacity10 L
- Maximum pressure10 bar
- Tank surfacePowder-coated
General
- Effective delivery volume (CFM)5.5 CFM
