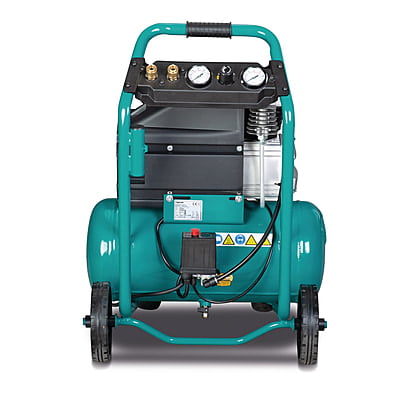

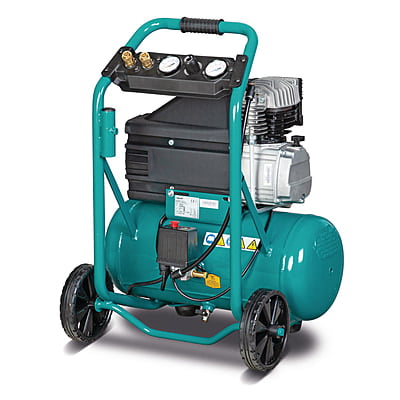

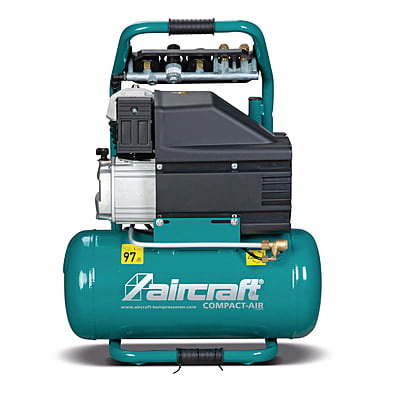

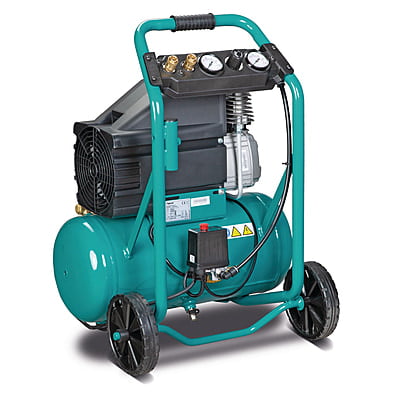

AIRCRAFT COMPACT-AIR 311/24 E – Mobile Piston Compressor

Dimensions and weights

• Length (product) approx.
  560 mm
• Width/depth (product) approx.
  445 mm
• Height (product) approx.
  735 mm
• Net weight approx.
  34,5 kg

Equipment

• Drive transmission
  Direct-coupled

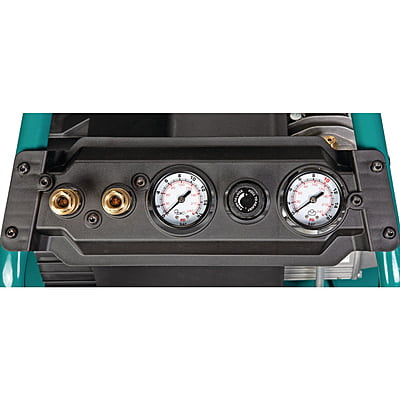

• Compressed air outlet
  Two one-hand quick couplings
• Automatic pressure switch
  ✔
• Material compressed air line
  Aluminum
• Pressure regulation
  Pressure regulator
• Condensate drain
  3/8 "
• Connector
  CEE 7/4
• Connection cable
  1.85 m
• ZÜS tested
  Testing before commissioning can also be carried out by a qualified person

Electrical Data

• Supply voltage
  230 V
• Mains frequency
  50 Hz
• Motor power
  2.2 kW
• Motor power (input power)
  2.8 kW
• Duty cylce drive motor
  50 %

Noise emission

• Sound pressure level Lp
  75 dB(A)
• Whisper quiet
  No
• Sound power level Lw
  97 dB(A)
• Explanation sound power level Lw
  Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

Compressor

• Suction capacity approx.
  284 l/min
• Number of cylinders
  1
• Number of compressor stages
  1
• Compressor speed
  2850 rpm
• Filling capacity approx.
  190 l/min
• Explanation filling capacity
  at 6 bar working pressure
• Compressor system
  HOS
• Oil-free / oil-lubricated
  Oil lubricated

Compressed air tank

• Pressure vessel capacity
  24 L
• Maximum pressure
  10 bar
• Tank surface
  Powder-coated

General

• Effective delivery volume (CFM)
  6.7 CFM
