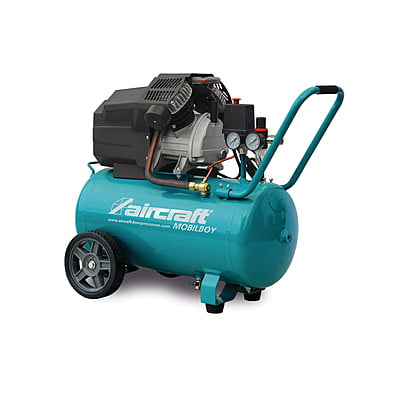

AIRCRAFT MOBILBOY 401/50 E – Piston Compressor

Dimensions and weights

• Length (product) approx.
  800 mm
• Width/depth (product) approx.
  380 mm
• Height (product) approx.
  750 mm
• Net weight approx.
  42 kg

Equipment

• Drive transmission
  Direct-coupled
• Compressor base
  Two wheels Wheels with solid rubber tires. two rubber bumpers
• Compressed air outlet
  Two one hand quick coupling
• Automatic pressure switch
  ✔
• Pressure vessel
  Powder-coated
• Material compressed air line
  Copper
• Pressure regulation

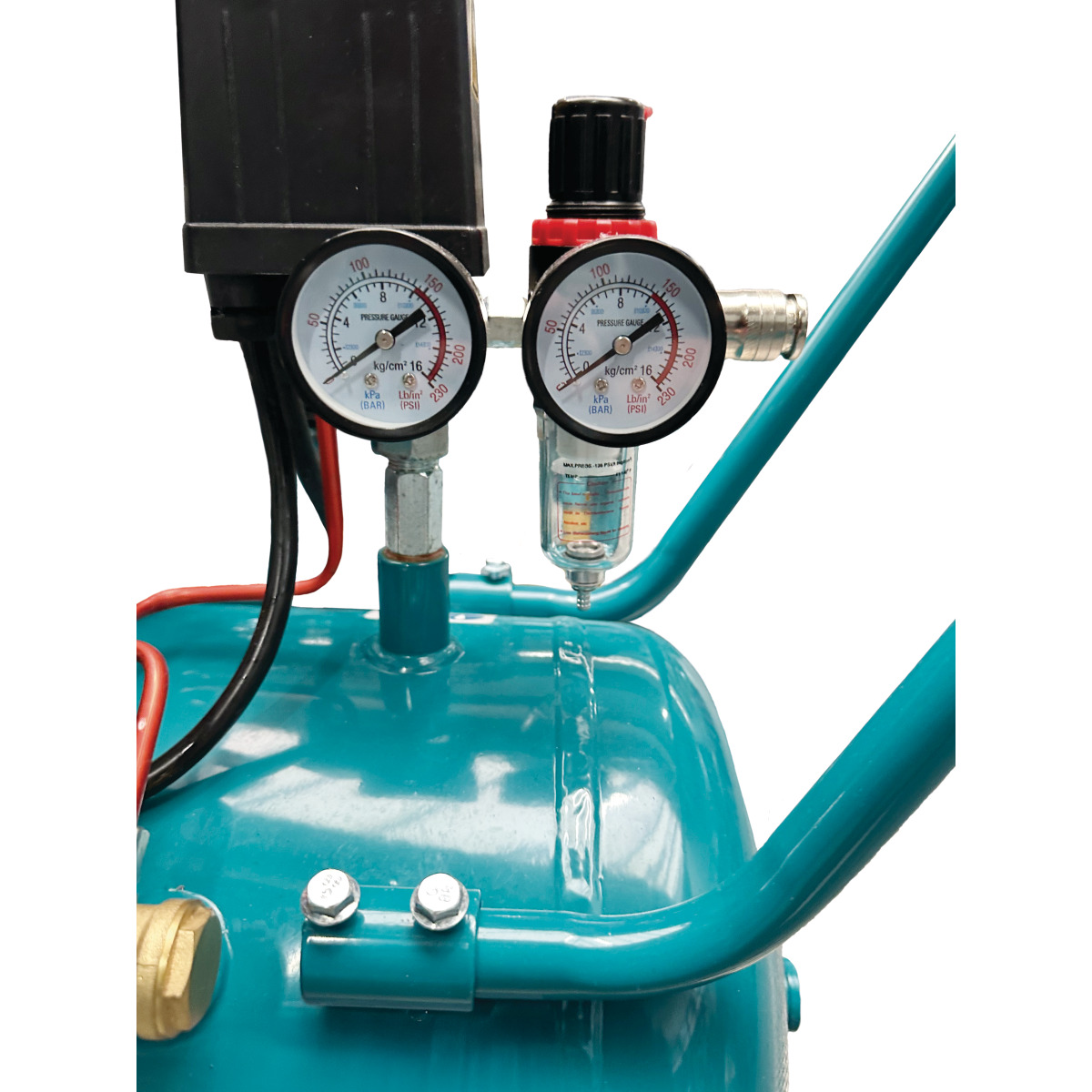

  Filter pressure regulator
• Condensate drain
  Ball valve
• Connector
  CEE 7/4
• Connection cable
  1.5 m

Electrical Data

• Supply voltage
  230 V
• Mains frequency
  50 Hz
• Motor power
  1.7 kW
• Motor power (input power)
  2.4 kW
• Duty cylce drive motor
  70 %

Noise emission

• Sound pressure level Lp
  74 dB(A)
• Explanation sound pressure level Lp
  Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Whisper quiet
  No
• Sound power level Lw
  94
• Explanation sound power level Lw
  Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

Compressor

• Suction capacity approx.
  400 l/min
• Number of cylinders
  2
• Number of compressor stages
  1
• Compressor speed
  2850 rpm
• Filling capacity approx.
  200 l/min
• Explanation filling capacity
  at 6 bar working pressure
• Compressor system
  HOS
• Oil-free / oil-lubricated
  Oil lubricated
• Piston stroke
  40 mm
• Diameter of piston
  47 mm

Compressed air tank

• Pressure vessel capacity
  50 L
• Maximum pressure
  10 bar
• Tank surface
  Powder-coated
• Tank vertical / horizontal
  Prone

General

• Effective delivery volume (CFM)
  7.1 CFM
