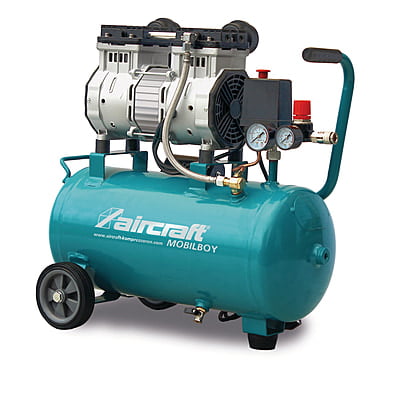

AIRCRAFT MOBILBOY SILENCE 241/24 OF E – Piston Compressor

Dimensions and weights

• Length (product) approx.
  600 mm
• Width/depth (product) approx.
  280 mm
• Height (product) approx.
  600 mm
• Net weight approx.
  24 kg

Equipment

• Drive transmission
  Direct-coupled
• Compressor base
  Two wheels with solid rubber tyres. two rubber buffers
• Compressed air outlet
  A one-hand quick coupling

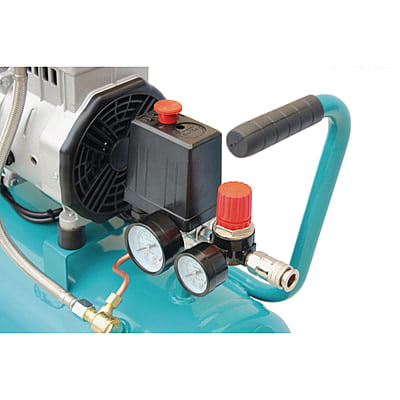

• Automatic pressure switch
  ✔
• Pressure vessel
  Powder-coated
• Material compressed air line
  Flexible armored conduit with heat protection
• Pressure regulation
  Pressure regulator
• Connector
  CEE 7/4
• Connection cable
  1.5 m

Electrical Data

• Supply voltage
  230 V
• Mains frequency
  50 Hz
• Motor power
  1 kW
• Motor power (input power)
  1.4 kW
• Duty cylce drive motor
  70 %

Noise emission

• Sound pressure level Lp
  62 dB(A)
• Explanation sound pressure level Lp
  Sound pressure level at a distance of 1 m according to DIN 45635 T 13
• Whisper quiet
  Yes

Compressor

• Suction capacity approx.
  240 l/min
• Number of cylinders
  2
• Number of compressor stages
  1
• Compressor speed
  2850 rpm
• Filling capacity approx.
  120 l/min
• Explanation filling capacity
  at 6 bar working pressure
• Compressor system
  WDS
• Oil-free / oil-lubricated
  Oil-free
• Piston stroke
  22 mm
• Diameter of piston
  69,7 mm

Compressed air tank

• Pressure vessel capacity
  24 L
• Maximum pressure
  10 bar
• Tank surface
  Powder-coated

General

• Effective delivery volume (CFM)
  4.2 CFM
