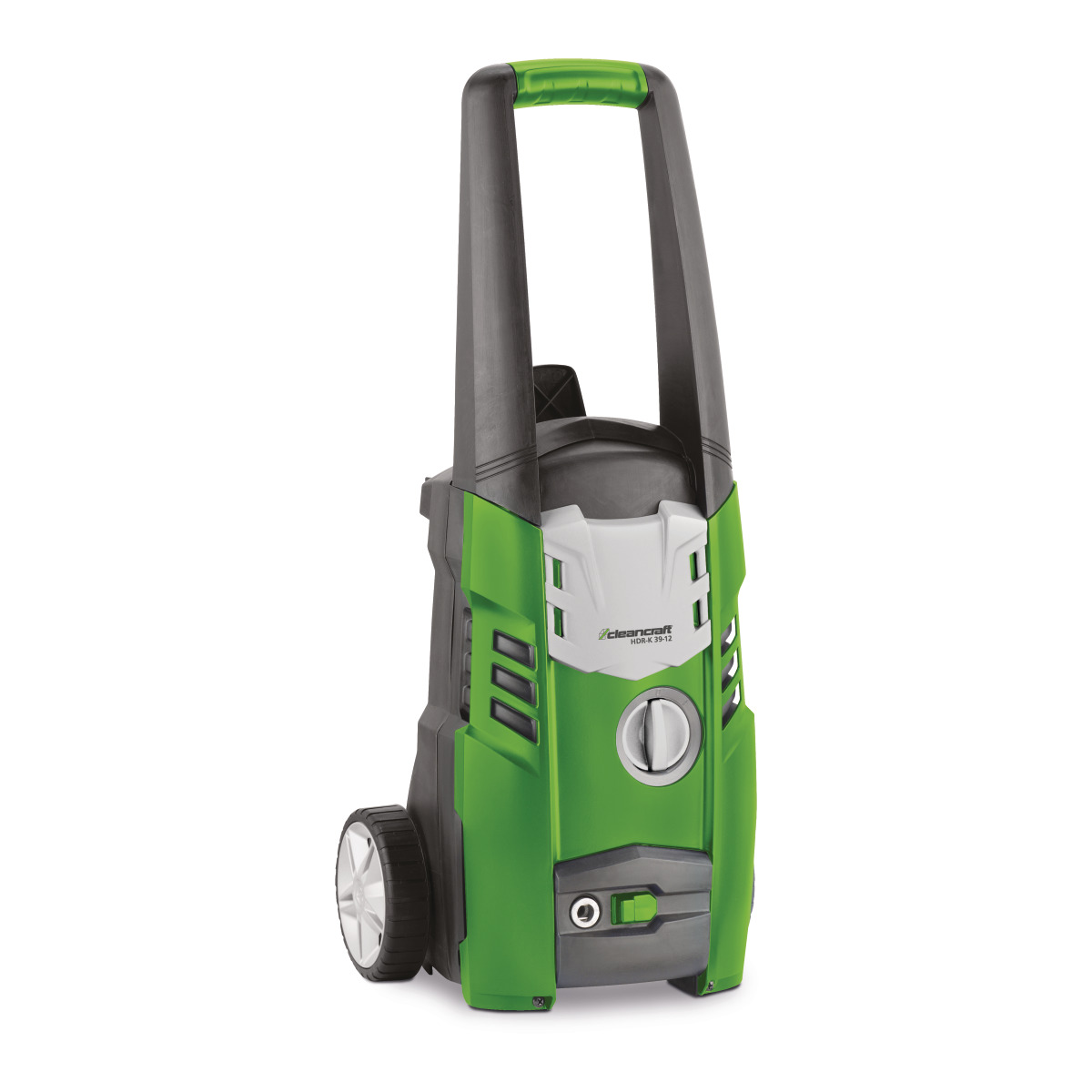

The CLEANCRAFT HDR-K 39-12 is a small, compact cold-water electric high-pressure cleaner for occasional use, delivering 80 bar working pressure (up to 120 bar) at 390 l/h, driven by a 1.5 kW / 230 V motor. A three-piston axial pump with an aluminium head and stainless steel pistons, Total-Stop control and a CLICK-FAST quick-coupling system make it easy to use. 75 dB(A). Just 5.9 kg, 280 × 240 × 650 mm.
ماكينة غسيل بالضغط العالي بالماء البارد صغيرة ومدمجة بمحرّك كهربائي للاستخدام العرضي، تقدّم ضغط تشغيل 80 bar (أقصى ضغط 120 bar) وتدفّقاً 390 l/h بمحرّك 1.5 kW / 230 فولت. مضخة محورية ثلاثية المكابس برأس ألمنيوم ومكابس ستانلس ستيل، ونظام الإيقاف التلقائي عند تحرير الزناد، ونظام وصل سريع CLICK-FAST يجعلها سهلة الاستخدام. 75 dB(A). بوزن 5.9 kg فقط، الأبعاد 280 × 240 × 650 mm.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Operation & Handling | التشغيل والمناولة |
|
|

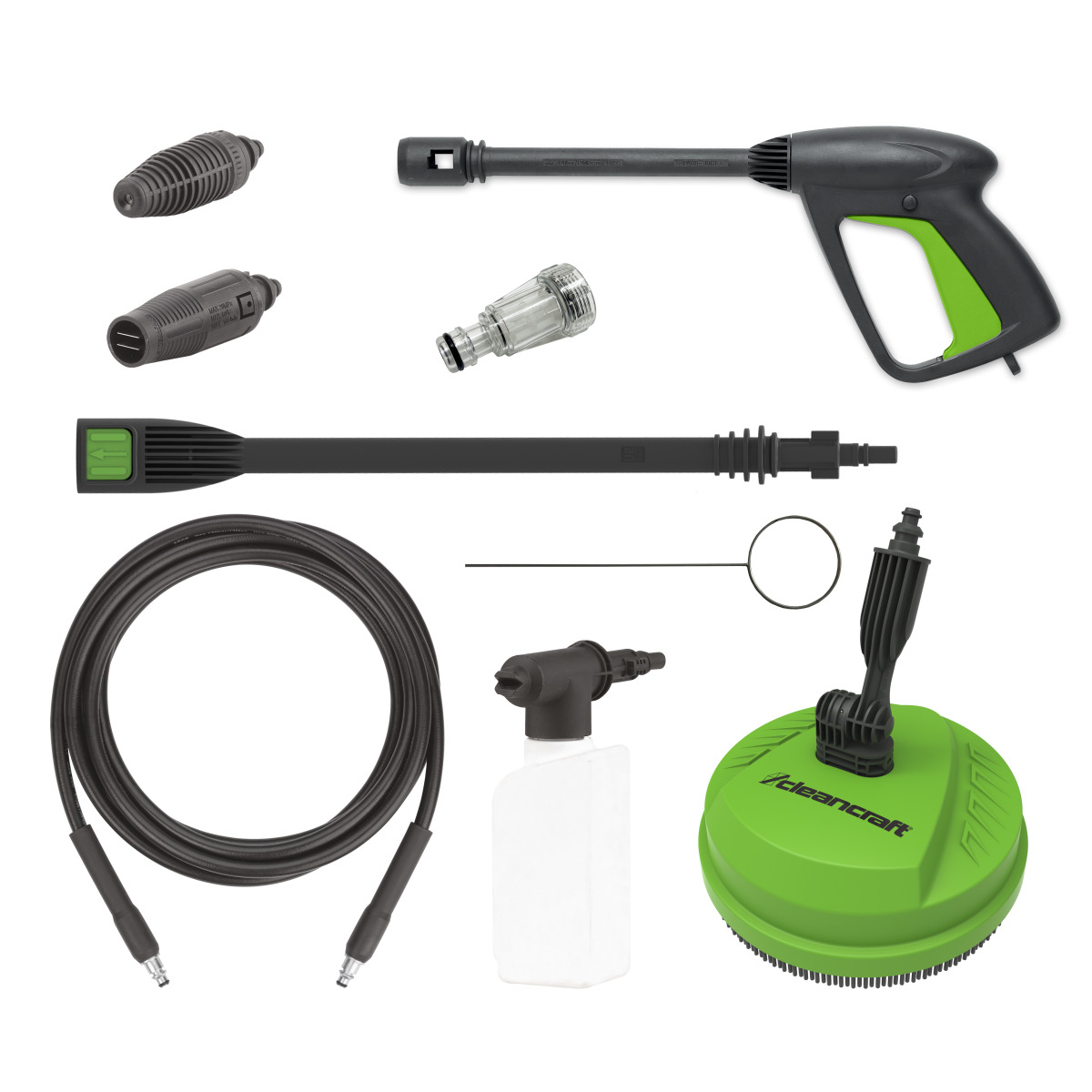

Scope of Delivery | محتويات الطرد |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Height (product) approx.650 mm
- Length (product) approx.280 mm
- Net weight approx.5.9 kg
- Width/depth (product) approx.240 mm
Equipment
- High pressure hose pressure bearingtextile insert
- High pressure hose length5 m
- Pump controlTotal Stop
- Self-priming pump✔
- Water filter✔
- Cylinder head materialAluminium
- Piston materialStainless steel
- Hose connection manual spray gunCLICK-FAST quick coupling
- Hose connection pump outletCLICK-FAST quick coupling
- Wheels120 mm
Electrical Data
- Motor speed3400 min¯¹
- Mains frequency50 Hz
- Supply voltage230 V
- Input power1,5 kW
- Connection cable length5 m
Pump
- Working pressure80 bar
- Max. pump pressure120 bar
- Max. volume flow390 l/h
- Operating positionstanding
Water connection
- Max water inlet temperature50 °C
Noise emission
- Sound pressure level75 dB(A)
