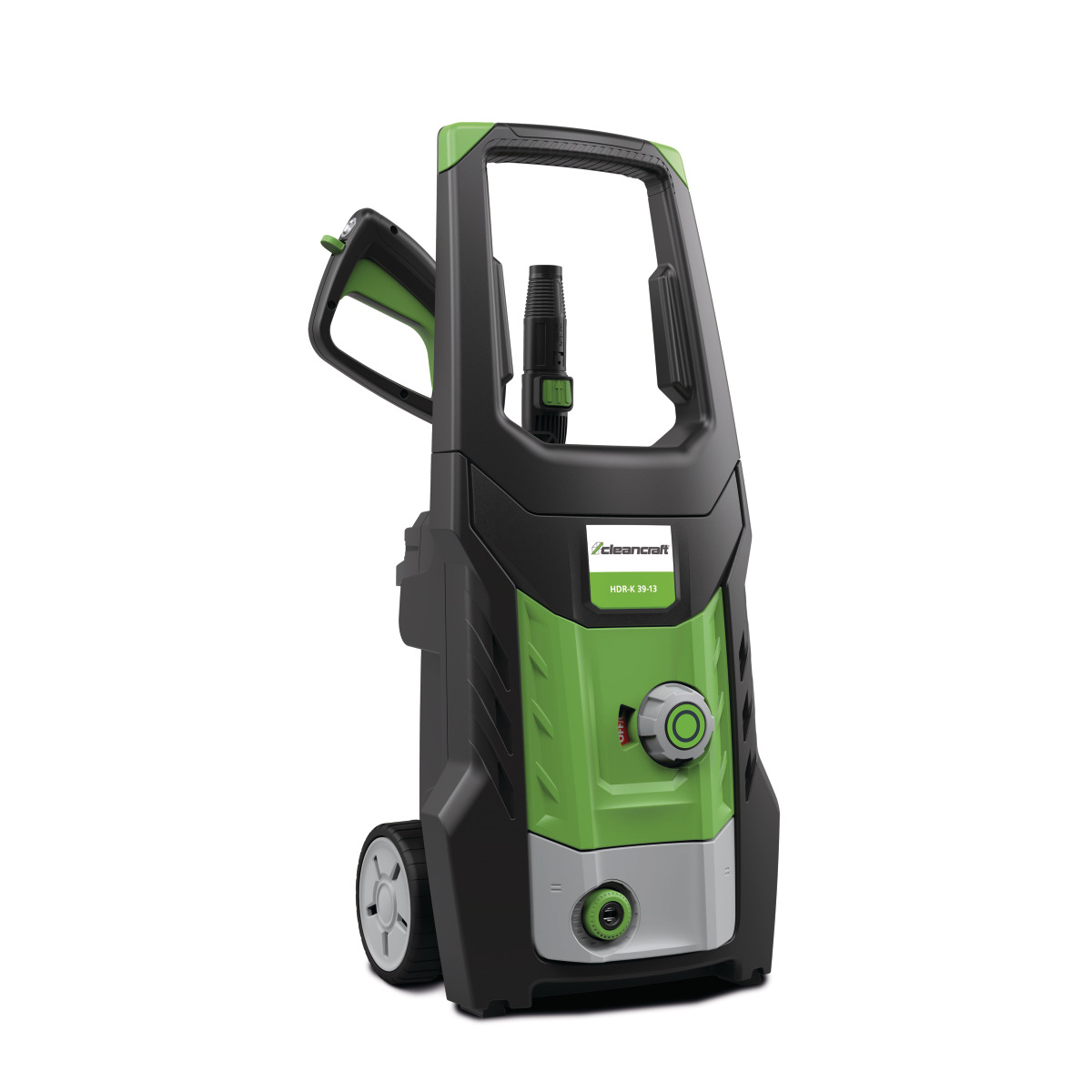

The CLEANCRAFT HDR-K 39-13 is a compact cold-water electric high-pressure cleaner delivering 80 bar working pressure (up to 120 bar) at 390 l/h, driven by a 1.5 kW / 230 V motor. A three-piston axial pump with an aluminium head and stainless steel pistons, a self-priming design and an integrated 0.4 l detergent tank make it practical for everyday cleaning. 87.3 dB(A). 6.3 kg, 287 × 262 × 654 mm.
ماكينة غسيل بالضغط العالي بالماء البارد مدمجة بمحرّك كهربائي، تقدّم ضغط تشغيل 80 bar (أقصى ضغط 120 bar) وتدفّقاً 390 l/h بمحرّك 1.5 kW / 230 فولت. مضخة محورية ثلاثية المكابس برأس ألمنيوم ومكابس ستانلس ستيل، وتصميم ذاتي السحب، وخزّان منظّف مدمج 0.4 l تجعلها عملية للتنظيف اليومي. 87.3 dB(A). الوزن 6.3 kg، الأبعاد 287 × 262 × 654 mm.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Operation & Handling | التشغيل والمناولة |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Height (product) approx.654 mm
- Length (product) approx.287 mm
- Net weight approx.6.3 kg
- Width/depth (product) approx.262 mm
- Max. height (product) approx.654 mm

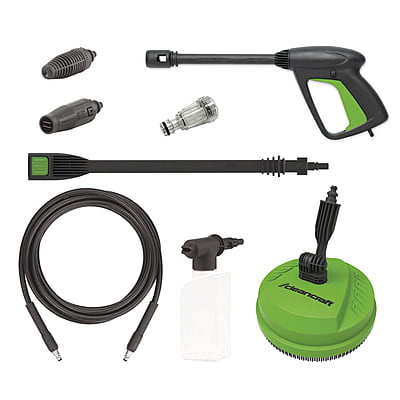

Equipment
- High pressure hose pressure bearingPVC
- High pressure hose length5 m
- Self-priming pump✔
- Water filter✔
- Cylinder head materialAluminium
- Piston materialStainless steel
- Hose connection manual spray gunquick coupling
- Hose connection pump outletquick coupling
- Wheels120 mm
- Cleaning agent tank0.4 l
Electrical Data
- Mains frequency50 Hz
- Supply voltage230 V
- Input power1.5 kW
- Connection cable length5 m
Pump
- Working pressure80 bar
- Max. pump pressure120 bar
- Max. volume flow390 l/h
- Operating positionstanding
- Pump designationYL11
Water connection
- Max water inlet temperature50 °C
Noise emission
- Sound pressure level87.3 dB(A)
- Explanation about sound pressure levelISO 60704-1
