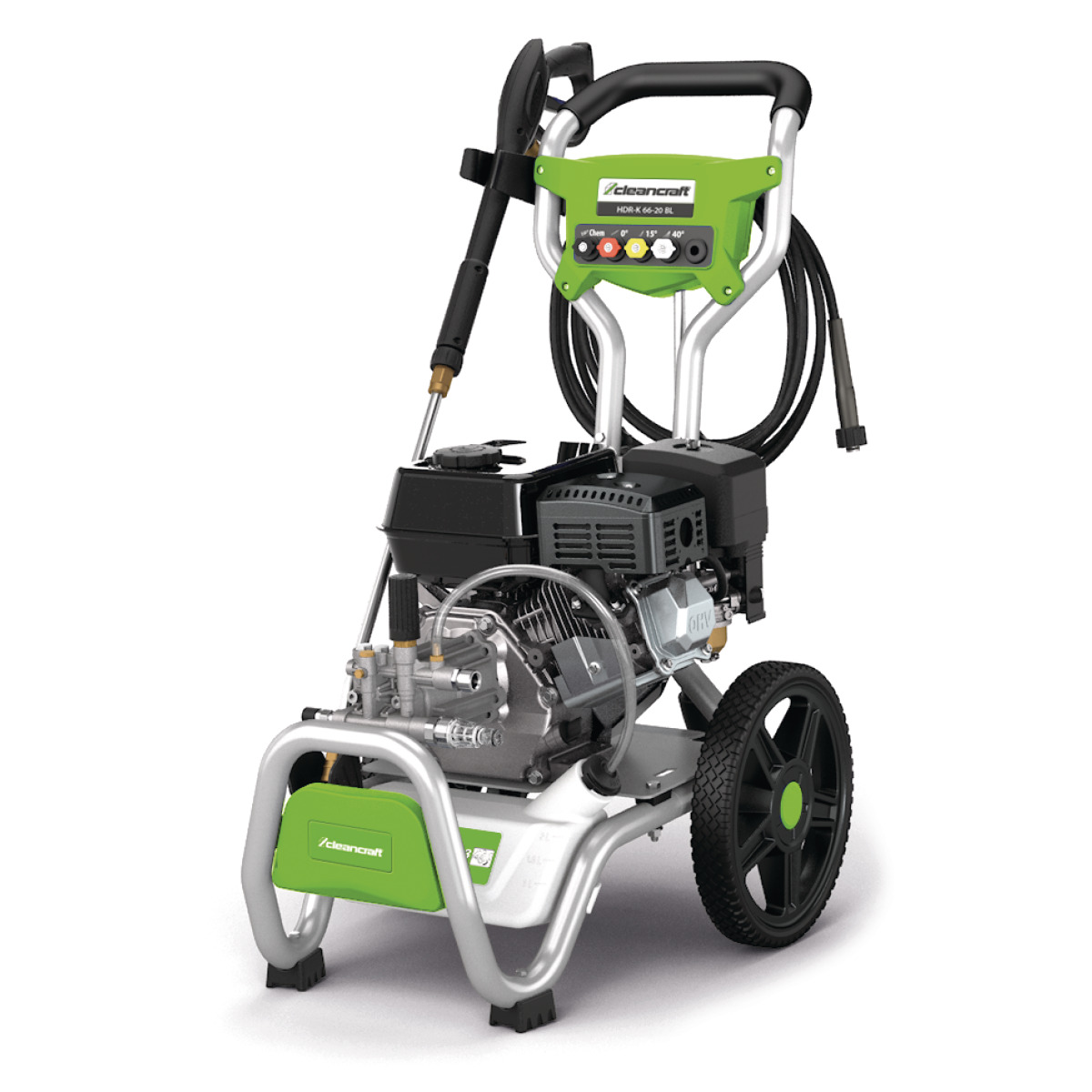

The CLEANCRAFT HDR-K 66-20 BL is a petrol-engine cold-water high-pressure cleaner that works independently of mains power. It delivers 140 bar working pressure (200 bar max pump) and 660 l/h flow, driven by a petrol engine running at 3400 RPM from a 3.6 l fuel tank. Aluminium pump head with stainless steel piston, steel-reinforced 8 m hose and an aluminium frame with anti-vibration feet. 87.5 dB(A). 31.4 kg, 520 × 690 × 565 mm.
ماكينة غسيل بالضغط العالي بالماء البارد بمحرّك بنزين، تعمل باستقلال عن الكهرباء. تقدّم ضغط تشغيل 140 bar (أقصى ضغط مضخة 200 bar) وتدفّقاً 660 l/h، بمحرّك بنزين يدور بسرعة 3400 RPM من خزان وقود سعة 3.6 l. رأس مضخة من الألمنيوم بمكبس ستانلس ستيل، وخرطوم مقوّى بالفولاذ بطول 8 m، وإطار ألمنيوم بأقدام مانعة للاهتزاز. 87.5 dB(A). الوزن 31.4 kg، الأبعاد 520 × 690 × 565 mm.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|

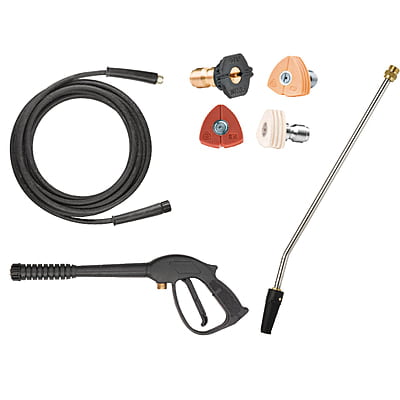

Scope of Delivery | محتويات الطرد |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Height (product) approx.565 mm
- Length (product) approx.520 mm
- Net weight approx.31.4 kg
- Width/depth (product) approx.690 mm
Equipment
- High pressure hose pressure bearingSteel reinforcement
- High pressure hose length8 m
- Cylinder head materialAluminium
- Piston materialstainless steel
Electrical Data
- Motor speed3400 min¯¹
- Motor speed deviation+/- 200 min¯¹
Pump
- Working pressure140 bar
- Max. pump pressure200 bar
- Max. volume flow660 l/h
- Operating positionstanding
Water connection
- Max water inlet temperature50 °C
Noise emission
- Sound pressure level87.5 dB(A)
- Explanation about sound pressure levelEN60704-1
Supplies
- Fuel tank capacity3,6 l
Storefront Filters
- Water TemperatureCold Water
- DrivePetrol Engine
- Working Pressure121–160 bar
- Flow Rate501–750 l/h
