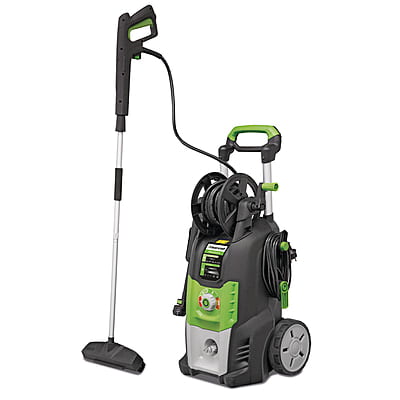

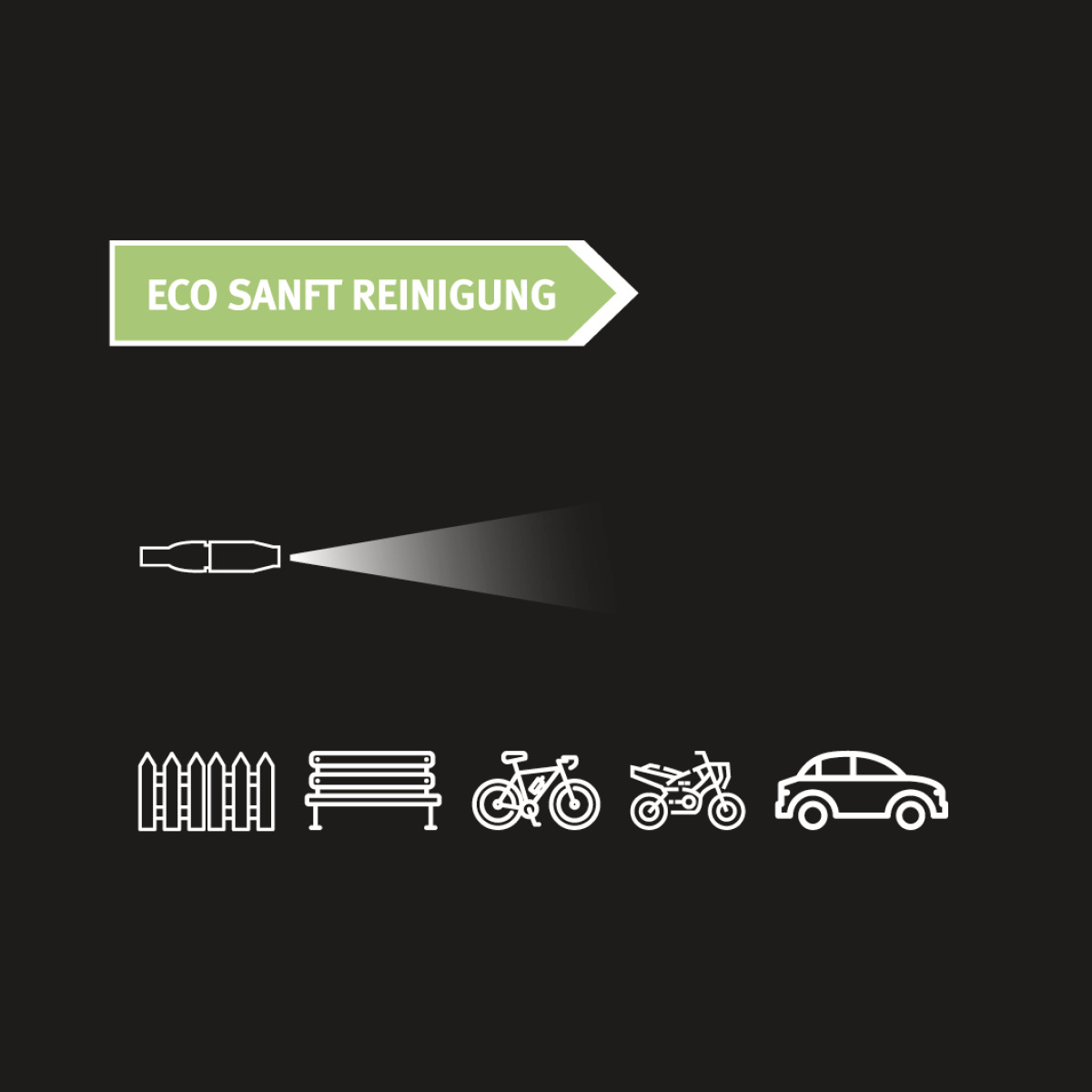

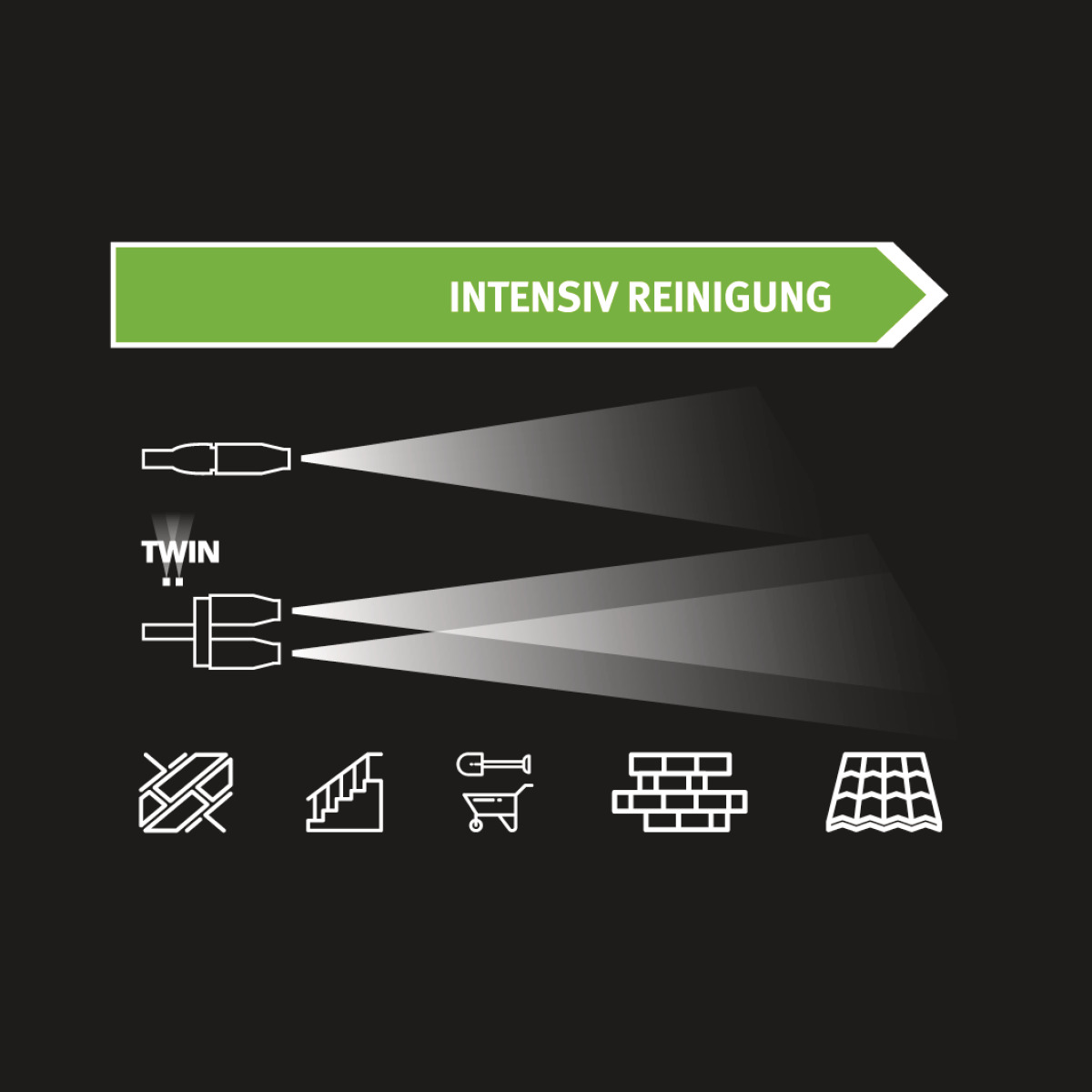

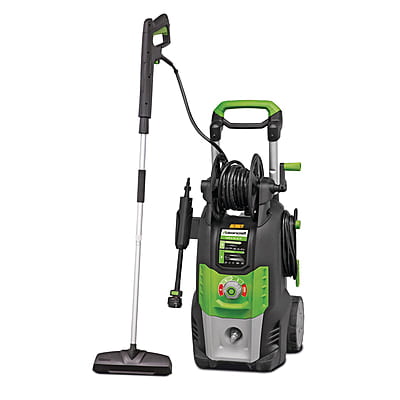

The CLEANCRAFT HDR-K 85-16 TF is a cold-water electric high-pressure cleaner with a patented Dualtech twin-pump system that gives a high flushing effect and two selectable cleaning modes. It delivers 107 bar working pressure (up to 160 bar), driven by a 2.7 kW / 230 V motor, with a three-piston axial pump, an aluminium head and stainless steel pistons, Total-Stop control and an integrated 8 m hose reel. 82.6 dB(A). 14.6 kg, 449 × 388 × 895 mm.
ماكينة غسيل بالضغط العالي بالماء البارد بمحرّك كهربائي بنظام Dualtech ثنائي المضخّتين الحاصل على براءة اختراع يمنح تأثير شطف عالياً ووضعَي تنظيف قابلين للاختيار. تقدّم ضغط تشغيل 107 bar (أقصى ضغط 160 bar) بمحرّك 2.7 kW / 230 فولت، مع مضخة محورية ثلاثية المكابس ورأس ألمنيوم ومكابس ستانلس ستيل، ونظام الإيقاف التلقائي عند تحرير الزناد، وبكرة خرطوم مدمجة 8 m. 82.6 dB(A). الوزن 14.6 kg، الأبعاد 449 × 388 × 895 mm.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Operation & Handling | التشغيل والمناولة |
|
|

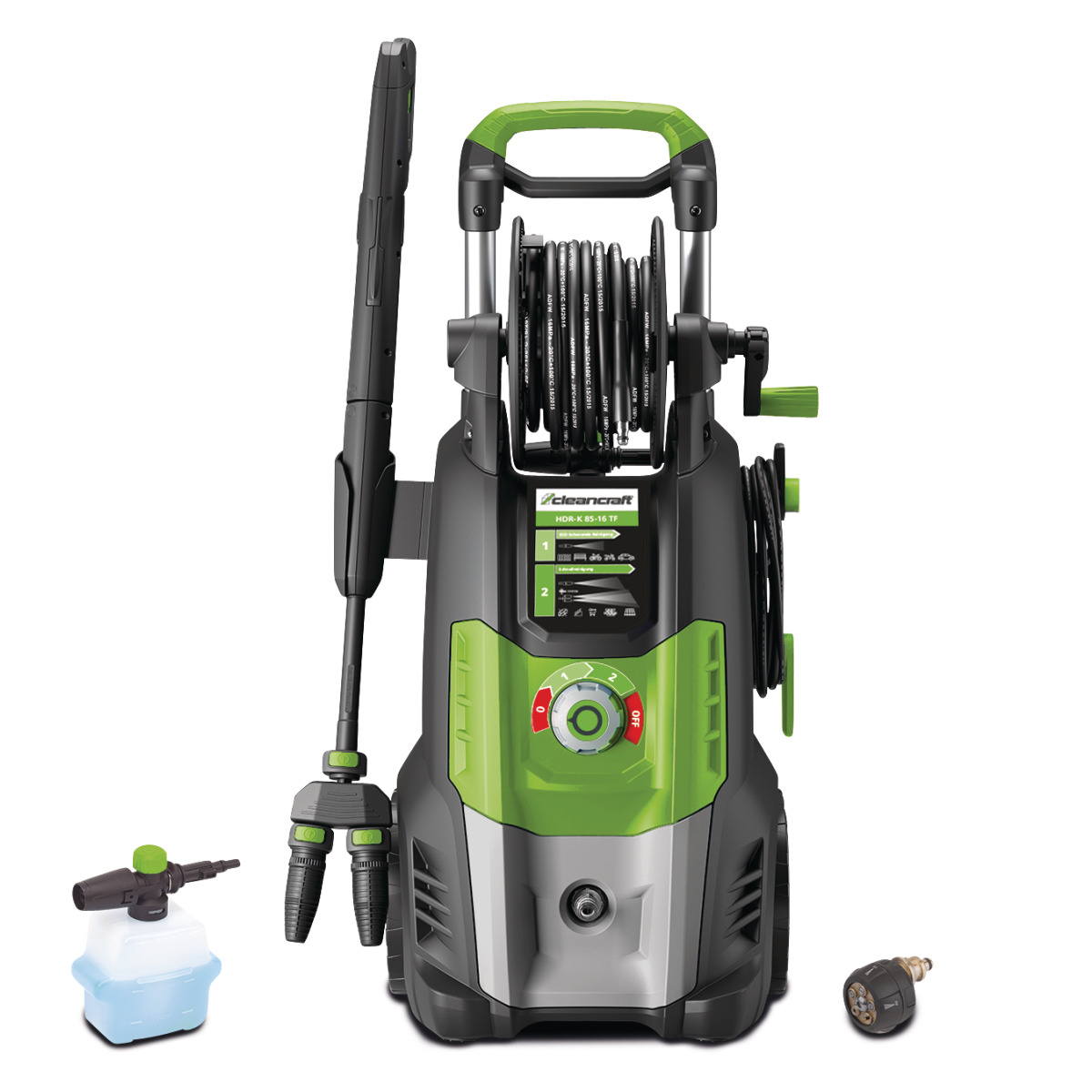

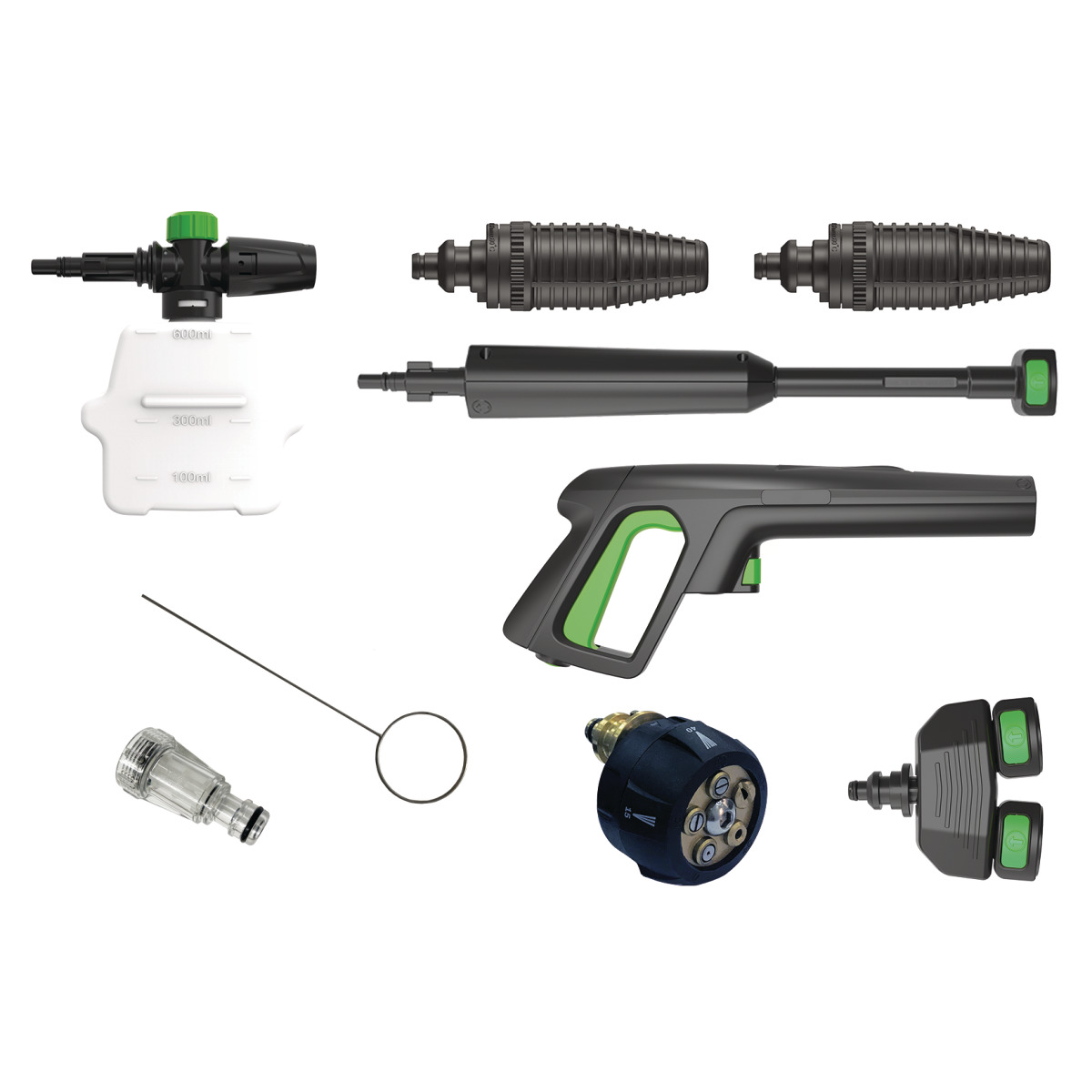

Scope of Delivery | محتويات الطرد |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Dimensions and weights
- Height (product) approx.895 mm
- Length (product) approx.449 mm
- Net weight approx.14.6 kg
- Width/depth (product) approx.388 mm
Equipment
- High pressure hose pressure bearingTextile insert
- High pressure hose length8 m
- Pump controlTotal Stop
- Water filter✔
- Cylinder head materialAluminium
- Piston materialStainless steel
- Hose connection manual spray gunCLICK-FAST quick coupling
- Hose connection pump outletCLICK-FAST quick coupling
- Wheels200 mm
- Integrated hose reel✔
Electrical Data
- Motor speed3400 min¯¹
- Mains frequency50 Hz
- Supply voltage230 V
- Input power2.7 kW
- Connection cable length5 m
Pump
- Working pressure107 bar
- Max. pump pressure160 bar
- Operating positionstanding
- Maximum flow rate at stageStage1: 425, Stage 2: 850 l/h
- Work delivery rate at stepStage 1: 420, Stage 2: 570 l/h
Water connection
- Max water inlet temperature50 °C
Noise emission
- Sound pressure level82.6 dB(A)
