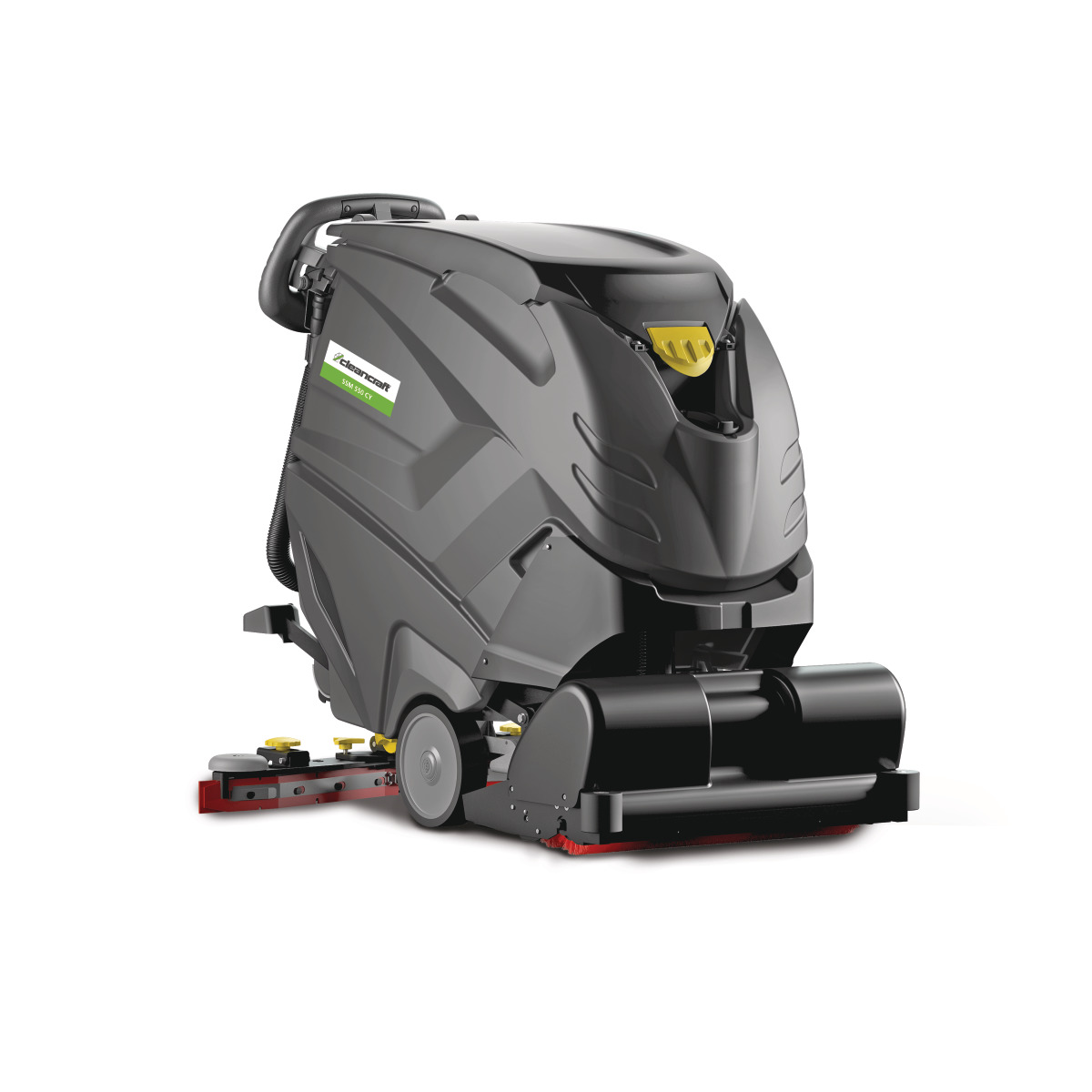

The CLEANCRAFT SSM 550 CY is a battery walk-behind scrubber-dryer with twin cylindrical roller brushes for hard floors and carpets, cleaning and drying at up to 2475 m²/h over a 550 mm width, at 0 – 4.5 km/h. An 815 mm squeegee with 123 mbar extraction feeds a two-tank system — 50 l solution, 50 l recovery. Two 12 V / 105 Ah gel batteries give up to 210 min, recharging in 7 h. 59 dB(A). 197 kg, 1329 × 563 × 1033 mm.
ماكينة جلي وتجفيف الأرضيات بالدفع اليدوي تعمل بالبطارية بفرشتين أسطوانيّتين دوّارتين للأرضيات الصلبة والسجّاد، تنظّف وتجفّف بإنتاجية تصل إلى 2475 m²/h على عرض 550 mm، بسرعة 0 – 4.5 km/h. ممسحة مطاطية 815 mm بقوة سحب 123 mbar تغذّي نظام خزانين — 50 l محلول و50 l مياه عادمة. بطاريتا جل 12 فولت / 105 Ah تمنحان حتى 210 min وتُشحنان خلال 7 h. 59 dB(A). الوزن 197 kg، الأبعاد 1329 × 563 × 1033 mm.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features | المزايا الهندسية الرئيسية |
|
|
Operation & Handling | التشغيل والمناولة |
|
|
Scope of Delivery | محتويات الطرد |
|
|
Need help choosing? Our engineers will match the right machine to your requirements — request a quote.
تحتاج مساعدة في الاختيار؟ مهندسونا يساعدونك في اختيار الماكينة المناسبة لمتطلباتك — اطلب عرض سعر.
Performance
- Working capacity2475 m²/h
- Maximum ramp gradient2 %
- Speed from to0 – 4.5 km/h
- Vibration level1 m/s²
Dimensions and weights
- Height (product) approx.1033 mm
- Length (product) approx.1329 mm
- Net weight approx.197 kg
- Width/depth (product) approx.563 mm
Equipment
- Greywater tank50 l
- Solution tank50 l
- 2 tank system✔
- Automatic water and brush stop✔
- Battery charge status display✔
- Vacuuming railrear
- Operating hours counter✔
- Waste water extractioncan be switched off
Electrical Data
- Power supplyBattery
- Vacuum power380 W
- Total output2350 W
- Battery2 x 12V 105Ah Gel
- Battery life max.210 min
- Battery recharge time7 h
- Power brushes motor850 W
- Type of protectionIPX3
- Power traction motor0,2 kW
- Number of brush motors2
Brushes
- Brush diameter100 mm
- Speed brushes1360 min¯¹
- Working width with central brush550 mm
- Contact pressure70 g/cm²
- Contact pressure brushes18 kg
Extraction
- Squeegee width815 mm
- Vacuum123 mbar
Noise emission
- Sound pressure level Lp59 dB(A)
