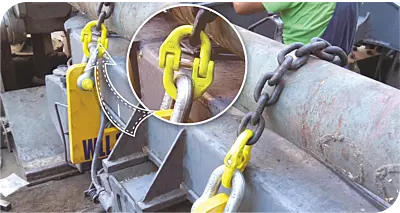

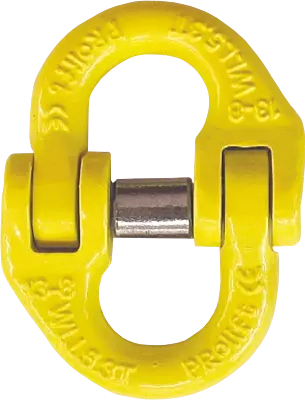

The PROlift PRO-KL Connecting Link (European Type) is engineered to securely connect all non-clevis chain accessories. Manufactured to strict EN 1677-1 standard specifications, it features a reliable 4:1 Safety Factor for heavy-duty lifting. Fully CE marked and batch numbered for complete traceability, these robust links utilize a secure pin and bolt mechanism to create safe, customized rigging assemblies.
تم تصميم وصلة الربط الأوروبية PROlift PRO-KL (European Type) لربط جميع ملحقات الجنازير (السلاسل) التي لا تحتوي على نظام Clevis بأمان وموثوقية. مُصنعة وفقاً لمعايير EN 1677-1 الصارمة، وتتميز بمعامل أمان 4:1 لعمليات الرفع الشاقة. جميع الوصلات مميزة بعلامة CE ورقم التشغيلة لضمان قابلية التتبع الكاملة، وتعتمد على آلية مسمار ودبوس قوية لتشكيل أجهزة رفع آمنة ومخصصة.
Downloads
Key Engineering Features:
- European Type Design: Specifically designed to securely connect all lifting chain accessories that do not use a clevis-type fastening system.
- Rigorous Safety Standard: Manufactured in strict accordance with the EN 1677-1 standard, delivering a Minimum Breaking Load (MBL) that is 4 times the Working Load Limit (WLL).
- Spare Parts Accessibility: For extended product life and cost-effective maintenance, the fastening bolt and pin are readily available as replacement spare parts.
- Fully Traceable & Certified: Every connecting link is permanently marked with the batch code, manufacturer logo, size, and CE mark to ensure seamless safety compliance and inspections.
المميزات التقنية الرئيسية:
- تصميم أوروبي: مصممة خصيصاً لربط جميع ملحقات الجنازير (السلاسل) التي لا تستخدم نظام التثبيت من نوع Clevis.
- معايير أمان صارمة: مُصنعة وفقاً للمواصفة القياسية EN 1677-1، مما يوفر حداً أدنى لحمل الكسر (MBL) يعادل 4 أضعاف حد حمل العمل (WLL).
- توفر قطع الغيار: لضمان عمر أطول للمنتج وسهولة الصيانة، تتوفر مسامير ودبابيس التثبيت كقطع غيار منفصلة للاستبدال.
- قابلية التتبع والاعتماد (CE): كل وصلة ربط مميزة بوضوح برقم التشغيلة، شعار الشركة المصنعة، المقاس، وعلامة CE لضمان الامتثال لاشتراطات السلامة والفحص.
Performance Specifications / مواصفات الأداء
| Model Number | WLL (t) | MBL (t) | Weight (kg/pc) |
|---|---|---|---|
| PRO-KL-06.06 | 1.12 | 4.48 | 0.08 |
| PRO-KL-07.08 | 2 | 8 | 0.15 |
| PRO-KL-10.10 | 3.15 | 12.6 | 0.3 |
| PRO-KL-13.13 | 5.3 | 21.2 | 0.7 |
| PRO-KL-16.16 | 8 | 32 | 1.1 |
| PRO-KL-18.20 | 12.5 | 50 | 1.8 |
| PRO-KL-22.22 | 15 | 60 | 3.2 |
| PRO-KL-26.26 | 21.2 | 84.8 | 4.5 |
| PRO-KL-32.32 | 31.5 | 126 | 9 |
* WLL: Working Load Limit for lifting operations.
* MBL: Minimum Breaking Load (Safety Factor 4:1).
*Detailed physical dimensions are available in the official technical datasheet.
