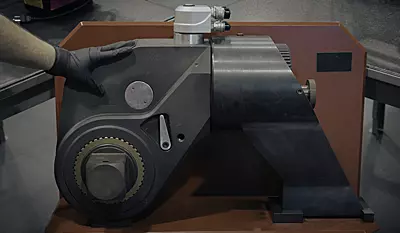

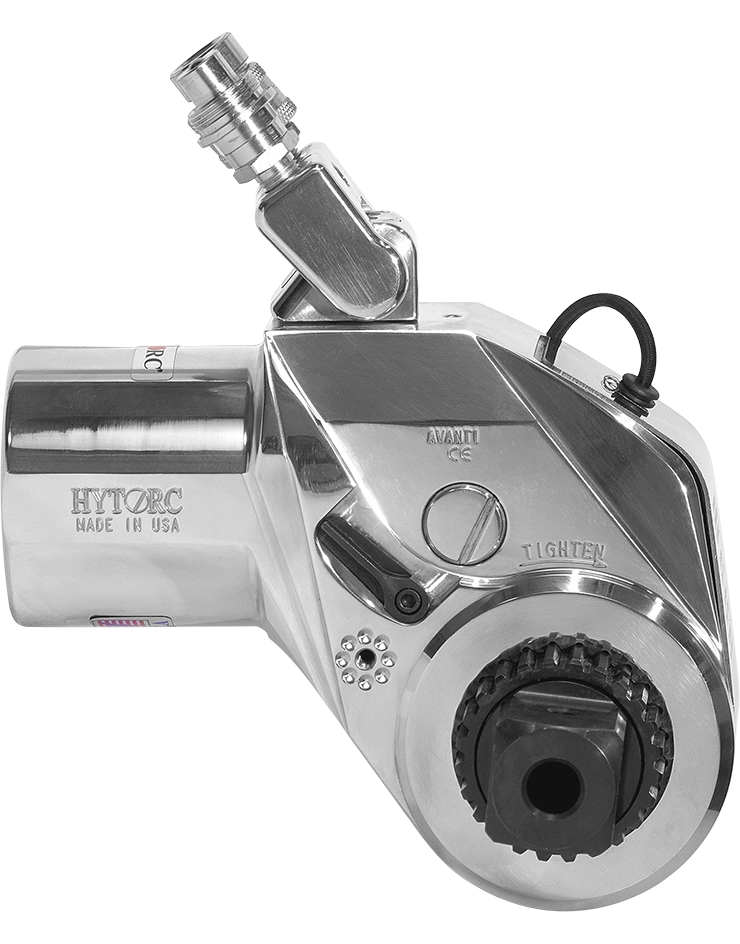

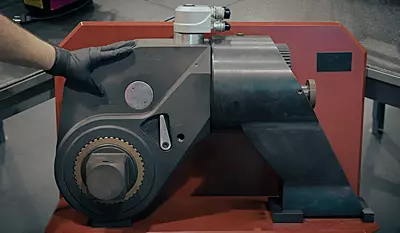

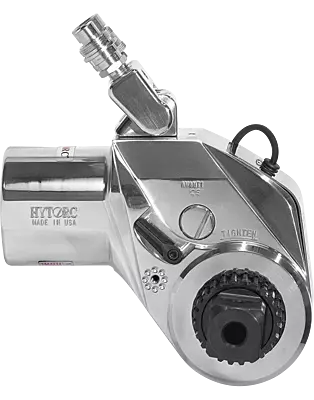

The AVANTI Hydraulic Torque Wrench is HYTORC's largest tool, delivering a massive maximum torque output of over 187,683 Nm. Featuring a patented reaction drive and full compatibility with the HYTORC Washer and Nut, it ensures safe, accurate, and high-capacity bolting for the most demanding heavy industry applications.
- REACTION DRIVE
- TORQUE & ANGLE DIAL
- MULTI-USE SYSTEM
- LOCK-UP RELEASE LEVER
يُعد مفتاح العزم الهيدروليكي HYTORC AVANTI الأداة الأكبر في فئتها، حيث يوفر عزم دوران هائل يصل إلى أكثر من 187,683 نيوتن متر. يتميز بمحرك رد فعل حاصل على براءة اختراع وتوافق تام مع حلقات وصواميل HYTORC، مما يضمن عمليات ربط آمنة ودقيقة للقدرات العالية في تطبيقات الصناعات الثقيلة.
- محرك رد فعل متطور
- قرص لضبط العزم والزاوية
- نظام متعدد الاستخدامات
- ذراع تحرير القفل
Downloads
Largest Torque Range: The largest torque range in its class, spanning from 113 to 130,000 ft.-lbs (153 - 187,764 N.m)

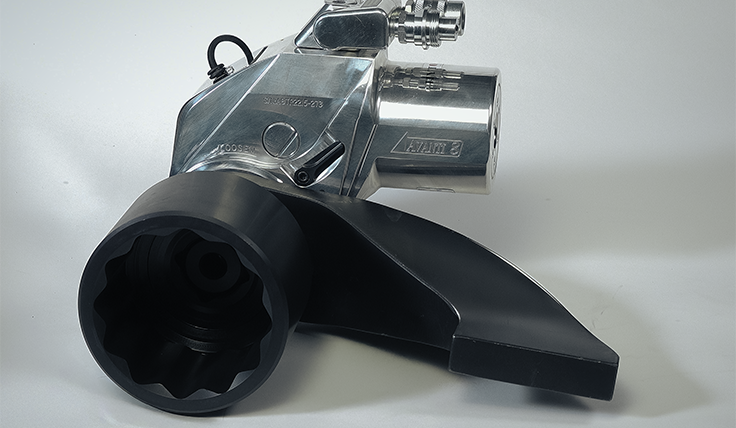

Side/Coaxial Reaction Arm: Lets you position the tool around the bolt, regardless of the arm's orientation.

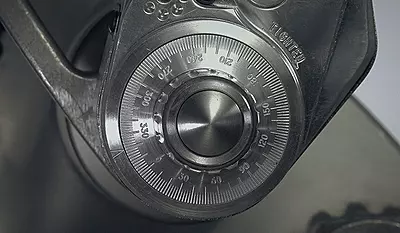

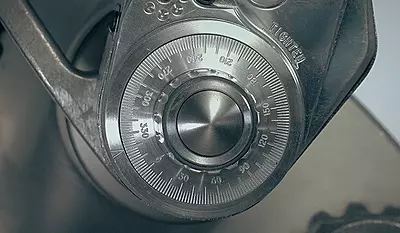

Torque & Angle Options: When paired with our Torque & Angle Dial accessory, gives you precise control and flexibility in various applications.
Product Specifications
| Model Number | Square Drive (in) | Torque Min (Nm) | Torque Max (Nm) | Weight (kg) |
|---|---|---|---|---|
| AVANTI-.7 | 3/4 | 156 | 1,040 | 1.40 |
| AVANTI-1 | 3/4 | 263 | 1,714 | 1.81 |
| AVANTI-3 | 1 | 607 | 4,103 | 3.63 |
| AVANTI-5 | 1-1/2 | 1,091 | 7,281 | 6.30 |
| AVANTI-8 | 1-1/2 | 1,559 | 10,521 | 9.41 |
| AVANTI-10 | 1-1/2 | 2,305 | 15,317 | 11.25 |
| AVANTI-20 | 2-1/2 | 3,742 | 24,255 | 21.63 |
| AVANTI-35 | 2-1/2 | 6,650 | 43,155 | 37.53 |
| AVANTI-50 | 2-1/2 | 9,765 | 62,538 | 57.92 |
| AVANTI-80 | 3-1/2 | 16,222 | 116,187 | 127.23 |
| AVANTI-130 | 3-1/2 | 25,296 | 187,908 | 267.62 |
*Detailed specifications are available in the technical datasheet.
