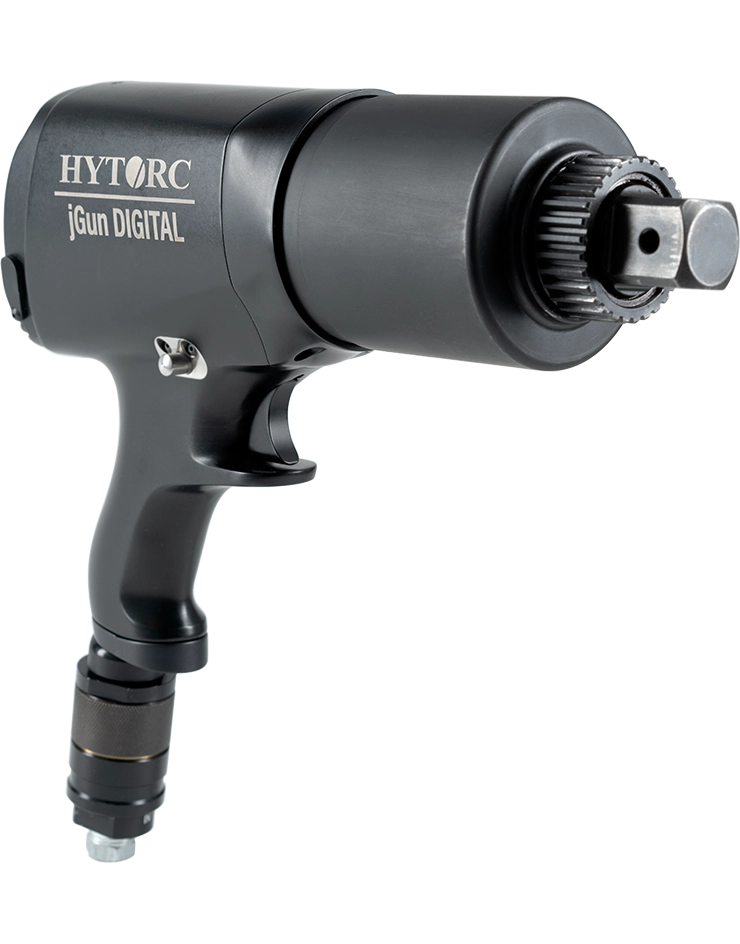

The jGun DIGITAL Single Speed from HYTORC is the world’s first torque adjustable pneumatic multiplier with a digital readout and FRL-free operation. Unlike other systems that require a separate filter, regulator and lubricator system between the air line and the tool, the patented design of the jGun DIGITAL Single Speed eliminates the need for this add-on, offering the highest level of portability and convenience.
DIGITAL READOUT
BUILT-IN TORQUE ADJUSTMENT
INDUSTRIAL-GRADE MOTOR
Downloads
FRL-Free Operation: No filter, regulator, or lubricator means a more seamless operation.
Silencer: Ensures quieter operation of 80 dB or less, reducing risk of associated issues.
Easy-to-Adjust Torque: Make quick and precise torque adjustments.

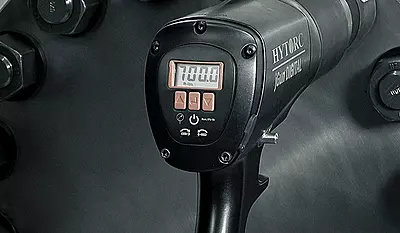

Digital Display: Provides clear and precise torque readings at a glance.
Low Vibration: Designed to minimize vibration, reducing the risk of hand and arm vibration syndrome (HAVS).

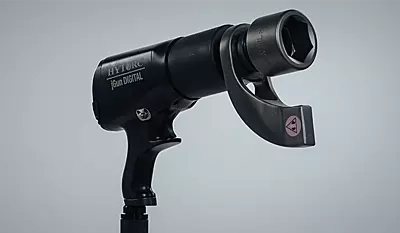

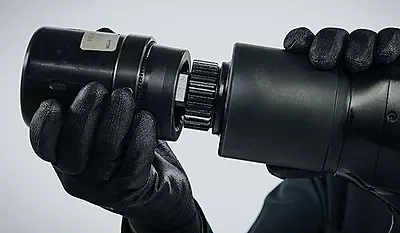

Coaxial Spline: Supports a variety of reaction options to meet diverse bolting needs, including the HYTORC Washer Driver and HYTORC Nut Driver.
Accurate to +/- 5%: Exceptionally precise. Bolt with confidence.
Corrosion-Resistant Motor: Ensures long-lasting performance in the toughest conditions.
Ergonomic: Designed to minimize fatigue with a more comfortable grip.
Lightweight & Durable: Constructed with high quality aircraft aluminum.
Pneumatic Compatibility: Can be used with a variety of pneumatic connectors, giving you flexibility and convenience on the job.
Available jGun DIGITAL Single Speed models: JGUN-D.25, JGUN-D.5, JGUN-D1, JGUN-D2, JGUN-D3, JGUN-D5, JGUN-D6.5, JGUN-D8.
Product Specifications
| Model Number | Square Drive (in) | Torque Min (Nm) | Torque Max (Nm) | Speed (RPM) | Weight (kg) |
|---|---|---|---|---|---|
| JGUN-D.25 | 1/2 | 68 | 339 | 29.0 | 3.75 |
| JGUN-D.5 | 3/4 | 203 | 731 | 10.5 | 4.75 |
| JGUN-D1 | 3/4 | 440 | 1,750 | 6.5 | 6.40 |
| JGUN-D2 | 1 | 732 | 2,833 | 5.5 | 7.50 |
| JGUN-D3 | 1 | 1,161 | 4,311 | 5.0 | 8.05 |
| JGUN-D5 | 1-1/2 | 1,559 | 6,846 | 2.5 | 12.85 |
| JGUN-D6.5 | 1-1/2 | 3,118 | 8,812 | 2.4 | 9.98 |
| JGUN-D8 | 1-1/2 | 3,118 | 10,709 | 1.5 | 17.45 |
*Detailed specifications are available in the technical datasheet.
