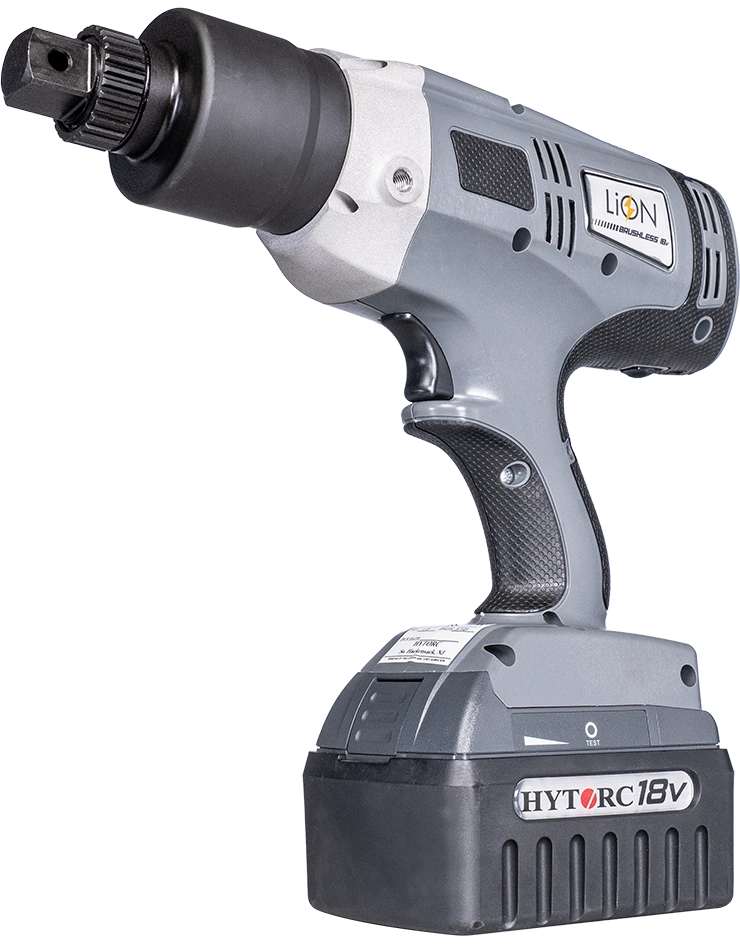

The LION GUN Electric Torque Tool offers unmatched portability and convenience, making safe and accurate bolting simpler than ever. This 18V battery-powered tool, with capacity up to 700 ft.-lbs. (949 Nm), delivers industrial grade power without the weight. Built-in data recording provides a permanent record of the work performed. This tool is compatible with conventional sockets, the HYTORC Washer, and the HYTORC Nut
DATA CAPTURE
DOCUMENTATION
IMPROVED SAFETY
FLEET MANAGEMENT
Downloads
Cord-free & Lightweight: The ultimate in convenience - take it anywhere on a job site.
Intuitive Interface: You'll appreciate the seamless setup and easy-to-use UI.
Low Vibration: Reduce strain on your hands and work more comfortably.
Accurate to +/- 5%: Exceptionally precise. Bolt with confidence.
Product Specifications
| Model Number | Square Drive (in) | Torque Min (Nm) | Torque Max (Nm) | Speed (RPM) | Weight (kg) |
|---|---|---|---|---|---|
| LIONGUN-.060 | 1/2 | 20 | 81 | 65 | 3.04 |
| LIONGUN-.25 | 1/2 | 34 | 339 | 11.6 | 3.32 |
| LIONGUN-.7 | 3/4 | 95 | 949 | 4.1 | 3.74 |
| LIONGUN-.060-BSM | 1/2 | 20 | 81 | 65 | 3.04 |
| LIONGUN-.25-BSM | 1/2 | 34 | 339 | 11.6 | 3.32 |
| LIONGUN-.7-BSM | 3/4 | 95 | 949 | 4.1 | 3.74 |
*Detailed specifications are available in the technical datasheet.
