The MXT+ Hydraulic Torque Wrench combines the best of HYTORC’s original MXT Wrench with the latest advanced technology, including coaxial reaction drive, auto-release feature and a new cycle counter.
The MXT+ Wrench is constructed from aircraft-grade aluminum* for rugged industrial use. It can handle more than 5,000 duty cycles at max torque. This wrench will outlast all others and provide consistently repeatable performance, even under the harshest conditions.
* The 1 and the 0.7 are made of steel
Downloads

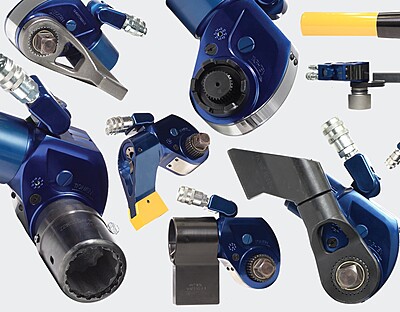

3 Tools in 1: Multiple arm configuration options for unparalleled versatility - Side/Coaxial Reaction, Rear Reaction, Reaction-Free
Wide Reaction Fixture Support: Our largest variety of reaction options to meet bolting needs for any application.
Auto Release: No need to flip a lever to unlock the tool from an application.
2-Year Hassle-Free Warranty: Support and reliability are always at your fingertips.

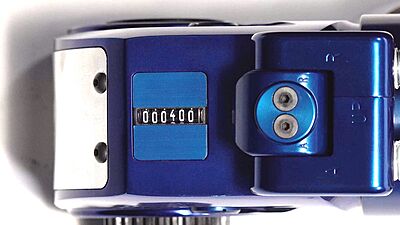

Cycle Counter: Monitor your productivity, keeping you informed about tool usage and performance.
Repeatable: Consistent results with every bolt. Boost confidence and efficiency.
Included Spline Cover: Protects the tool's rear spline from wear and tear, extending its lifespan.
Angle of Rotation: Allows precise control over the angle of rotation for bolting applications demanding exact results.
Torque & Angle Options: Bolt with both torque and angle options on a single tool.
Product Specifications
| Model Number | Square Drive (in) | Torque Min (Nm) | Torque Max (Nm) | Weight (kg) |
|---|---|---|---|---|
| MXTP-01 | 3/4 | 278 | 1,843 | 3.08 |
| MXTP-03 | 1 | 629 | 4,226 | 3.44 |
| MXTP-05 | 1-1/2 | 1,131 | 7,575 | 8.39 |
| MXTP-10 | 1-1/2 | 2,482 | 16,468 | 11.33 |
*Detailed specifications are available in the technical datasheet.
