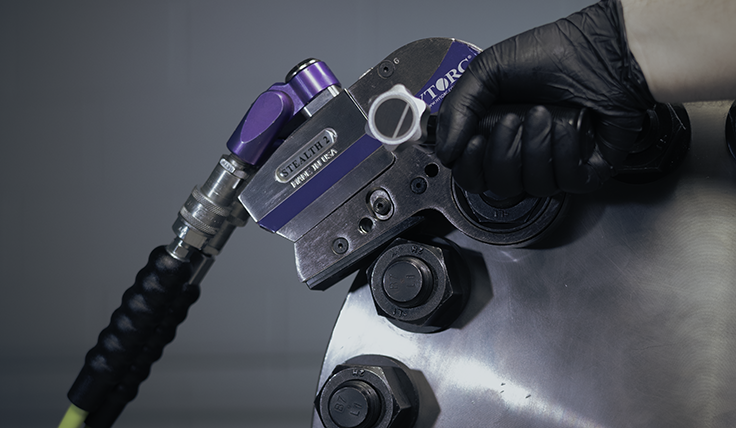

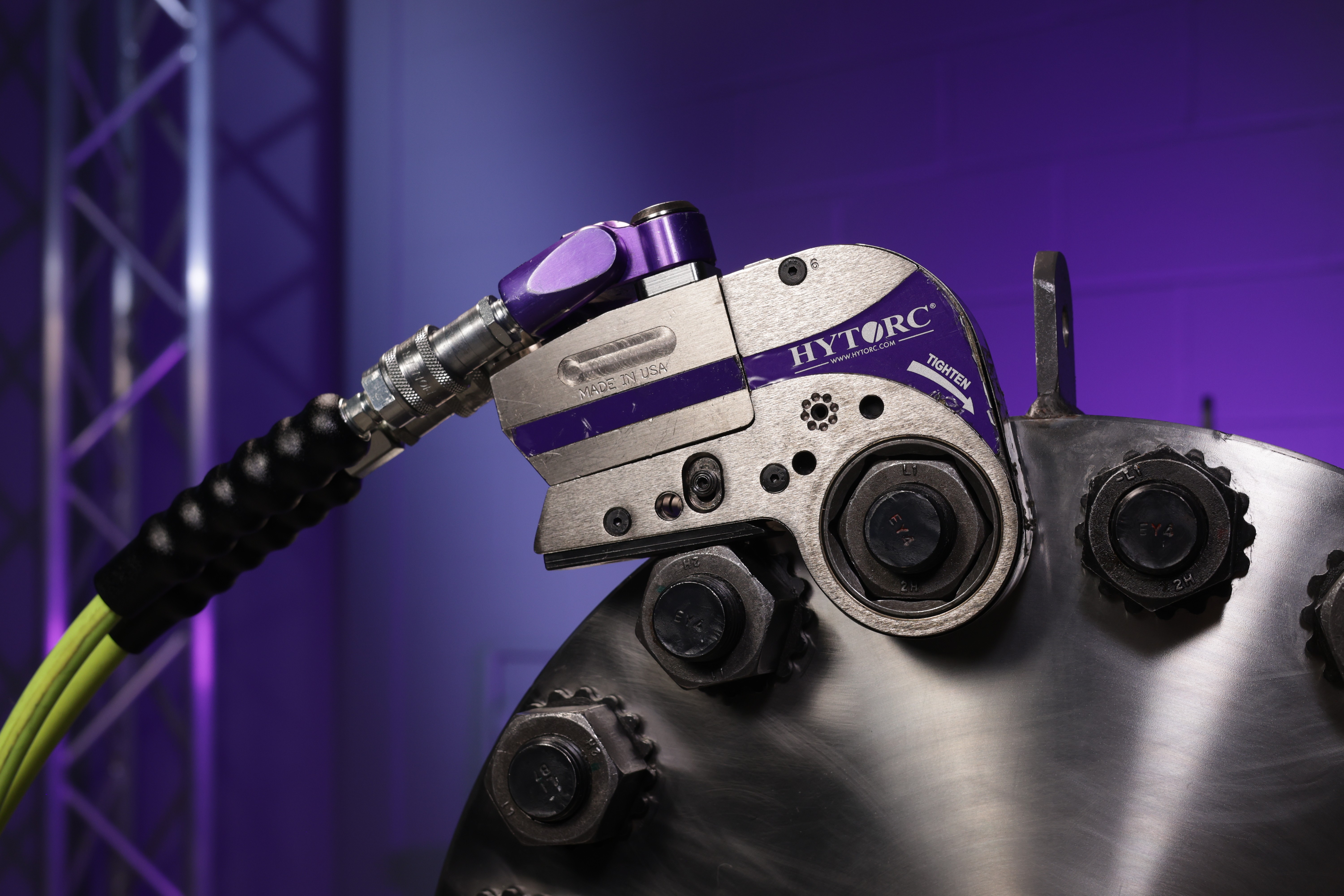

The STEALTH® Hydraulic Torque Wrench features an advanced low-clearance, slim design to easily fit tight spaces. Its dual-piston powerhead delivers exceptional speed, while full compatibility with the HYTORC Washer and Nut ensures safe, hands-free bolting. ATEX-certified models are available.
- LOCK-ON RELEASE BUTTON
- REACTION WASHER COMPATIBLE
- HANDS-FREE OPERATION
يتميز مفتاح العزم الهيدروليكي HYTORC STEALTH بتصميم نحيف متطور للعمل في المساحات الضيقة جداً التي لا يمكن للأدوات الأخرى الوصول إليها. يوفر الرأس المزدوج المكبس سرعة وقوة استثنائية، بينما يضمن توافقه الكامل مع حلقات وصواميل HYTORC تشغيلاً آمناً وموثوقاً. (تتوفر طرازات معتمدة من ATEX).
- زر تثبيت وتحرير القفل
- متوافق مع حلقات (HYTORC Washer)
- تشغيل آمن بدون استخدام اليدين
Downloads

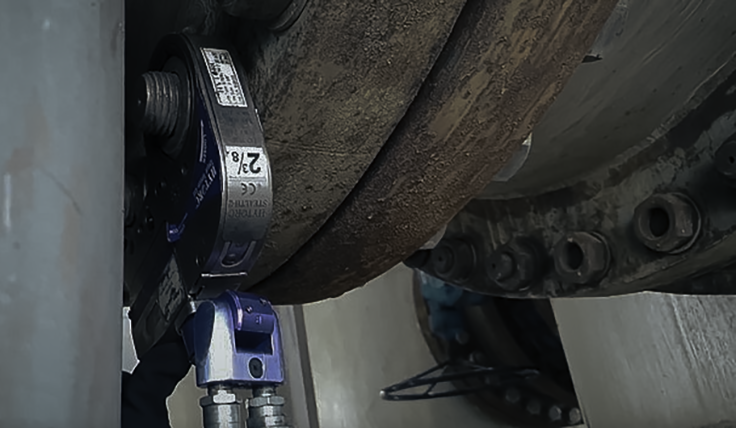

Low Clearance: Fits into places other torque tools can't.
Hands-Free Operation: The optional tool retainer makes bolting safer.
ATEX Option: Can be fitted for use in explosive environments.
Integrated Reaction-Free Links: Eliminate kickback, ensuring smooth and safe torque application.
Repeatable: You'll get consistent results from bolt to bolt.
Perfect for Subsea Operations: Operates effectively at the depths you need it to.
6 & 12-Point Links: Available in popular sizes for added convenience.
Torque & Angle: Allows for both torque and angle adjustments.
Reaction Fixtures: Supports a variety of reaction options to meet diverse bolting needs.
Integrable: Compatible with robotic bolting systems for seamless integration.
Product Specifications
| Model Number | Torque Min (Nm) | Torque Max (Nm) | Weight (kg) |
|---|---|---|---|

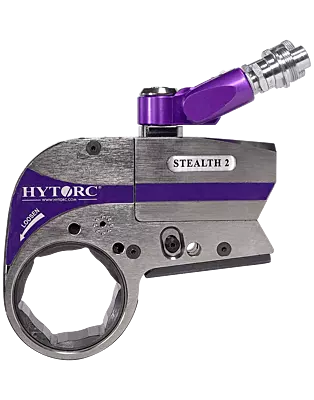

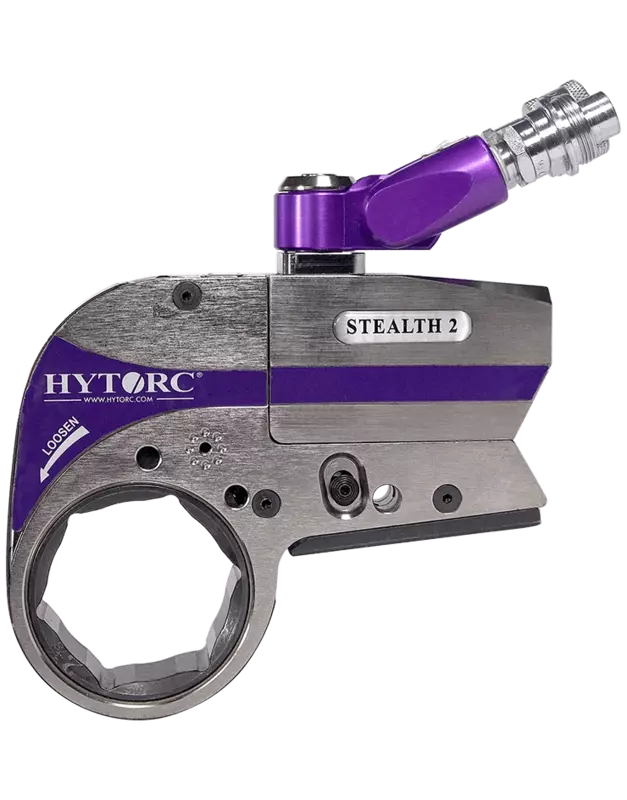

| STEALTH-2 | 377 | 2,534 | 1.81 |
| STEALTH-4 | 818 | 5,450 | 3.00 |
| STEALTH-8 | 1,626 | 10,825 | 4.72 |
| STEALTH-14 | 2,854 | 19,327 | 7.00 |
| STEALTH-22 | 4,406 | 29,658 | 10.40 |
| STEALTH-36 | 6,825 | 48,343 | 18.51 |
*Detailed specifications are available in the technical datasheet.
