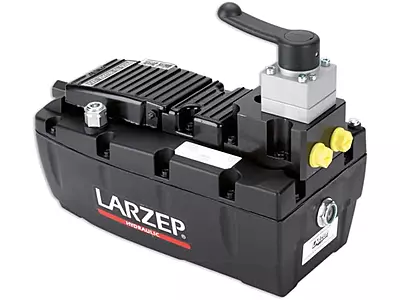

Z-Series Air hydraulic pumps, manual valve
Type
Usable Oil (L)
Downloads
Product Details
Specifications
Product Details
Product Details

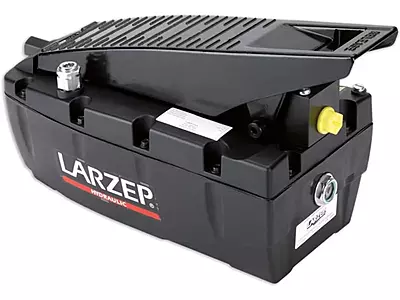

Z-Series
- Pedal acts as the control valve, by controlling advance, hold and retract functions. In 'hold' mode, the pump maintains the output pressure.
- 3/8"-NPT female hydraulic port.
- Working pressure 700 bar.
- Optional steel base plate available.
- Air Inlet Port: 1/4" BSP female.
- Air Pressure: 2,8 - 10 bar.
- Air Consumption: 400 N l/min.

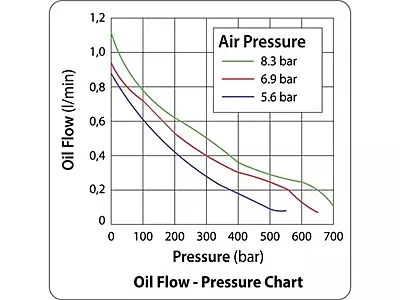

- 700 bar Flow Rate: 0,14 l/min.
- Sound level: 75 dBA
Product Specifications
| Model Number | Acting Type | Oil Capacity (litres) | Weight (kg) |
|---|---|---|---|
| Z12107 | Single Acting | 2,1 | 7,6 |
| Z14007 | Single Acting | 4,0 | 12,5 |
| Z17007 | Single Acting | 7,0 | 15,5 |
| Z19107 | Single Acting | 10,0 | 19,5 |
| Z22107 | Double Acting | 2,1 | 8,8 |
| Z24007 | Double Acting | 4,0 | 13,7 |
| Z27007 | Double Acting | 7,0 | 16,7 |
| Z29107 | Double Acting | 10,0 | 20,7 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeAir Pumps
- Oil Capacity (litres)2.1 - 20
- Flow at Rated Pressure0.1 - 3.9 l/min
- Max. Operating Pressure (bar)700
- Cylinder CompatabilitySingle or Double Acting
- Pump TypePedal Operated or Manual Valve
- Weight (kg)7 - 15
