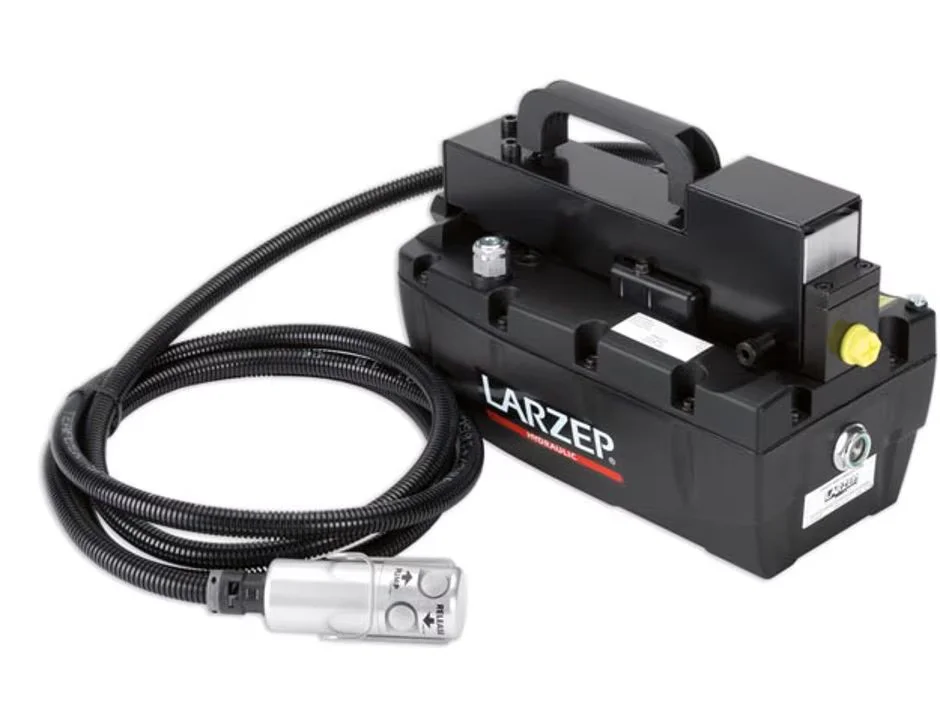

ZR-Series Air hydraulic pumps, remote pendant
Type
Usable Oil (L)
Downloads
Product Details
Specifications
Product Details
Product Details
ZR-Series
- Operation is controlled by a 3 metre remote pendant.
- 3/8"-NPT female hydraulic port.
- Working pressure 700 bar.
- Air Inlet Port: 1/4" BSP female.
- Air Pressure: 2,8 - 10 bar.
- Air Consumption: 400 N l/min.
- 700 bar Flow Rate: 0,14 l/min.
- Sound level: 75 dBA
Product Specifications
| Model Number | Acting Type | Oil Capacity (litres) | Weight (kg) |
|---|---|---|---|
| ZR12107 | Single Acting | 2,1 | 8,6 |
| ZR14007 | Single Acting | 4,0 | 13,5 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeAir Pumps
- Oil Capacity (litres)2.1 - 20
- Flow at Rated Pressure0.1 - 3.9 l/min
- Max. Operating Pressure (bar)700
- Cylinder CompatabilitySingle-acting
- Pump TypeRemote Pendant
- Weight (kg)7 - 15
