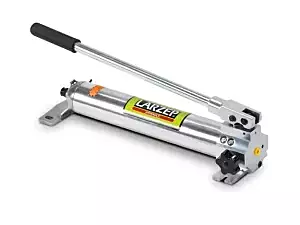

WA-Series Aluminum hydraulic hand pumps, for use with single acting tools
Usable Oil Capacity (cm3)
Downloads
Product Details
Specifications
Product Details
Product Details
WA series
- WA series pumps are for use with Single Acting cylinders.
- Lightweight aluminium pumps, ideal for easy portability and handling.
- Two speed models to provide rapid cylinder advance until contact is made with the load.
- Hydraulic outlet port: 3/8"-NPT female.
- Fitted with safety valves to prevent overpressure.
- Fitted with handle clip for ease of carrying.
Product Specifications
| Model Number | Acting Type | Speed | Stage 1 Pressure (bar) | Stage 2 Pressure (bar) | Usable Oil (cm³) | Weight (kg) |
|---|---|---|---|---|---|---|
| WA20507 | Single Acting | 2 | 20 | 700 | 400 | 3,7 |
| WA21107 | Single Acting | 2 | 20 | 700 | 810 | 5,0 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeHand Pumps
- Oil Capacity (litres)0.28 - 100
- Flow at Rated Pressure1 - 36 cm3/stroke
- Max. Operating Pressure (bar)25 - 1300
- Pressure Rating 1st Stage (bar)20
- Pressure Rating 2nd Stage (bar)700
- Cylinder CompatabilitySingle-acting
- Pump TypeTwo speed
- Oil Displacement Per Stroke 1st Stage (cm3)13.4 - 15
- Oil Displacement Per Stroke 2nd Stage (cm3)2.6 - 3.1
- Flow/Pressure Stages2 Stages
- Weight (kg)3 - 5
- MaterialAluminium
