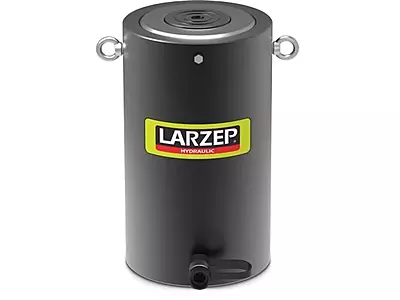

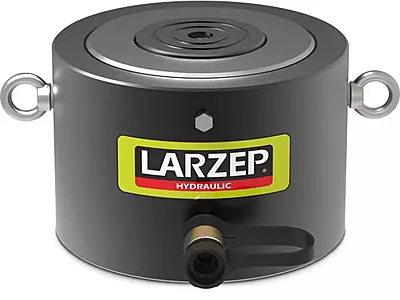

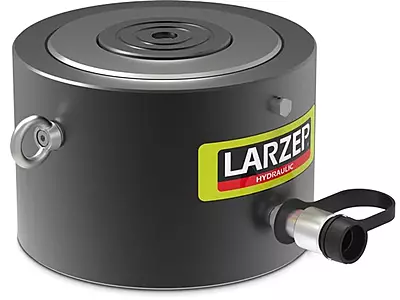

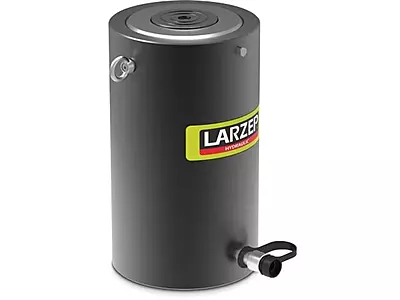

CPC-Series high-tonnage, single-acting hydraulic cylinders are engineered for weighing, lifting, and positioning in civil engineering, featuring a robust capacity of 50 to 1,000 tons and a Stroke Range of 50 mm to 300 mm at 700 bar, with a nickel-plated piston and end-of-stroke stopring for durability and safety
Capacity (metric tons)
Downloads
Product Details
Specifications
Product Details
Product Details

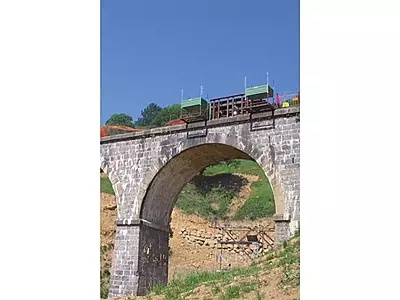

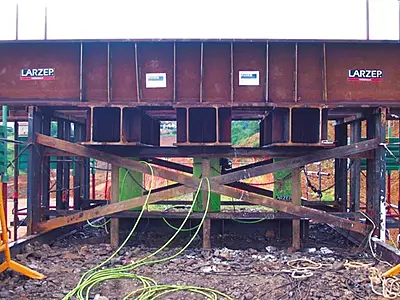

- Load return. For weighing, lifting and positioning applications in Civil Engineering.
- Mechanical end of stroke with stop ring
- For confined spaces and loads up to 150 Tn, see SSX and SSP models.
Product Specifications
| Model Number | Capacity (Ton) | Stroke (mm) | Closed Height (mm) | Oil Capacity (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| CPC05005 | 50 | 50 | 164 | 354 | 15 |
| CPC05015 | 50 | 150 | 264 | 1.063 | 23 |
| CPC05030 | 50 | 300 | 414 | 2.126 | 34 |
| CPC10005 | 100 | 50 | 187 | 664 | 29 |
| CPC10015 | 100 | 150 | 287 | 1.991 | 43 |
| CPC10030 | 100 | 300 | 437 | 3.982 | 64 |
| CPC15005 | 150 | 50 | 210 | 1.005 | 48 |
| CPC15015 | 150 | 150 | 310 | 3.016 | 69 |
| CPC15030 | 150 | 300 | 460 | 6.032 | 99 |
| CPC20005 | 200 | 50 | 222 | 1.405 | 71 |
| CPC20015 | 200 | 150 | 322 | 4.215 | 97 |
| CPC20030 | 200 | 300 | 472 | 8.429 | 138 |
| CPC30005 | 300 | 50 | 261 | 2.169 | 184 |
| CPC30015 | 300 | 150 | 361 | 6.506 | 232 |
| CPC30030 | 300 | 300 | 511 | 13.012 | 303 |
| CPC50005 | 500 | 50 | 308 | 3.653 | 379 |
| CPC50015 | 500 | 150 | 408 | 10.959 | 468 |
| CPC50030 | 500 | 300 | 558 | 21.918 | 601 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)50 - 1000
- Stroke (mm)50 - 300
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Load Return
- MaterialSteel
- Weight (kg)17 - 1305
