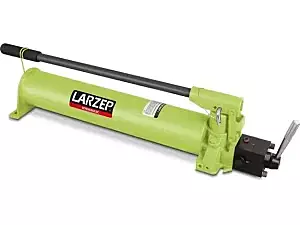

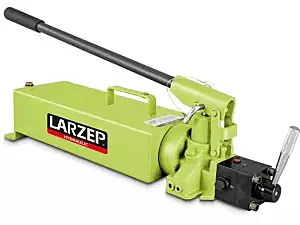

X-Series Hydraulic hand pumps, for use with double acting tools
Usable Oil Capacity (cm3)
Downloads
Product Details
Specifications
Product Details
Product Details
X-Series
- Fitted with 4-way 3 position valve for use with Double Acting cylinders
- Two speed, provides rapid cylinder advance until contact is made with the load
- 3/8"-NPTF female hydraulic port
- Internal safety valve to prevent overpressure

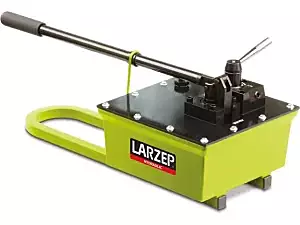

- X26507 have a rectangular tank.
- XP21007 model is foot pedal operated.
Product Specifications
| Model Number | Acting Type | Speed | Stage 1 Pressure (bar) | Stage 2 Pressure (bar) | Usable Oil (cm³) | Weight (kg) |
|---|---|---|---|---|---|---|
| X22607 | Double Acting | 2 | 27 | 700 | 2.600 | 14,3 |
| X24507 | Double Acting | 2 | 27 | 700 | 4.450 | 19,6 |
| X26507 | Double Acting | 2 | 28 | 700 | 6.500 | 26,3 |
| XP21007 | Double Acting (Foot) | 2 | 20 | 700 | 1.000 | 9,0 |
*X-series pumps are fitted with a 4-way 3-position control valve. Stage 1 is the low-pressure stage for rapid advance, and Stage 2 is the high-pressure stage for work.
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeHand Pumps
- Oil Capacity (litres)0.28 - 100
- Flow at Rated Pressure1 - 36 cm3/stroke
- Max. Operating Pressure (bar)25 - 1300
- Pressure Rating 1st Stage (bar)27 - 50
- Pressure Rating 2nd Stage (bar)700
- Cylinder CompatabilityDouble-acting
- Pump TypeTwo speed
- Oil Displacement Per Stroke 1st Stage (cm3)12 - 126
- Oil Displacement Per Stroke 2nd Stage (cm3)2 - 4.9
- Flow/Pressure Stages2 Stages
- Weight (kg)9 - 21
- MaterialSteel
