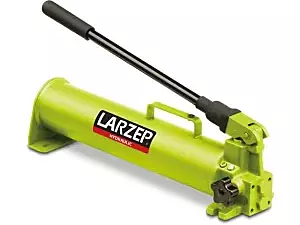

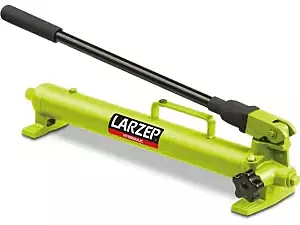

W-Series Hydraulic hand pumps, for use with single acting tools
Usable Oil Capacity (cm3)
Downloads
Product Details
Specifications
Product Details
Product Details
W-Series
- For use with Single Acting cylinders
- Two speed, provides rapid cylinder advance until contact is made with the load
- 3/8"-NPTF female hydraulic port
- Internal safety valve to prevent overpressure

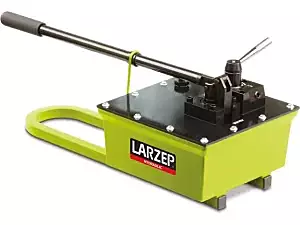

- W26507 have a rectangular tank.

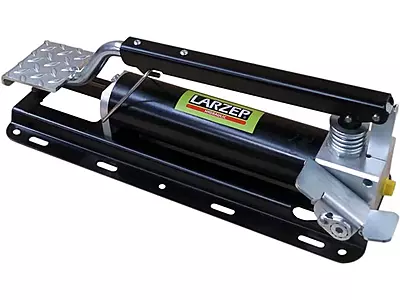

- WP21007 model is foot pedal operated.
Product Specifications
| Model Number | Acting Type | Speed | Stage 1 Pressure (bar) | Stage 2 Pressure (bar) | Usable Oil (cm³) | Weight (kg) |
|---|---|---|---|---|---|---|
| W10607 | Single Acting | 1 | - | 700 | 600 | 5.1 |
| W20307 | Single Acting | 2 | 27 | 700 | 345 | 2.9 |
| W20807 | Single Acting | 2 | 27 | 700 | 800 | 5.1 |
| W11407 | Single Acting | 1 | - | 700 | 1,400 | 7.2 |
| W21907 | Single Acting | 2 | 27 | 700 | 1,900 | 7.2 |
| W22607 | Single Acting | 2 | 27 | 700 | 2,600 | 12.5 |
| W24507 | Single Acting | 2 | 27 | 700 | 4,450 | 17.8 |
| W26507 | Single Acting | 2 | 28 | 700 | 6,500 | 25.0 |
| WP21007 | Single Acting (Foot) | 2 | 20 | 700 | 1,000 | 9.0 |
*Stage 1 Pressure refers to the low-pressure stage for rapid piston advance; Stage 2 is the high-pressure stage for the final application of force.
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeHand Pumps
- Oil Capacity (litres)0.28 - 100
- Flow at Rated Pressure1 - 36 cm3/stroke
- Max. Operating Pressure (bar)25 - 1300
- Pressure Rating 1st Stage (bar)27 - 50
- Pressure Rating 2nd Stage (bar)700
- Cylinder CompatabilitySingle-acting
- Pump TypeSingle speed - Two speed
- Oil Displacement Per Stroke 1st Stage (cm3)12 - 126
- Oil Displacement Per Stroke 2nd Stage (cm3)2 - 4.9
- Flow/Pressure Stages2 Stages
- Weight (kg)5 - 20
- MaterialSteel
