The Larzep CY Series offers compact hydraulic spreading solutions for industrial maintenance.

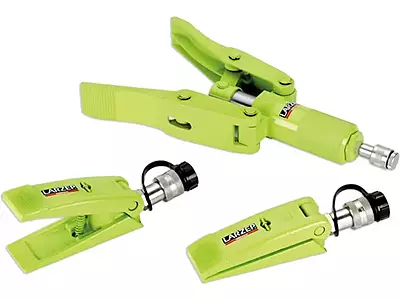

Wedge Spreaders (CY1501): With a 15-ton capacity and requiring only a 5mm access gap, this tool is essential for pipe and flange repair, seal replacement, and separating heavy machinery parts.
Spread Cylinders: Designed to lift and align equipment in confined spaces where standard jacks cannot fit.
Compatibility: Operates at 700 bar; compatible with all standard hydraulic hand and electric pumps.
Capacity ( Ton )
Downloads
Product Details
Product Details
Product Details
- CY series hydraulic spread cylinders are used for many tasks in confined access situations.
- CY0110 is used for very confined situations and CY0125 is used for greater spreading distance.
- CY0110 and CY0125 models are supplied with AZ3140 high flow female couplers.
Product Specifications
| Model Number | Capacity (ton) | Max. Pressure (bar) | Oil Capacity (cm³) | Stroke / Opening (mm) | Access Gap (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CY1501 | 15 | 700 | 16 | 47 | 5 | 3,2 |
| CY0110 | 1,0 | 700 | 10 | 75 | 15 | 2,0 |
| CY0125 | 0,6 | 700 | 64 | 255 | 35 | 11,0 |
*Detailed specifications are available in the technical datasheet.
