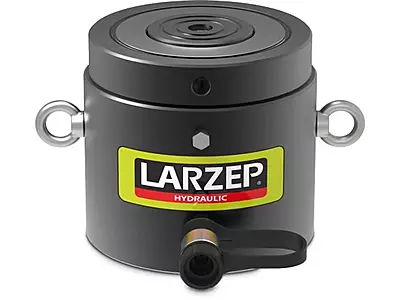

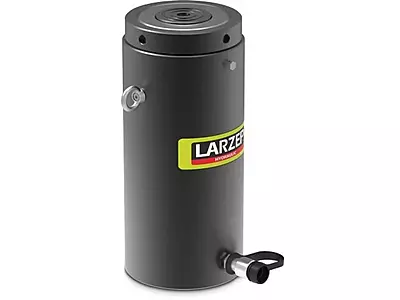

CTC provides a superior line of high-pressure hydraulic jacks and cylinders engineered in Europe for maximum power, precision, and safety. Built from high-strength alloy steel with hard chrome-plated pistons, these tools meet strict standards like ANSI-B30.1 / EN1494. Our range handles massive loads with a Tonnage Capacity from 50 to over 1000 tons and offers versatile operation with a Stroke Range from 50 mm up to 300 mm. Operating at a standard Maximum Pressure of 700 bar (10,000 psi), Larzep is the reliable choice for heavy industrial lifting, pushing, and pulling in construction, maintenance, and infrastructure.
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details

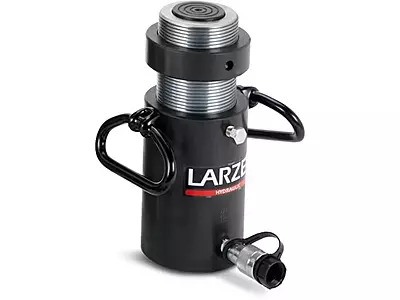

- The lock nut holds the load mechanically for extended periods of time.
- Hydraulic end of stroke overflow port. Red band warning.
- Coated base improves side load capacity

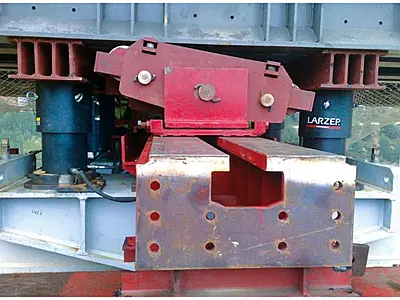

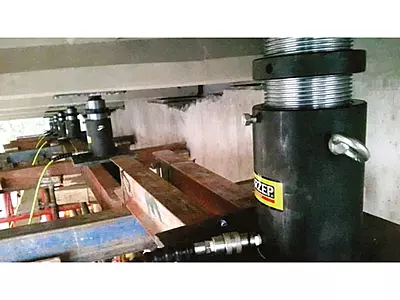

- Used for foundation supporting, bridge construction and shipbuilding.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)50 - 1000
- Stroke (mm)50 - 300
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Load Return
- MaterialSteel
- Weight (kg)15 - 1430
