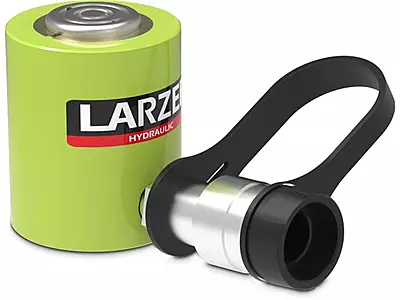

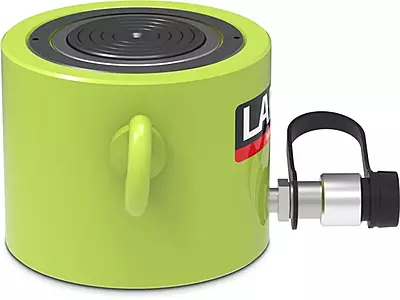

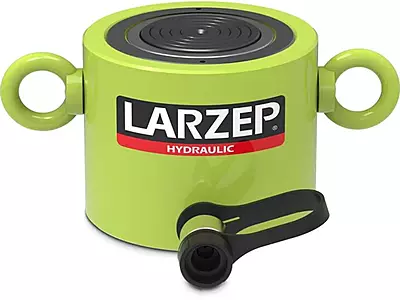

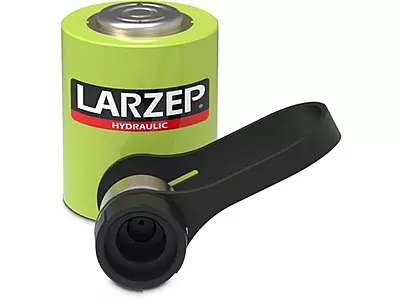

The SSP-Series Low Height Hydraulic Cylinders deliver exceptional lifting and pushing power specifically designed for confined spaces. Manufactured for heavy industries, construction, and maintenance, these single-acting cylinders feature a high-strength, pre-tensioned spring for rapid retraction. Their ultra-low profile makes them the perfect solution for machinery positioning, tool fastening, and structural load testing in restricted areas.
توفر الأسطوانات الهيدروليكية (جكات هيدروليكية) منخفضة الارتفاع من سلسلة SSP قوة رفع ودفع استثنائية مصممة خصيصاً للمساحات الضيقة. صُنعت هذه الأسطوانات أحادية الفعل للصناعات الثقيلة والبناء والصيانة، وتتميز بزنبرك عالي القوة مسبق الشد لضمان التراجع السريع. يجعلها تصميمها المنخفض للغاية الحل الأمثل لتوجيه الآلات، وتثبيت الأدوات، واختبارات التحميل الهيكلية في الأماكن المحدودة التي لا تتسع للأسطوانات القياسية.
Downloads
SSP Low Height Hydraulic Cylinders are constructed with a shorter cylinder body than others in the Larzep range. They offer a much longer stroke than our smaller SSX low profile models. These are single acting cylinders that include a pre-tensioned spring to return the plunger back to its lowest position.
- Low height hydraulic cylinders with capacities from 10 to 90 Tn, stroke up to 62 mm, rated for 700 bar.
- Single acting spring return configuration.
- Low profile for use in confined spaces: machinery positioning, tool fastening, load tests.
- Nickel plated piston with wiper seal to extend cylinder life.
- Optional tilt saddles available.
Product Specifications
| Model Number | Capacity (Ton) | Stroke (mm) | Closed Height (mm) | Oil Capacity (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| SSP01004 | 10 | 38 | 88 | 55 | 2.7 |
| SSP02004 | 20 | 45 | 98 | 129 | 5.0 |
| SSP03006 | 30 | 62 | 117 | 261 | 6.8 |
| SSP05006 | 45 | 60 | 122 | 373 | 10.0 |
| SSP10006 | 90 | 57 | 141 | 722 | 20.7 |
*Detailed specifications are available in the technical datasheet.
Hydraulic Cylinder Specification
- Capacity (metric tons)10 - 100
- Stroke (mm)38 - 62
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Spring Return
- MaterialSteel
- Weight (kg)3 - 20
