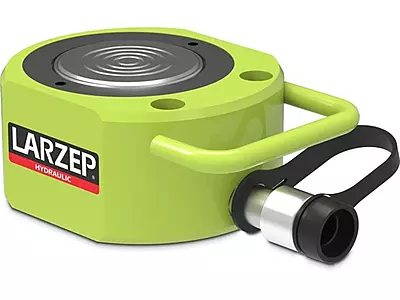

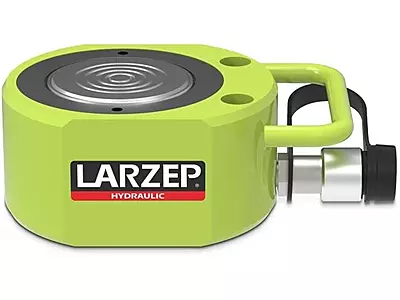

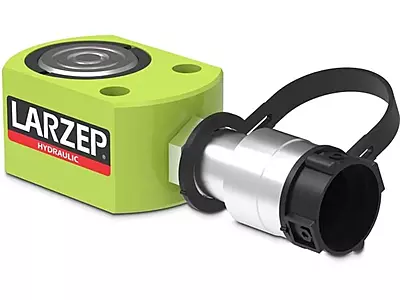

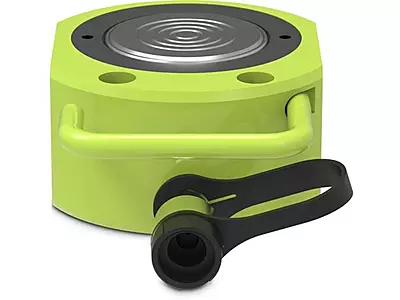

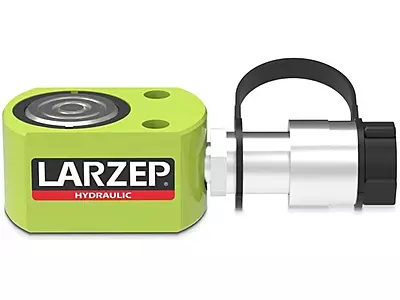

SSX Low Profile Hydraulic Cylinders are ideal for applications in very confined spaces requiring a short stroke. These single-acting cylinders feature a pre-tensioned spring for quick plunger retraction.
Capacity (metric tons)
Downloads
Product Details
Specifications
Product Details
Product Details
SSX low profile pancake cylinders have a short cylinder body to fit into very tight spaces. These single-acting cylinders include a pre-tensioned spring to return the plunger back to its lowest position.
- Low height hydraulic cylinders with a capacity from 5 to 150 Tn, stroke up to 16 mm, rated for 700 bar.
- For use in confined spaces: machinery positioning, tool fastening.
- With two parallel faces for horizontal operation.
- Mounting bolt holes for easy fixing.
- Nickel plated piston with wiper seal to extend cylinder life.
Product Specifications
| Model Number | Capacity (Ton) | Stroke (mm) | Closed Height (mm) | Oil Capacity (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| SSX00406 | 5 | 6 | 32 | 4 | 1.0 |
| SSX00416 | 5 | 16 | 41 | 10 | 1.0 |
| SSX01011 | 10 | 11 | 43 | 18 | 1.4 |
| SSX02211 | 20 | 11 | 51 | 32 | 3.1 |
| SSX03013 | 30 | 13 | 58 | 55 | 4.5 |
| SSX05016 | 45 | 16 | 66 | 99 | 6.8 |
| SSX07516 | 75 | 16 | 79 | 164 | 11.3 |
| SSX10016 | 90 | 16 | 85 | 203 | 14.5 |
| SSX15016 | 150 | 16 | 100 | 317 | 26.3 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)5 - 150
- Stroke (mm)6 - 16
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Spring Return
- MaterialSteel
- Weight (kg)1 - 27
