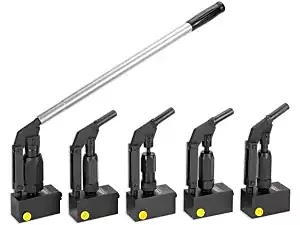

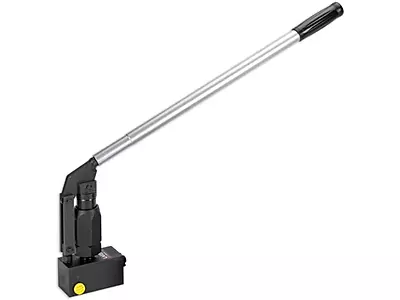

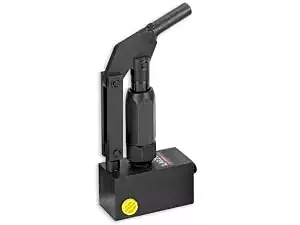

WI-Series Modular hydraulic hand pumps
Maximum Operating Pressure (bar)
Downloads
Product Details
Specifications
Product Details
Product Details
WI-Series
- Lightweight with tapped holes in the base for easy mounting.
- Black nitrided.
- Designed for use with external reservoirs.
- Operating lever included.
- Tank is not included.
Product Specifications
| Working Pressure (bar) | Model Number | Max. Pressure (bar) | Piston Ø (mm) | Oil per Stroke (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| 700 | WI1400 | 1.400 | 10 | 3 | 5,3 |
| 400 | WI700 | 700 | 13 | 4 | 5,8 |
| 200 | WI210 | 300 | 19 | 10 | 5,3 |
| 100 | WI100 | 200 | 26 | 18 | 5,7 |
| 40 | WI040 | 80 | 38 | 36 | 7,0 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Pumps
- TypeModular Hand Pumps
- Flow at Rated Pressure3 - 36 cm3/stroke
- Max. Operating Pressure (bar)40 - 700
- Pump TypeTankless
- Oil Displacement Per Stroke 2nd Stage (cm3)3 - 36
- Weight (kg)5 - 7
