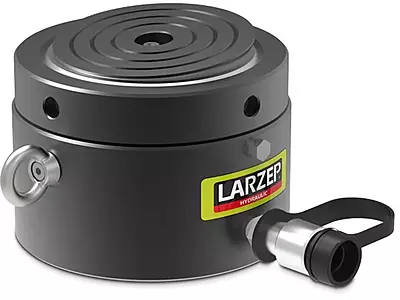

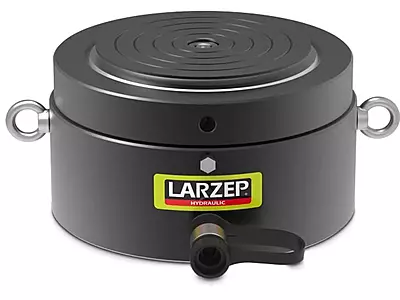

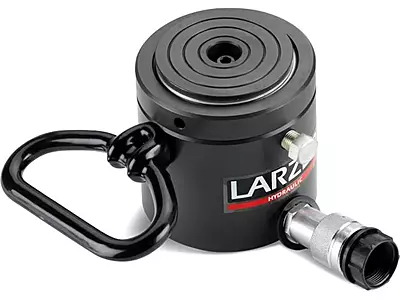

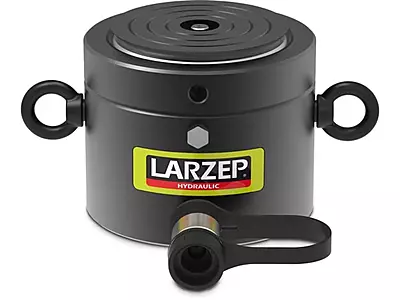

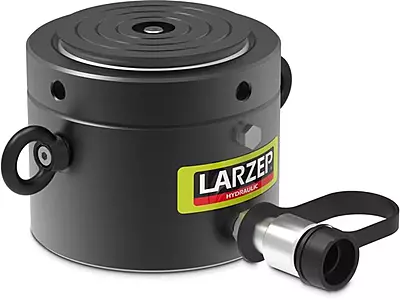

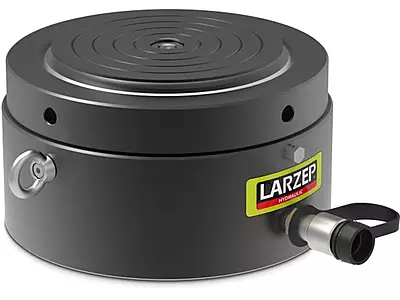

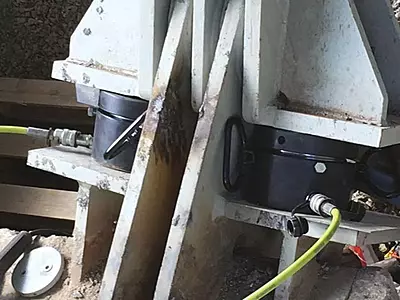

The Larzep CTX-Series hydraulic cylinders are Single-Acting, Pancake Locknut jacks featuring a built-in tilting saddle and a nickel-plated piston designed for maximum safety in heavy industrial applications like foundation supporting and bridge construction, offering a Tonnage Capacity from 50 to 500 tons and a Stroke Range up to 50 mm at 700 bar
Capacity (metric tons)
Downloads
Product Details
Specifications
Product Details
Product Details
- The lock nut holds the load mechanically for extended periods of time.
- Hydraulic end of stroke overflow port. Without stop ring. Red band warning.
- Built-in tilting saddle to improve side load resistance.
- Coated base to improve side load resistance
- Used in confined spaces
Product Specifications
| Model Number | Capacity (Ton) | Stroke (mm) | Closed Height (mm) | Oil Capacity (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| CTX06005 | 60 | 50 | 125 | 432 | 15 |
| CTX10005 | 100 | 50 | 137 | 734 | 26 |
| CTX15005 | 150 | 45 | 148 | 894 | 41 |
| CTX20005 | 200 | 45 | 155 | 1.195 | 58 |
| CTX25005 | 250 | 45 | 159 | 1.647 | 74 |
| CTX40005 | 400 | 45 | 178 | 2.576 | 134 |
| CTX50005 | 500 | 45 | 192 | 3.287 | 185 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)60 - 500
- Stroke (mm)45 - 50
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Load Return
- MaterialSteel
- Weight (kg)15 - 90
