DM-Series are double acting production cylinders for push and pull applications.
Capacity (metric tons)
Downloads
Product Details
Specifications
Product Details
Product Details

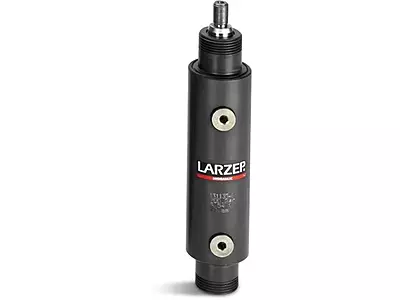

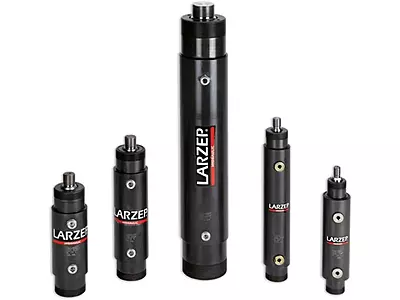

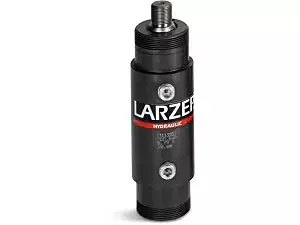

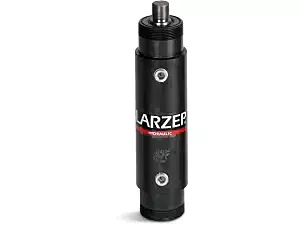

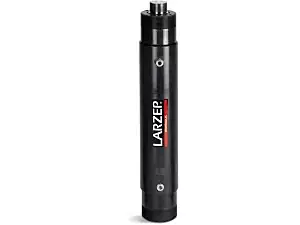

DM-Series Hydraulic Cylinders are available in many different configurations with a choice of various stroke and tonnage options. These robust production cylinders are double-acting to carry out push and pull applications.
Engineered for high cycle use and featuring a tough nitrided finish, all DM Cylinders are designed to keep your production operations running smoothly and efficiently.
- Double acting operation for carrying out push and pull operations
- Tough black nitrided coating for corrosion resistance
- Engineered for a long life in production applications
- Plunger wiper reduces contamination, extending cylinder life Large range of mounting accessories: flanges, mounting blocks, nuts and clevis eyes.
Product Specifications
| Model Number | Capacity (Ton) | Stroke (mm) | Closed Height (mm) | Oil Capacity (cm³) | Weight (kg) |
|---|---|---|---|---|---|
| DM00403 | 4 | 28 | 186 | 14 | 2.0 |
| DM00408 | 4 | 79 | 237 | 39 | 2.4 |
| DM00416 | 4 | 155 | 313 | 76 | 3.0 |
| DM00803 | 8 | 28 | 223 | 35 | 3.7 |
| DM00808 | 8 | 79 | 274 | 99 | 4.5 |
| DM00816 | 8 | 155 | 350 | 195 | 5.8 |
| DM00826 | 8 | 257 | 452 | 323 | 7.8 |
| DM01516 | 15 | 159 | 389 | 323 | 8.6 |
| DM01526 | 15 | 260 | 490 | 527 | 11.6 |
| DM02316 | 23 | 159 | 425 | 527 | 12.5 |
| DM02326 | 23 | 260 | 526 | 863 | 16.3 |
*Detailed specifications are available in the technical datasheet.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)4 - 23
- Stroke (mm)28 - 260
- Maximum Operating Pressure (bar)700
- Return TypeDouble Acting Hydraulic Return
- MaterialSteel
- Weight (kg)2 - 21
