TE-TD Pull Hydraulic Cylinders are ideal for applications such as joining plates for welding, and tensioning cables. These are single acting are designed specifically for pulling applications.
Type
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details

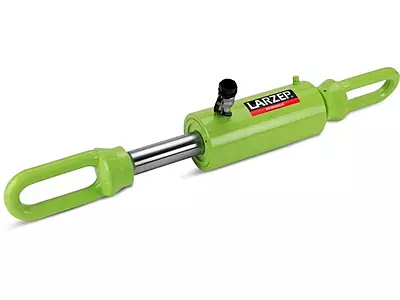

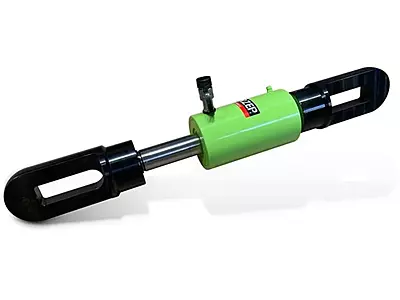

Larzep TE Pull Hydraulic Cylinders are ideal for pulling applications such as cable and bar tensioning. These single acting hydraulic cylinders are available in 10, 30, and 50 tonnage capacities. Each includes a powerful pre-compressed spring to return the plunger to its extended position.
Each cylinder is manufactured using advanced technologies while following quality system processes meeting the standards of UNE-EN ISO 9001:200815
- Capacities from 10 to 50 ton, with 150 mm stroke.
- TE models are Spring Return.
- TD models are Double Acting.
- Hard chromed piston

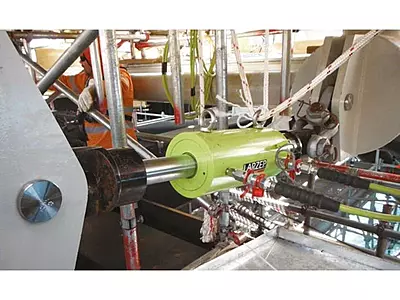

- For pulling applications: to hook and join plates for welding, tensioning cables, and more.
- All units load tested under 125% of the nominal capacity.
- Female AZ3140 coupling with rubber dust cap included.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)10 - 50
- Stroke (mm)150
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Spring Return
- MaterialSteel
- Weight (kg)15 - 60
