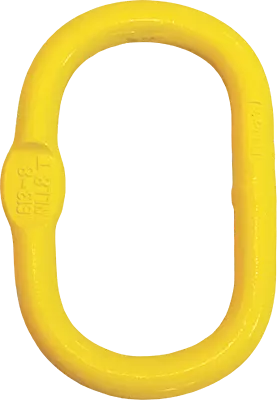

The PROlift PRO-OS Master Link is a premium Grade 80 accessory designed for the top of lifting sets to securely connect one- or two-leg chain, wire rope, or textile sling systems to upper clamping systems like crane hooks. Manufactured to EN 1677-4 standards with a reliable 4:1 Safety Factor, these CE-marked master links guarantee maximum rigging security. Discover more in our lifting chains and accessories collection.
حلقة الرفع الرئيسية PROlift PRO-OS هي ملحق عالي الجودة من الدرجة 80 مصمم لقمة مجموعات الرفع لربط الجنازير أو الحبال السلكية أو رافعات البوليستر ذات الذراع الواحد أو المزدوج بأنظمة التعليق العلوية (مثل خطافات الونش) بأمان تام. صُنعت وفقاً لمعايير EN 1677-4 بمعامل أمان 4:1، وتتميز بعلامة CE لضمان أقصى درجات الموثوقية. تصفح المزيد ضمن قسم سلاسل وملحقات الرفع لدينا.
Downloads
Key Engineering Features:

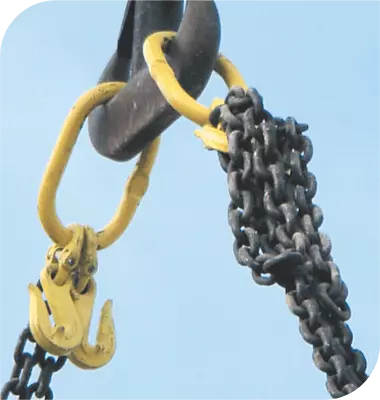

- Top Assembly Component: Designed to sit securely at the top of lifting sets, fixing the legs of your slings to the crane hook or upper clamping system.
- Rigging Versatility: Specifically engineered to be used with 1-leg or 2-leg chain, wire rope, or textile webbing sling systems.
- Rigorous Safety Standard: Manufactured to EN 1677-4 standard specifications with a 4:1 Safety Factor (Minimum Breaking Load is strictly 4 times the WLL).
- Fully Traceable & Certified: Every master link is permanently batch numbered, size stamped, manufacturer marked, and CE certified for full compliance and safe inspections.
المميزات التقنية الرئيسية:
- مكون التجميع العلوي: مصممة للتركيب في قمة مجموعات الرفع لتثبيت أذرع الرفع بخطافات الرافعات أو أنظمة التعليق العلوية بإحكام.
- مرونة تطبيقات الرفع: مصممة خصيصاً للاستخدام مع أنظمة الجنازير أو الحبال السلكية أو أحزمة البوليستر ذات الذراع الواحد (1-leg) أو الذراعين (2-legs).
- معايير أمان صارمة: مُصنعة وفقاً للمواصفة القياسية الأوروبية EN 1677-4 بمعامل أمان 4:1 (الحد الأدنى لحمل الكسر يعادل 4 أضعاف حد حمل العمل).
- قابلية التتبع والاعتماد: كل حلقة مميزة بوضوح برقم التشغيلة، المقاس، شعار الشركة المصنعة، وعلامة CE لضمان الامتثال الصارم لاشتراطات السلامة والفحص.
Performance Specifications / مواصفات الأداء
| Model Number | WLL (t) | MBL (t) | Weight (kg/pc) |
|---|---|---|---|
| PRO-OS-01.60 | 1.6 | 6.4 | 0.34 |
| PRO-OS-02.12 | 2.12 | 8.48 | 0.54 |
| PRO-OS-03.15 | 3.15 | 12.6 | 0.82 |
| PRO-OS-05.30 | 5.3 | 21.2 | 1.5 |
| PRO-OS-08.00 | 8 | 32 | 2.32 |
| PRO-OS-11.20 | 11.2 | 44.8 | 3.95 |
| PRO-OS-14.00 | 14 | 56 | 6.34 |
| PRO-OS-17.00 | 17 | 68 | 8.96 |
| PRO-OS-21.20 | 21.2 | 84.8 | 12.8 |
| PRO-OS-31.50 | 31.5 | 126 | 16.55 |
| PRO-OS-45.00 | 45 | 180 | 23.28 |
| PRO-OS-56.00 | 56 | 224 | 20.54 |
| PRO-OS-70.00 | 70 | 280 | 26.15 |
| PRO-OS-90.00 | 90 | 360 | 42.45 |
| PRO-OS-100.00 | 100 | 400 | 57.14 |
* WLL: Working Load Limit for lifting operations.
* MBL: Minimum Breaking Load (Safety Factor 4:1).
*Detailed physical dimensions are available in the official technical datasheet.
