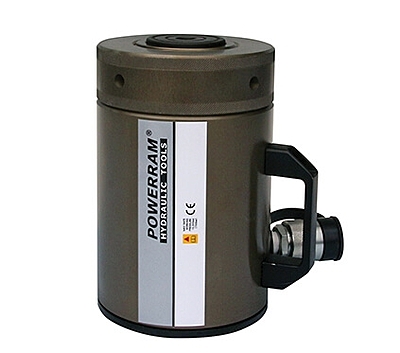

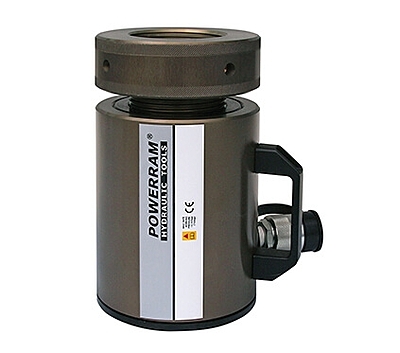

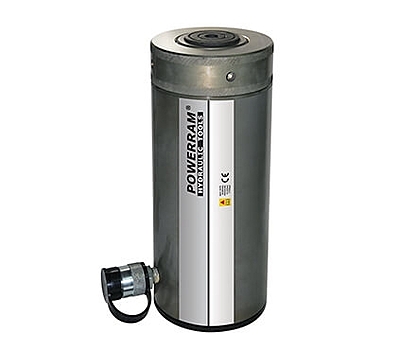

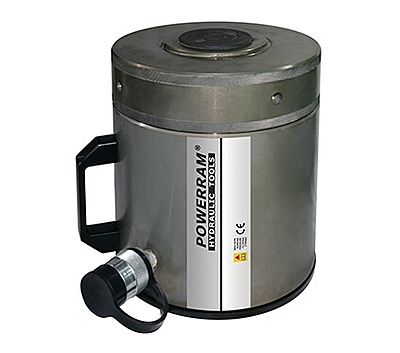

ALNC-Series
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details
- Half weight of steel cylinders
- Heavy duty spring for easy and full retraction
- Carry handles are standard for all models.
- Hard-Anodized housing and piston reduce wear and corosion.
- Rod wiper protects inner rod from dirt.
- Stop ring provides blow-out protection for piston.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)20 - 100
- Stroke (mm)50 - 250
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Spring Return
- MaterialAluminium
- Weight (kg)3 - 40
