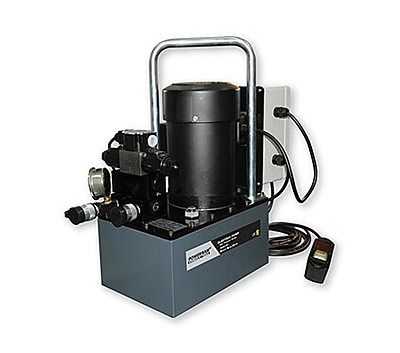

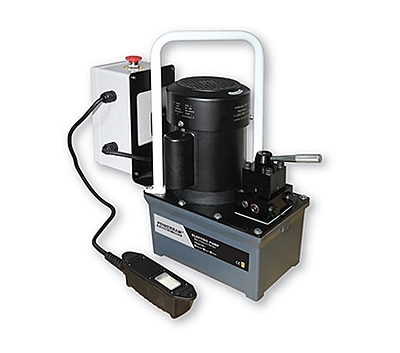

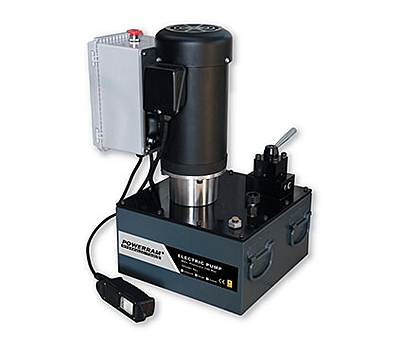

EP-Series
Reservoir Capacity (L)
Product Details
Specifications
Product Details
Product Details
- Original pumps are built with 1/2 HP, 220V, 50/60Hz, Single phases or 1.48kW, 220/380V, 50/60Hz, 3 phases universal brushless motor.
- Internal relief valve (700 bars) protects the components and work safety.
- Pumps are included with 24V, 3 meters remote control cord.
- Quiet pumps comply OSHA noise limitation (80dBA at 700bar).
- EP13D specially designed for double-acting cylinders without the need for additional control valve and adapters.
- Conform to CE standards.
- Both models are available with Solenoid Valve version.
Specifications
Specifications
Hydraulic Pumps
- TypeElectric Pumps
- Oil Capacity (litres)3 - 100
- Max. Operating Pressure (bar)700
- Cylinder CompatabilitySingle or Double Acting
- Pump TypeSolenoid Valve
- Voltage System1Ph/230V/50Hz or 3Ph/400V/50Hz
- Reservoir Capacity3 - 100L
- Weight (kg)27 - 240
- MaterialSteel
