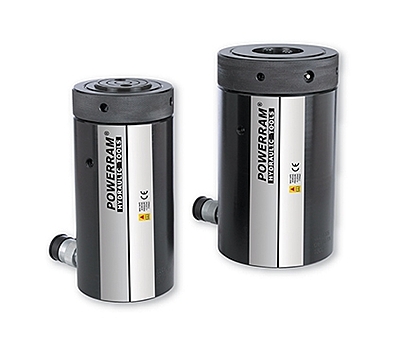

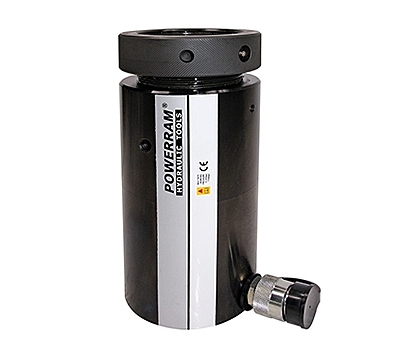

JLLC-Series
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details
- Single-acting, Load return
- Safety Lock Nut for mechanical load holding.
- Chrome plated for preventing corrosion and lower friction for smoother operation.
- Withstands side load forces up to 5% of rated cylinder capacity without scoring.
- Overflow port for piston protection.
- Interchangeable, hardened, grooved saddle are standard.
- High flow coupler and dust cap included on all models.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)50 - 1000
- Stroke (mm)50 - 300
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Load Return
- MaterialSteel
- Weight (kg)15 - 1430
