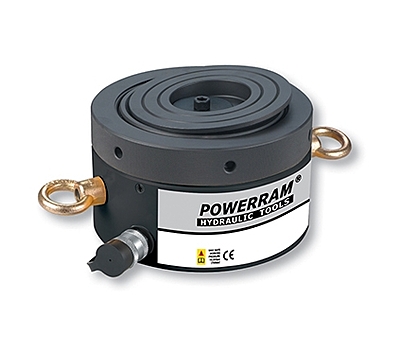

JLPC-Series
Capacity (metric tons)
Product Details
Specifications
Product Details
Product Details
- Extremely low height for use in confined areas
- Single-acting, load return.
- Lock nut for positive and safe load holding over a long period of time.
- Chrome plated for preventing corrosion and lower friction for smoother operation.
- Withstands side load forces up to 3% of rated cylinder capacity without scoring.
- Overflow port functions are a stroke limiter.
- High flow coupler and dust cap included on all models.
Specifications
Specifications
Hydraulic Cylinder Specification
- Capacity (metric tons)60 - 250
- Stroke (mm)45 - 50
- Maximum Operating Pressure (bar)700
- Return TypeSingle Acting Load Return
- MaterialSteel
- Weight (kg)28 - 44
