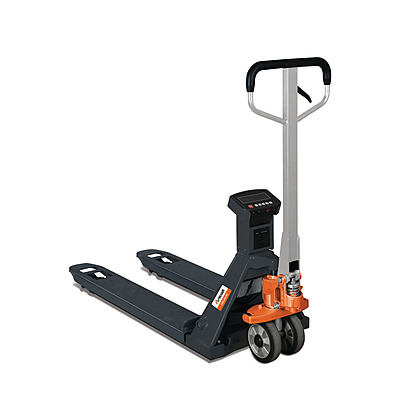

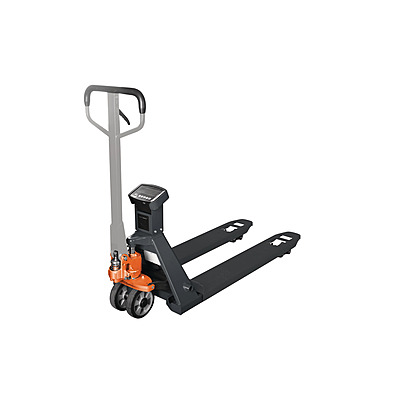

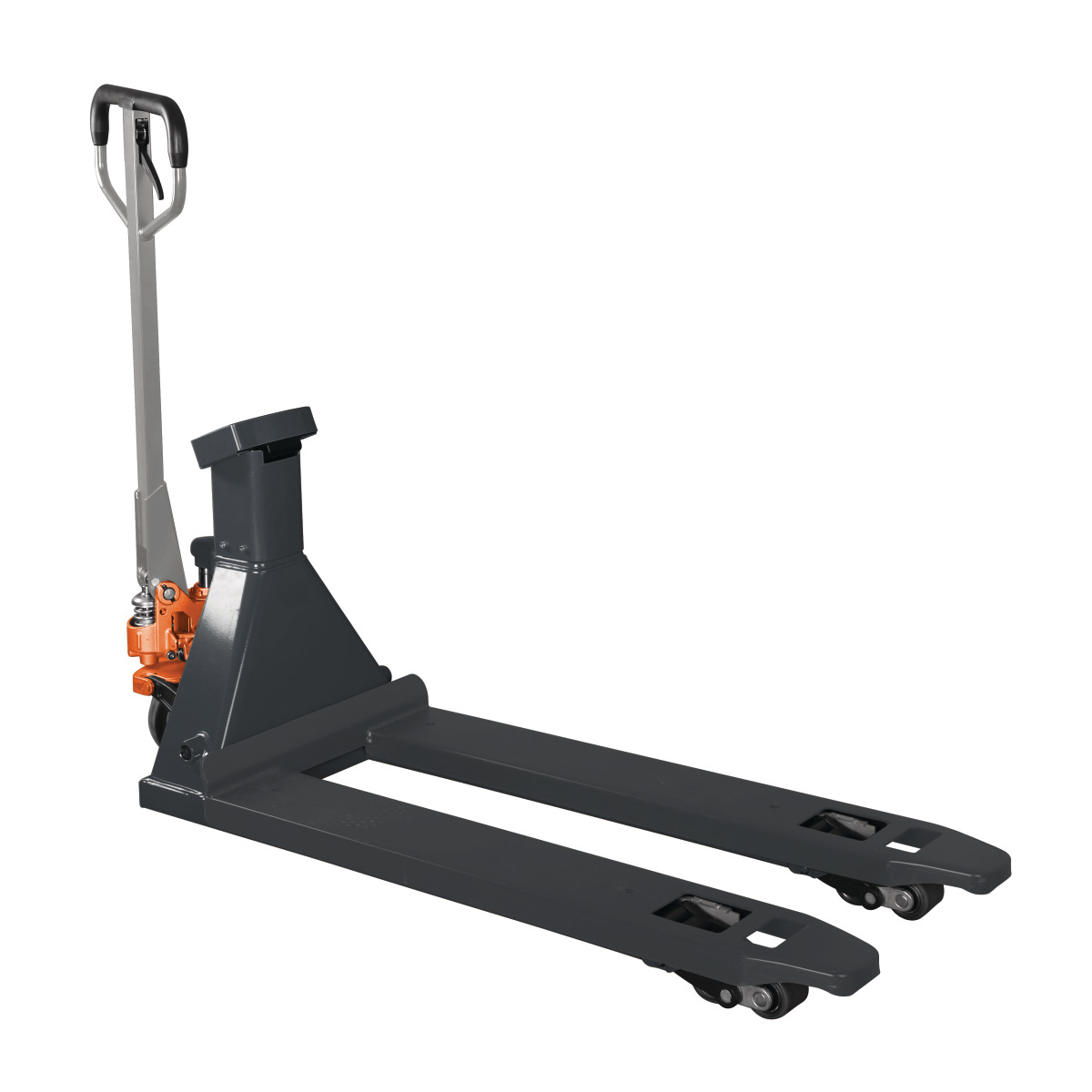

The UNICRAFT PHW 2500 WP is a heavy-duty 2.5 t lifting device equipped with aluminium and rubber steering rollers and polyurethane (PU) tandem fork rollers, designed for efficient material handling in warehouses, logistics centres, and workshops. It features forks measuring 1150 mm in length with an overall width of 570 mm, offering a lifting range of 85 – 200 mm. This model integrates electronic scales and a printer for precise weight management and documentation, enhancing operational efficiency with an intuitive control panel and easy pallet handling.
عربة طبلية يدوية UNICRAFT PHW 2500 WP هي جهاز رفع للخدمة الشاقة بقدرة حمولة 2.5 طن، مزودة ببكرات توجيه من الألومنيوم والمطاط وبكرات شوكة ترادفية (tandem) من البولي يوريثان (PU)، مصممة للمناولة الفعالة للمواد في المستودعات ومراكز الخدمات اللوجستية وورش العمل. تتميز بشوكات بطول 1150 مم وعرض الشوكة الإجمالي 570 مم، وتوفر نطاق رفع يتراوح من 85 إلى 200 مم. يدمج هذا الطراز موازين إلكترونية وطابعة لإدارة الوزن والتوثيق بدقة، مما يعزز الكفاءة التشغيلية بفضل لوحة التحكم البديهية وسهولة مناولة الطبالي.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features
الميزات الهندسية الرئيسية
- Robust 2.5 t load capacity with integrated electronic scales for precise weighing up to 2500 kg and a minimum weight of 20 kg.
- Optimized fork dimensions with a length of 1150 mm and an overall load-bearing width of 570 mm for versatile pallet handling.
- Efficient lifting range from 85 mm to 200 mm, requiring ≤13 strokes to reach the upper position.

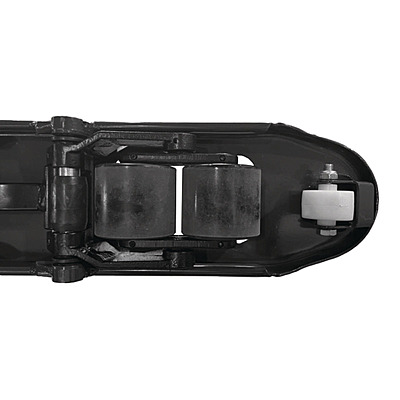

- Smooth manoeuvring with aluminium steering rollers featuring solid rubber treads (diameter 180 mm, width 50 mm) and durable polyurethane (PU) tandem fork rollers (diameter 80 mm, width 70 mm).

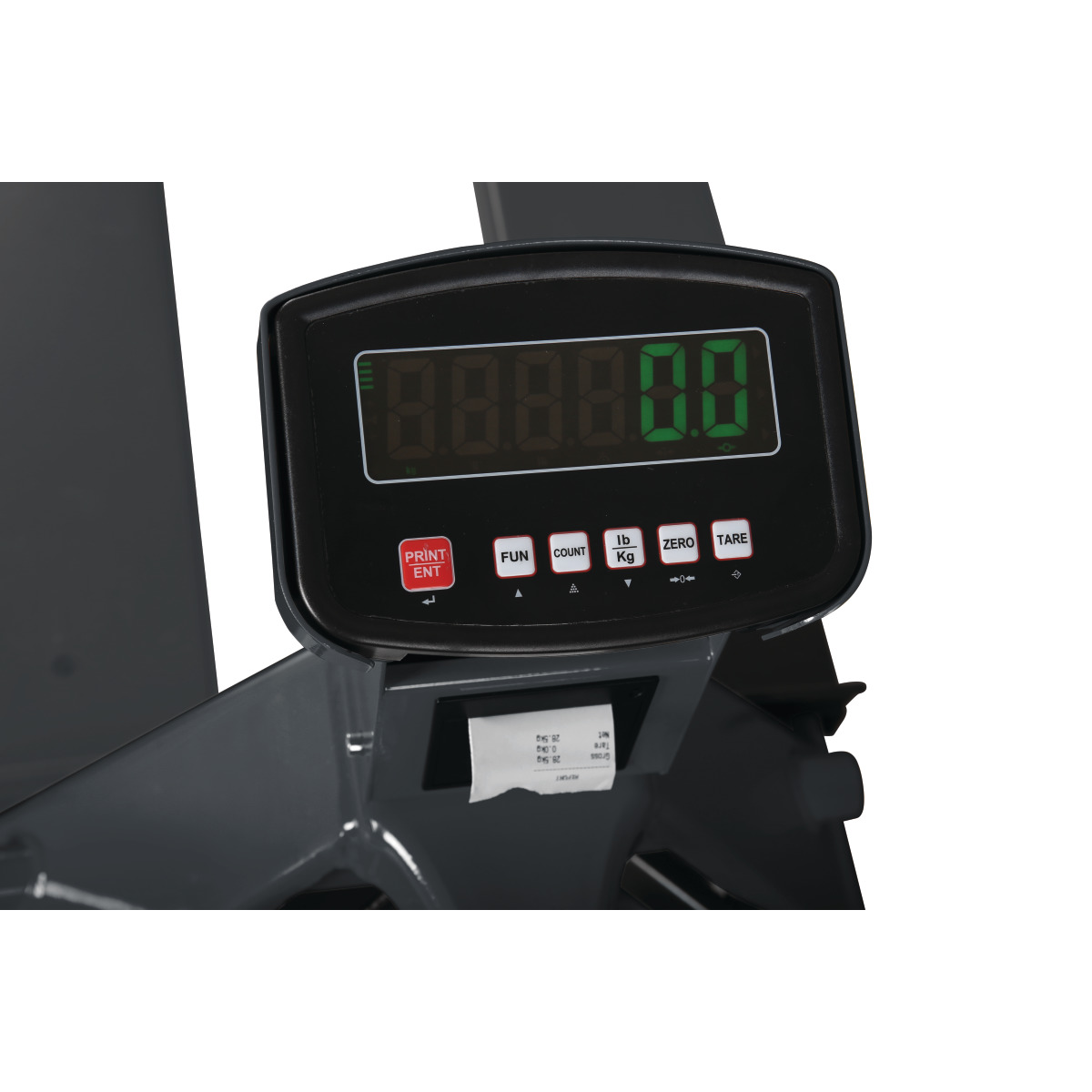

- Integrated infeed and outfeed rollers for easy pallet pick-up and delivery, complemented by an intuitive control panel with tare, zero, and counting functions.
- Designed for reliability in diverse environments, operating effectively in temperatures from -10°C to 40°C with IP 54 protection class.
- Extended operating time of 72 hours on a single charge, powered by a built-in 6 V, 4 Ah battery, requiring only 6-8 hours for a full recharge.
- Compact overall dimensions of approximately 1550 mm (L) × 570 mm (W) × 1200 mm (H) and a net weight of approximately 90 kg.
- Includes a thermal roll (57 x 40 x 15 mm) for the integrated printer and comes with a 1-year Stürmer manufacturer warranty.
- قدرة حمولة قوية تبلغ 2.5 طن مع موازين إلكترونية مدمجة للوزن الدقيق حتى 2500 kg ووزن أدنى 20 kg.
- أبعاد شوكة محسّنة بطول 1150 مم وعرض حمولة إجمالي 570 مم لمناولة الطبالي المتنوعة.
- نطاق رفع فعال من 85 مم إلى 200 مم، يتطلب ≤13 ضربة للوصول إلى الوضع العلوي.
- مناورة سلسة بفضل بكرات التوجيه المصنوعة من الألومنيوم مع مداسات مطاطية صلبة (قطر 180 مم، عرض 50 مم) وبكرات شوكة ترادفية (tandem) متينة من البولي يوريثان (PU) (قطر 80 مم، عرض 70 مم).
- بكرات تغذية وإخراج مدمجة لسهولة التقاط الطبالي وتسليمها، تكملها لوحة تحكم بديهية بوظائف الوزن الفارغ، نقطة الصفر، ووظيفة العد.
- مصمم للموثوقية في بيئات متنوعة، يعمل بفعالية في درجات حرارة تتراوح من -10°C إلى 40°C مع فئة حماية IP 54.
- وقت تشغيل ممتد يصل إلى 72 ساعة بشحنة واحدة، مدعوم ببطارية مدمجة 6 V، 4 Ah، تتطلب 6-8 ساعات فقط لإعادة الشحن الكامل.
- أبعاد إجمالية مدمجة تقريبًا 1550 مم (طول) × 570 مم (عرض) × 1200 مم (ارتفاع) ووزن صافي تقريبي 90 kg.
- يتضمن لفة حرارية (57 x 40 x 15 مم) للطابعة المدمجة ويأتي مع ضمان مصنعي من Stürmer لمدة سنة واحدة.
Please Request a Quote for pricing and availability.
يرجى طلب عرض سعر للحصول على التفاصيل والتوافر.
