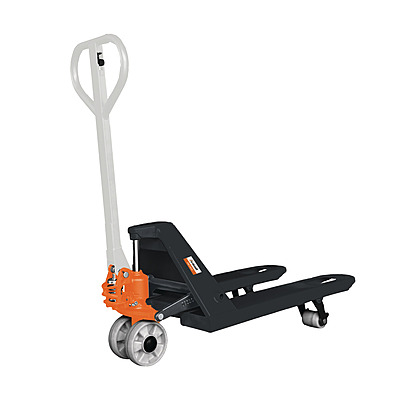

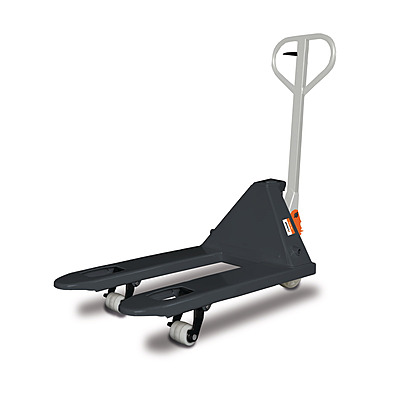

The UNICRAFT PHW 2508 EF is a heavy-duty 2 t lifting device equipped with nylon steering and single nylon fork rollers, designed for efficient material handling in warehouses, logistics centres, and workshops. It features forks measuring 1150 mm in length and 160 mm in width, with a versatile lifting range of 75 – 190 mm. Its robust steel frame, smooth-running hydraulic lift system with a sensitive lowering valve, and ergonomic drawbar ensure safe and easy operation.
عربة طبلية يدوية UNICRAFT PHW 2508 EF هي جهاز رفع للخدمة الشاقة بقدرة حمولة 2 طن، مجهزة ببكرات توجيه من النايلون وبكرات شوكة مفردة من النايلون، مصممة للمناولة الفعالة للمواد في المستودعات ومراكز الخدمات اللوجستية وورش العمل. تتميز بشوكات بطول 1150 مم وعرض 160 مم، مع نطاق رفع متعدد الاستخدامات من 75 إلى 190 مم. يضمن إطارها الفولاذي المتين، ونظام الرفع الهيدروليكي السلس مع صمام خفض حساس، ومقبض السحب المريح، التشغيل الآمن والسهل.
Pricing Note: Prices are indicative and include 16% VAT. Please contact our sales team for an official quotation.
ملاحظة الأسعار: الأسعار تقديرية وتشمل ضريبة مبيعات بنسبة 16%. يرجى التواصل مع فريق المبيعات للحصول على عرض سعر رسمي.
Downloads
Key Engineering Features
الميزات الهندسية الرئيسية
- Impressive 2 t load capacity for handling heavy pallets and goods.
- Robust forks with a length of 1150 mm and a width of 160 mm.
- Versatile lifting range from 75 mm to 190 mm, with 13 mm stroke per pump action.

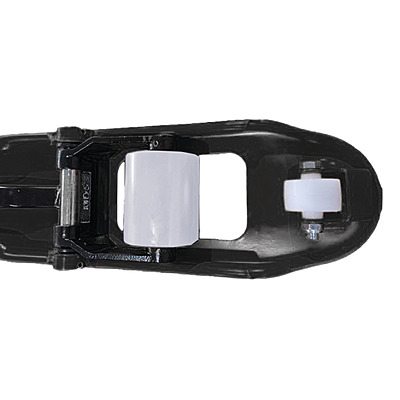

- Smooth movement facilitated by durable nylon steering rollers (Ø 160 mm) and single nylon fork rollers (Ø 70 mm).

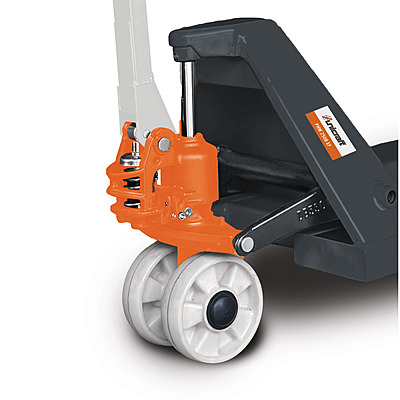

- Smooth-running hydraulic pump with hard chrome-plated piston and pressure relief valve for reliable operation.
- Very stable and torsion-resistant steel frame and fork in robust shell construction.
- Ergonomically shaped drawbar with a one-hand lever for lifting, lowering, and neutral positions, plus a standard foot lowering lever.
- Compact dimensions of 1540 mm (L) x 550 mm (W) x 1175 mm (H) and a net weight of 52 kg.

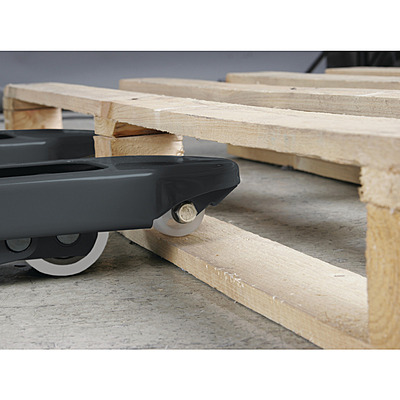

- Equipped with robust ball bearings in all wheels and infeed rollers for easy pallet entry. Backed by a 1-year Stürmer manufacturer warranty.
- قدرة حمولة مذهلة تبلغ 2 طن لمناولة الطبالي والبضائع الثقيلة.
- شوكات متينة بطول 1150 مم وعرض 160 مم.
- نطاق رفع متعدد الاستخدامات من 75 مم إلى 190 مم، مع شوط 13 مم لكل ضغطة مضخة.
- حركة سلسة بفضل بكرات التوجيه المتينة من النايلون (بقطر 160 مم) وبكرات الشوكة المفردة من النايلون (بقطر 70 مم).
- مضخة هيدروليكية سلسة التشغيل مع مكبس مطلي بالكروم الصلب وصمام تخفيف الضغط لتشغيل موثوق.
- إطار وشوكة فولاذية مستقرة للغاية ومقاومة للالتواء بتصميم هيكلي متين.
- مقبض سحب مصمم هندسيًا مع ذراع تحكم بيد واحدة لأوضاع الرفع والخفض والوضع المحايد، بالإضافة إلى ذراع خفض بالقدم قياسي.
- أبعاد مدمجة 1540 مم (طول) × 550 مم (عرض) × 1175 مم (ارتفاع) ووزن صافي 52 كجم.
- مجهزة بمحامل كروية قوية في جميع العجلات وبكرات إدخال لسهولة دخول الطبالي. مدعومة بضمان مصنعي من Stürmer لمدة سنة واحدة.
Please Request a Quote for pricing and availability.
يرجى طلب عرض سعر للحصول على التفاصيل والتوافر.
Technical Data
- Stroke per pump action13 mm
